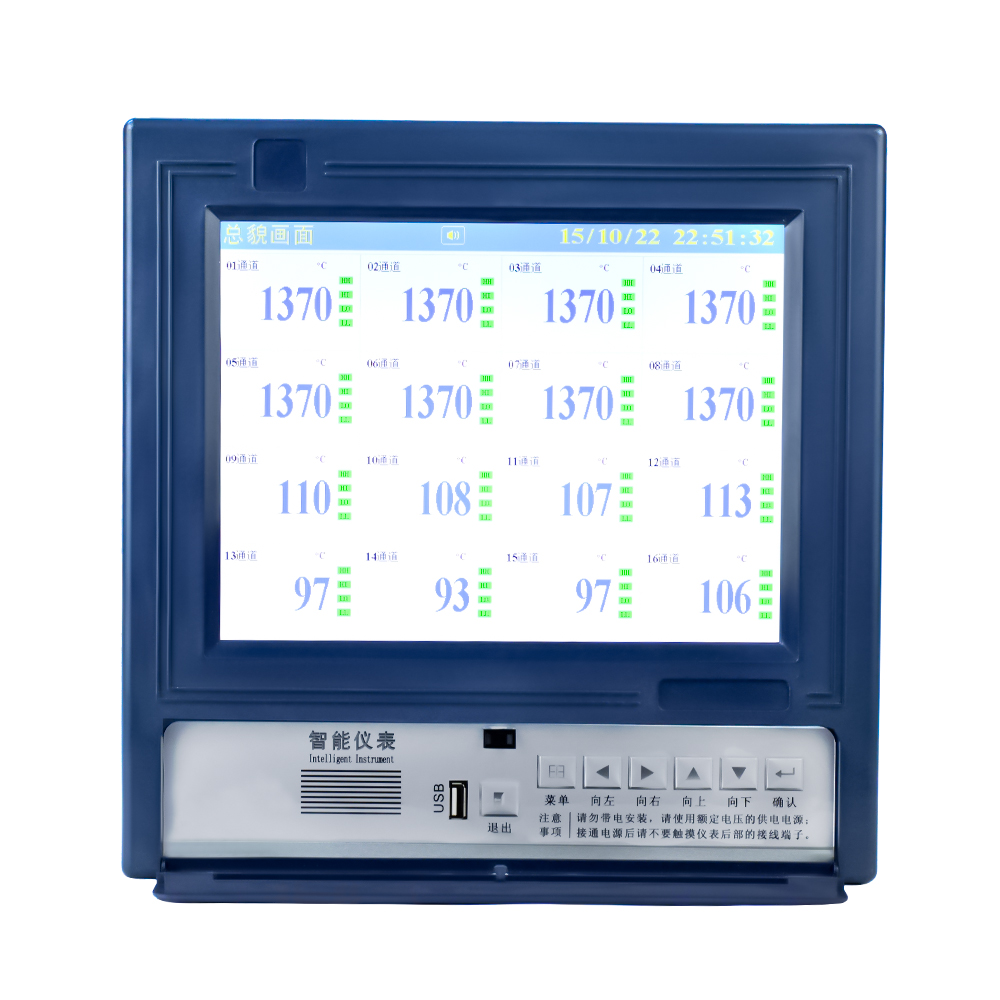

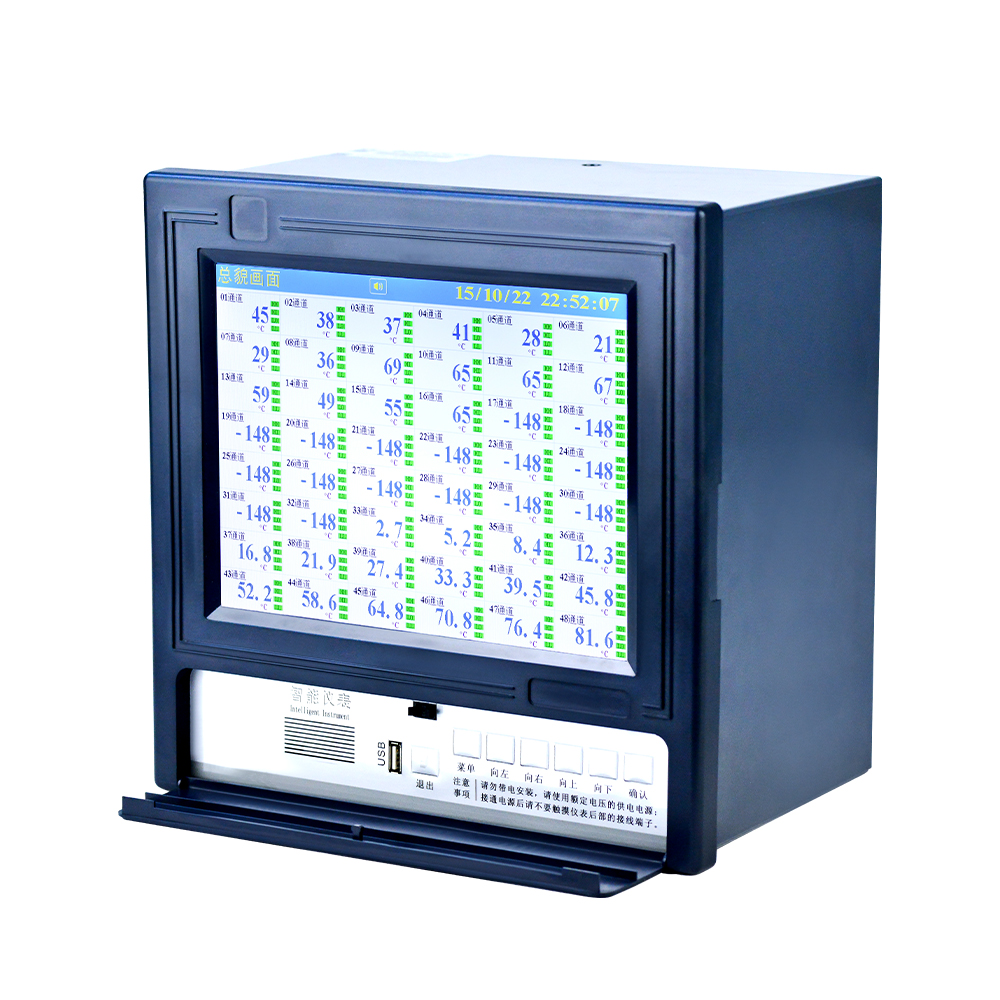

GT80R Paperless Recorder

As the scene of the industrial scale, centralization and complicated, multi-channel data acquisition, complex information processing and control color display, touch screen operation, such as application is more and more welcome by users, so a data processing capability, high reliability and large capacity of the record store, display rich content, excellent computing performance and system of incident response quickly excellence products is necessary.Our company research and development of long figure color paperless recorder, the extraordinary performance made in the application of industry higher strength more complex data processing tasks at the same time, also can run high stability of the long-term system is mainly used in petroleum and petrochemical, chemical, plastic, textile printing and dyeing, paper making gold smelting materials, science and education of national defense, biomedical, municipal environmental protection, energy metering, food grain and oil, alcohol, tobacco, beverage, equipment manufacturing, complete equipment and various industries such as agriculture, forestry and animal husbandry, fishery.

Characteristics

● Support 48 inputs
● Multi-function interface, one-click switching
● RS232 or RS485 communication input
● On-site data can be transferred easily
    The recorder has strong data processing capabilities, high operational reliability, large recording storage capacity, rich display content, excellent computing performance and rapid response to system events. The performance of the color paperless recorder enables the application of higher intensity industrial tasks and more complex data processing while maintaining high stability of the system for a long time

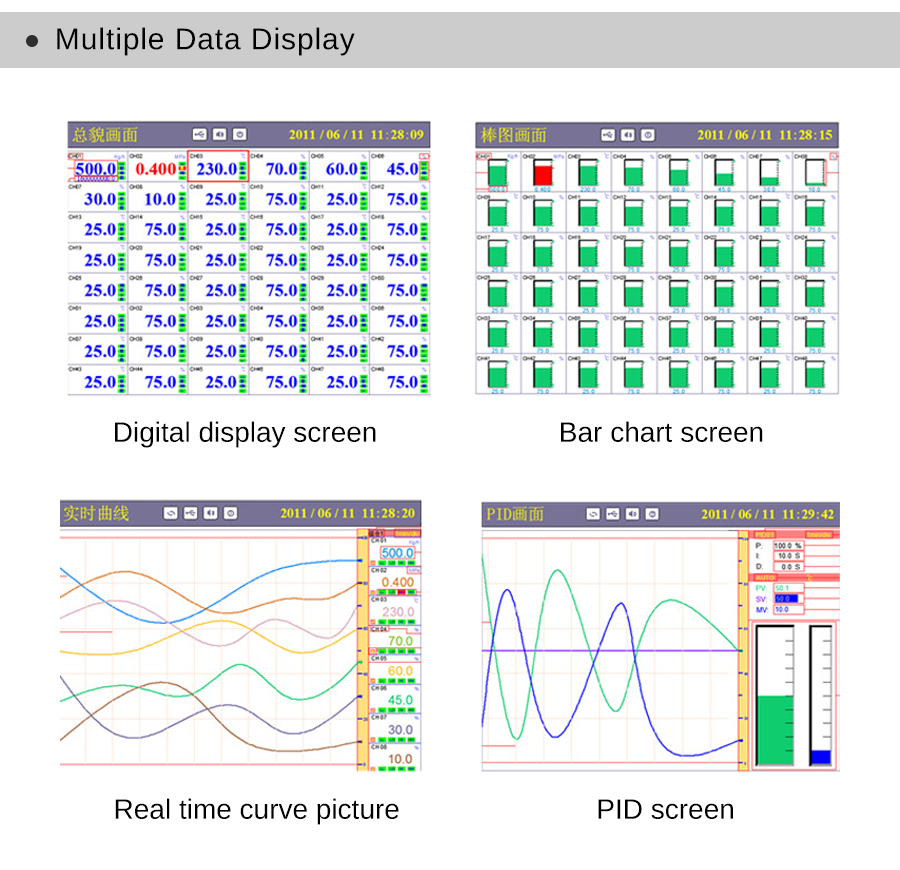

    Display

    10.4-inch true color TFT LCD Real-time display accuracy: +0.2% F.S. Recall accuracy: +0.2% F.S.

    Processor

    High-performance ARM Cortex-M3 32-bit RISC core realizes multi-channel signal collection, recording, display and alarm

    Storage

    Large-capacity parallel NAND FLASH flash memory chip stores historical data, and serial FRAM memory chip stores information

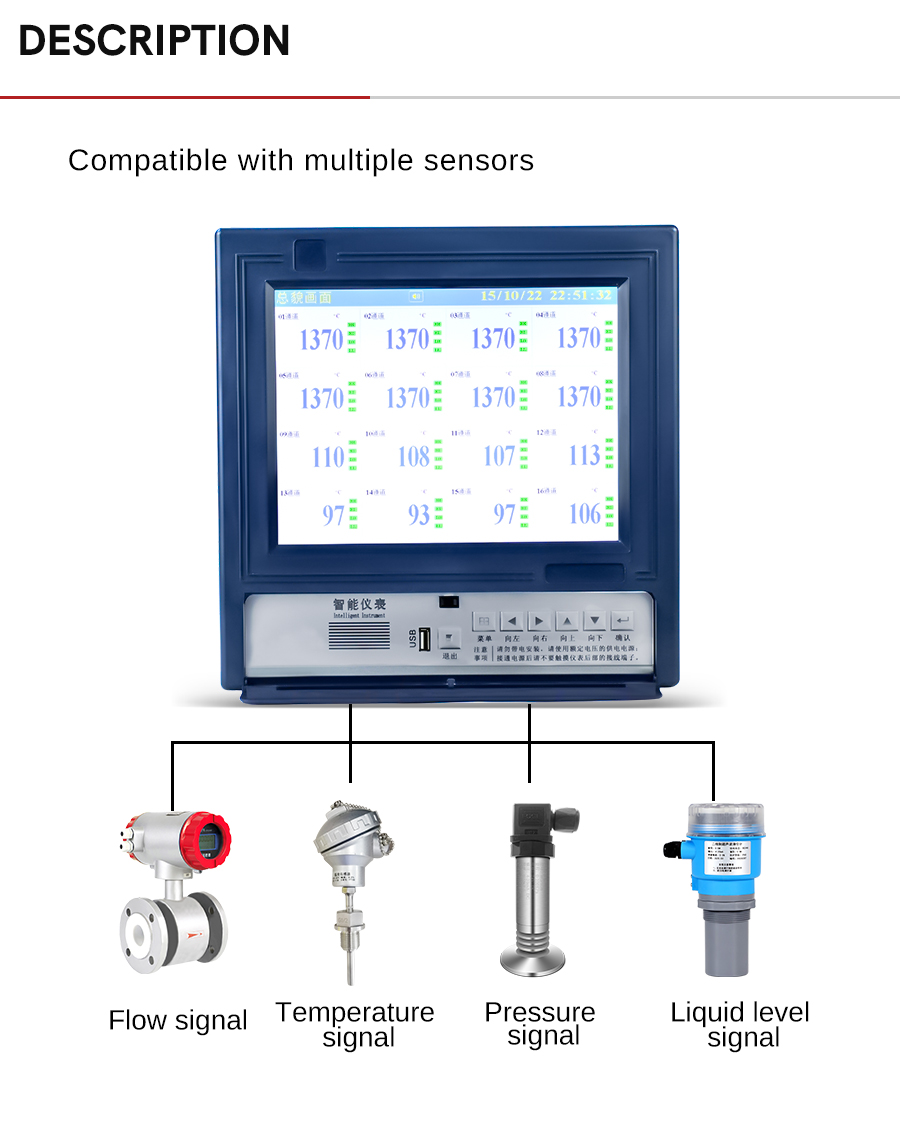

    Input

    lnput specifications: fully isolated input, supports up to 48 analog inputs;

    Voltage: 0-5V1-5V,0-20mV,0-100mV Current: 0-10mA,4-20mA,0-20mA

    Frequency: Frequency signal (Pl) (frequency range: 0-30000HZ) Resistance: Res (0-400Q)

    Thermal resistance: PT100, Cu50,G53,Cu100,BA1,BA2

    Thermocouple: S/B/K/T/R/E/N/J Radiation pyrometer: F1/F2 Tungsten-rhenium: WRe3-25/WRe5-26

    Output



    Power distribution output: supports 16 channels of transmitter isolated power distribution +24VDC

    Transmission output: supports up to 8 channels of standard current (4-20mA or 0-20mA or 0-10mA] transmission output

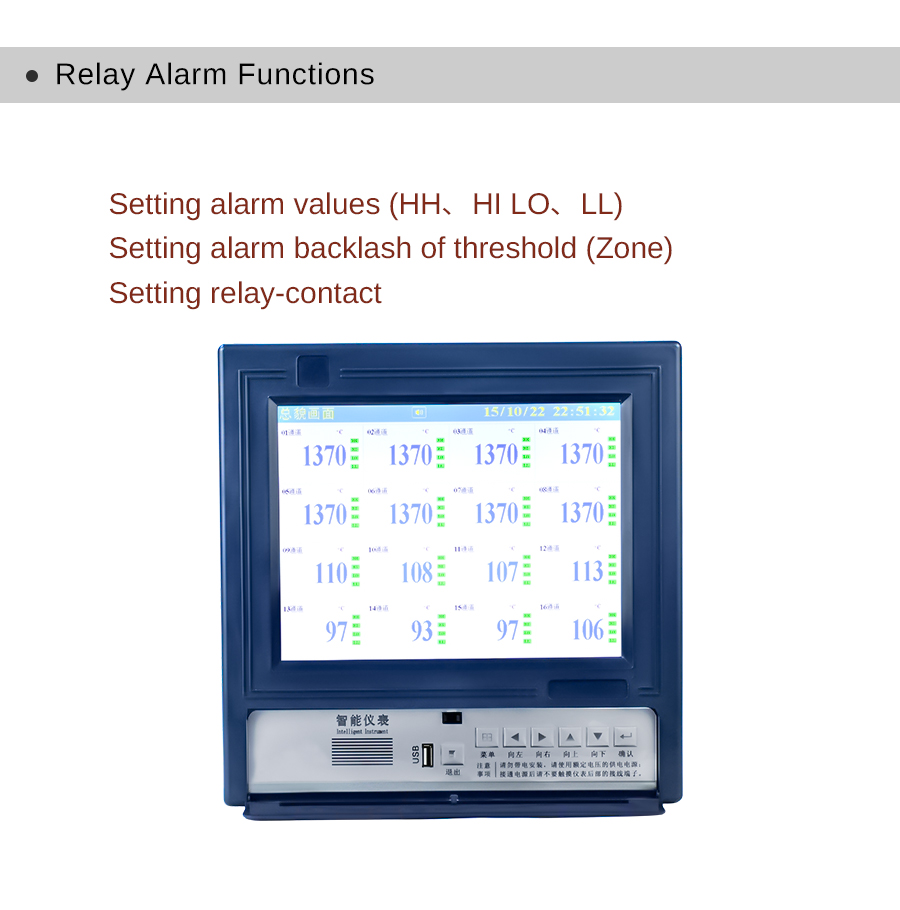

    Relay alarm output: supports 24 channels of relay alarm output, with upper limit, upper limit, lower limit......

    Communication

    Communication interface: Provides two communication interfaces, RS232C and RS485, supporting Modbus RTU protocol

    Power supply

    Support 220VAC,24VDC,12VDC

    Protective function

    Power-off protection: Built-in memory protection parameters and historical data, saved after power-off

    Clock protection: lntegrated hardware clock, can run accurately even after power failure
