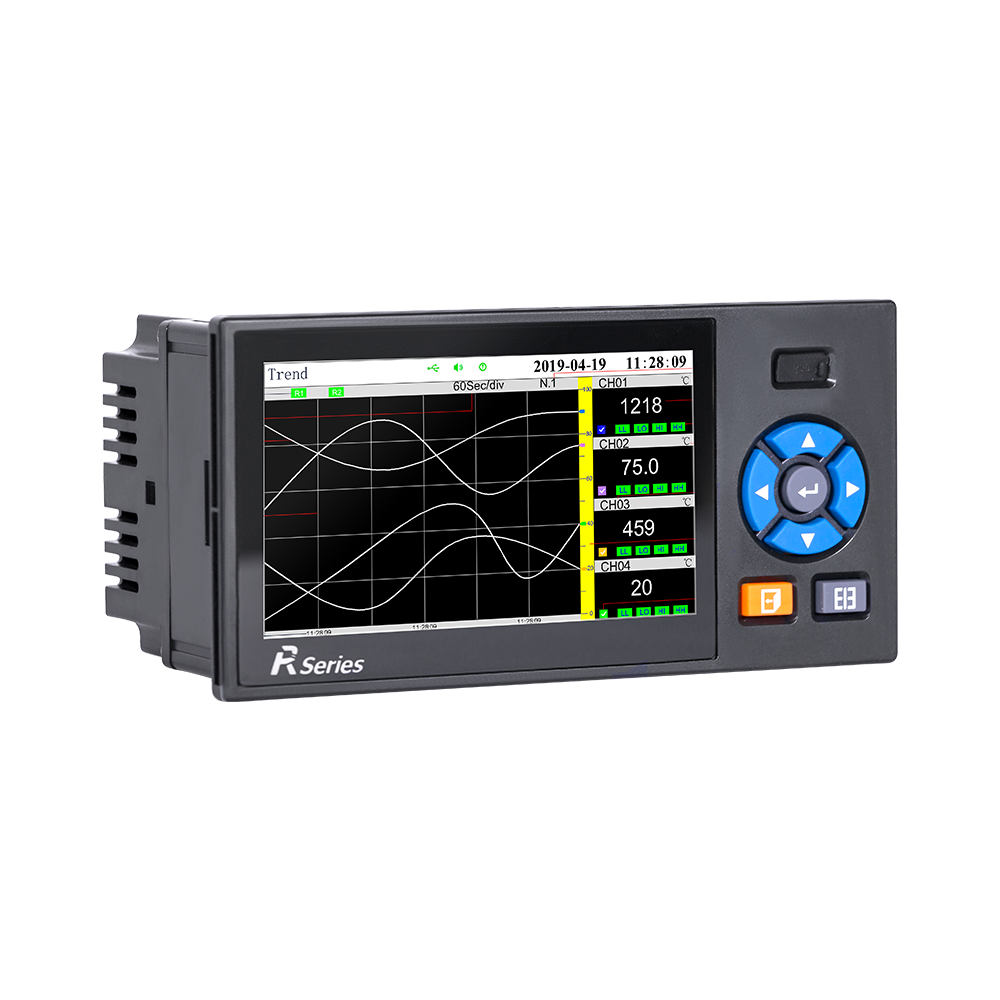

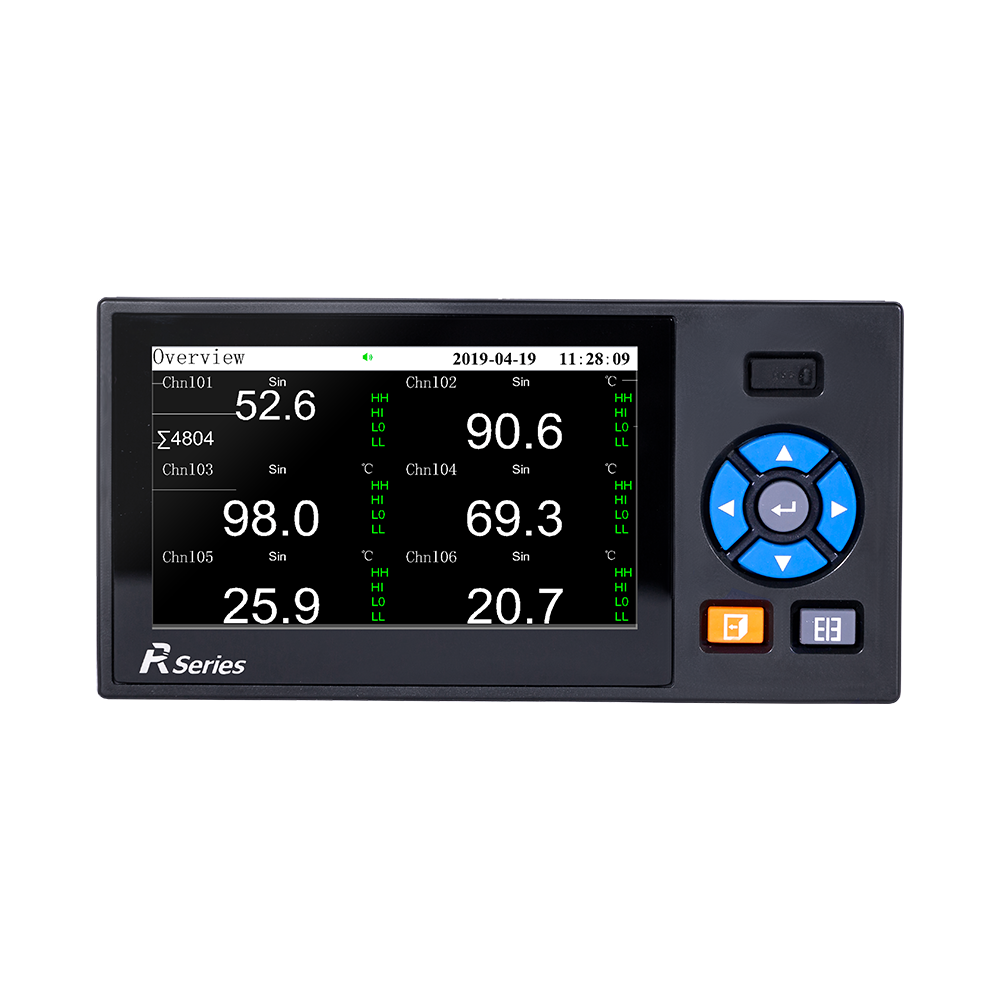

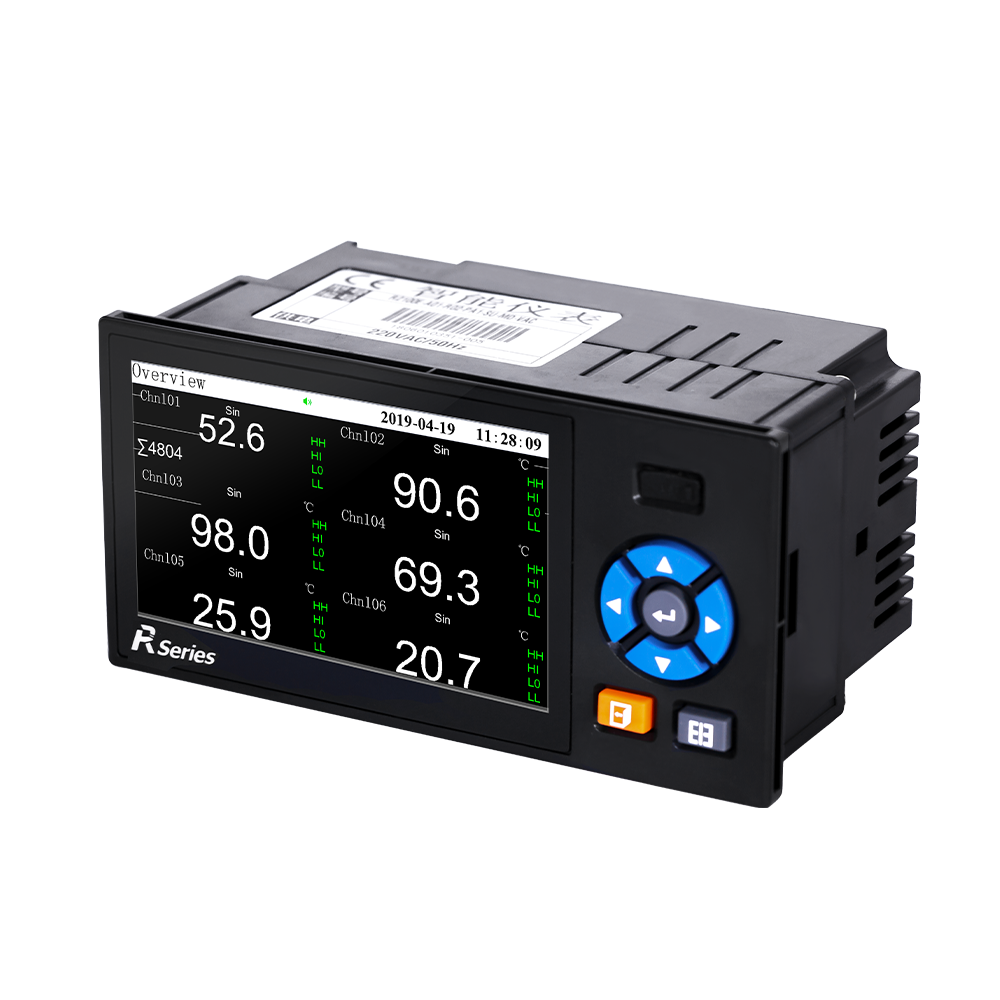

GT65 Data logger

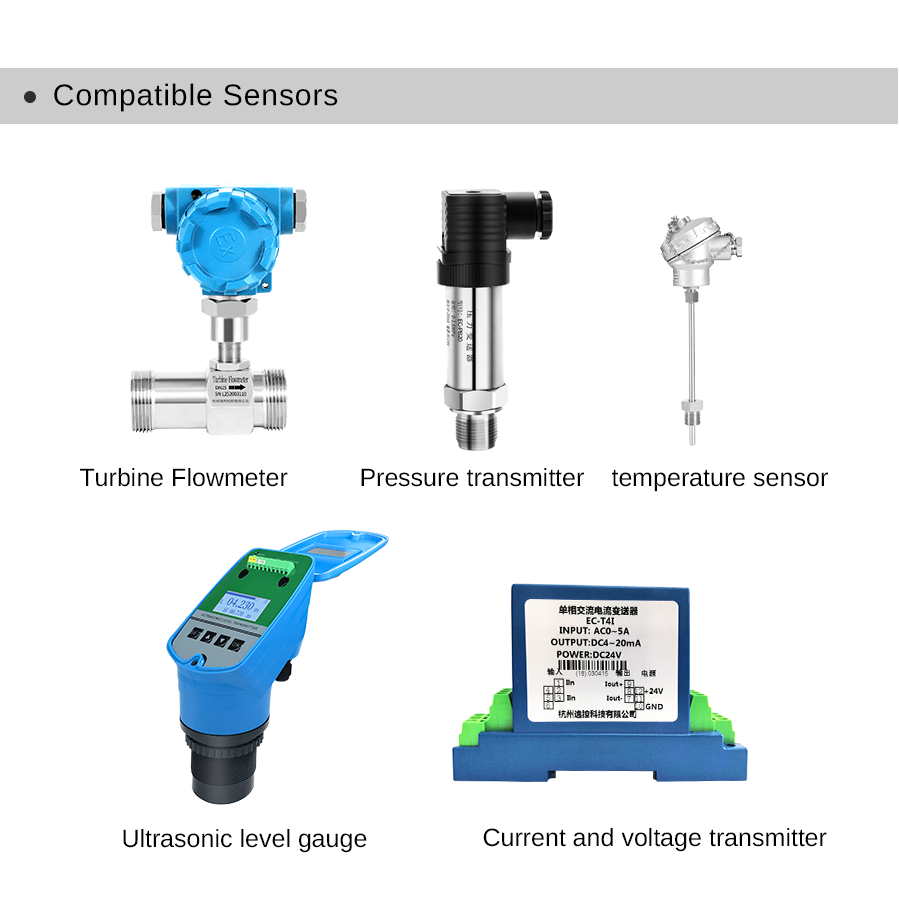

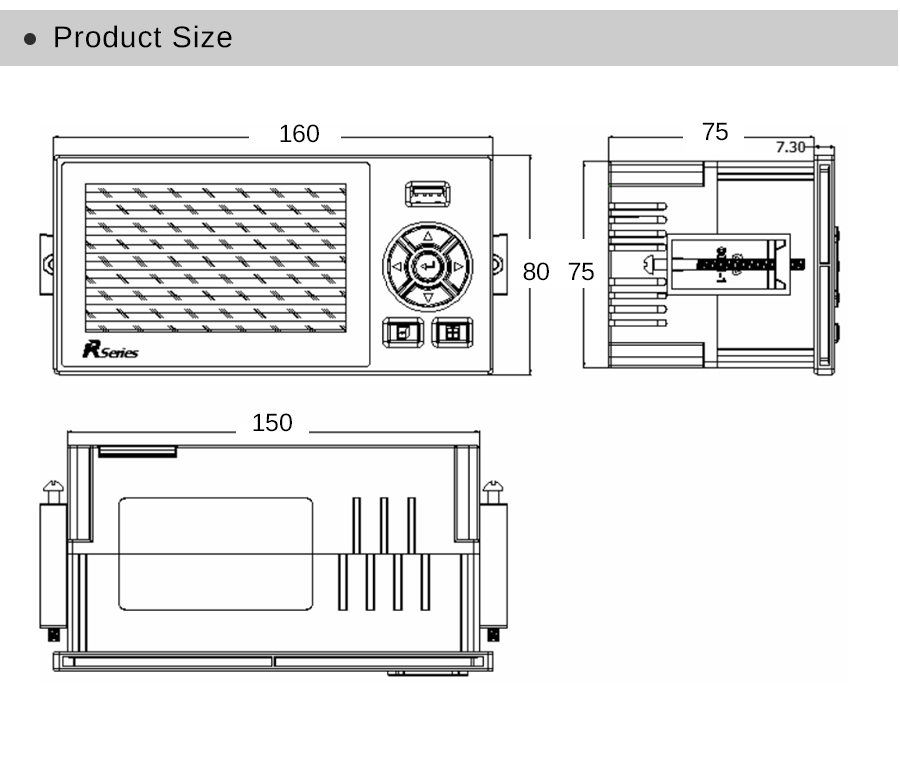

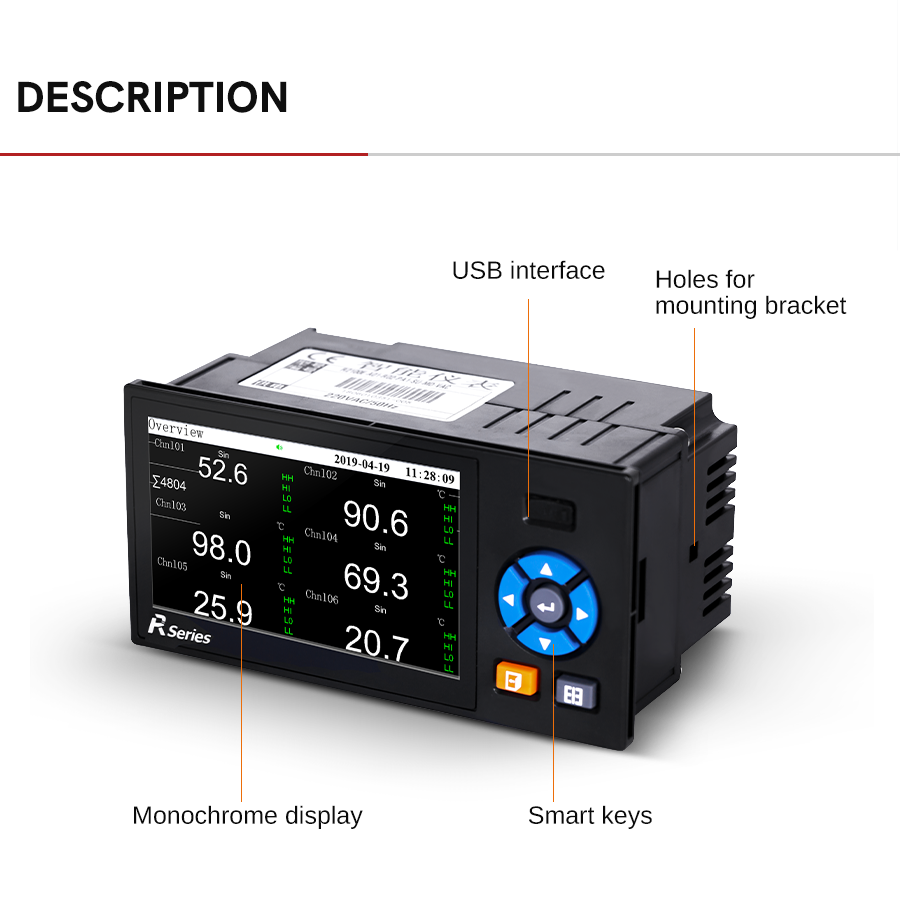

This product is industrial paperless recorder, 160*80 panel size series.Real-time collection of industrial field flow, temperature, pressure and liquid level and other parameters, can input current, voltage, thermocouple and thermal resistance and other signals.After calculation and transformation, it can be displayed and viewed in real time in the form of data, bar graph and curve, etc.Periodically store historical data electronically in the internal storage of the machine.The machine can read data through 485 communication interface, and transfer and store data through USB interface.

Characteristics

● 4.3-inch true color TFT LCD
● Supports up to 6 channels of universal analog input
● RS232C and RS485 are optional
● Recording interval: 1 second to 240 seconds
Contact now
Technical support
Download
    Paperless recorder,160*80 panel size series，Signals such as current, voltage, thermocouple and thermal resistance can be input. After calculation and conversion, it can be displayed and viewed on-site in real time in the form of data, bar graphs, curves, etc., and historical data can be electronically stored in the machine's internal memory at regular intervals. The device can transfer backup data through the USB through the RS485 interface andread data communication interface.

    Show

    4.3-inch true color TFT LCD

    Channel

    Supports up to 6 channels of universal analog input

    Input

    Voltage input: 0-5V,1-5V,0-20mV,0-100mV

    Current input:0-10mA4-20mA0-20mA

    Resistor input: Res Thermal resistance: PT100/Cu50/G53/Cu100/BA1/BA2

    Thermocouples: S, B,K, T, R, E NJ Radiation pyrometer: F1, F2

    Tungsten and rhenium: WRe3-25, WRe5-26 lf other signal inputs are needed, they need to be customized

    Output

    Power distribution output: 1 channel transmitter isolated power distribution +24VDC, power distribution<60mA

    Transmission output: 2 channels of current 4-20mA output, display instrument or DCS/PLC collection

    Relay alarm output: 2 channels f relay alarm output, configurable upper limit, upper limit, lower limit, .....

    Record



    Recording capacity: 64/128/192/248MB(FLASH capacity optional)

    Recording interval: 1 second to 240 seconds, divided into 11 levels: 1/2/4/8/12/24/36/60/120/180/240 s

    Power supply

    220VAC power supply,12VDC,24VDC power supply

    Condition

    Temperature: 0-50C (avoid direct sunlight) Relative humidity: 0-85%RH Atitude: <2000m
