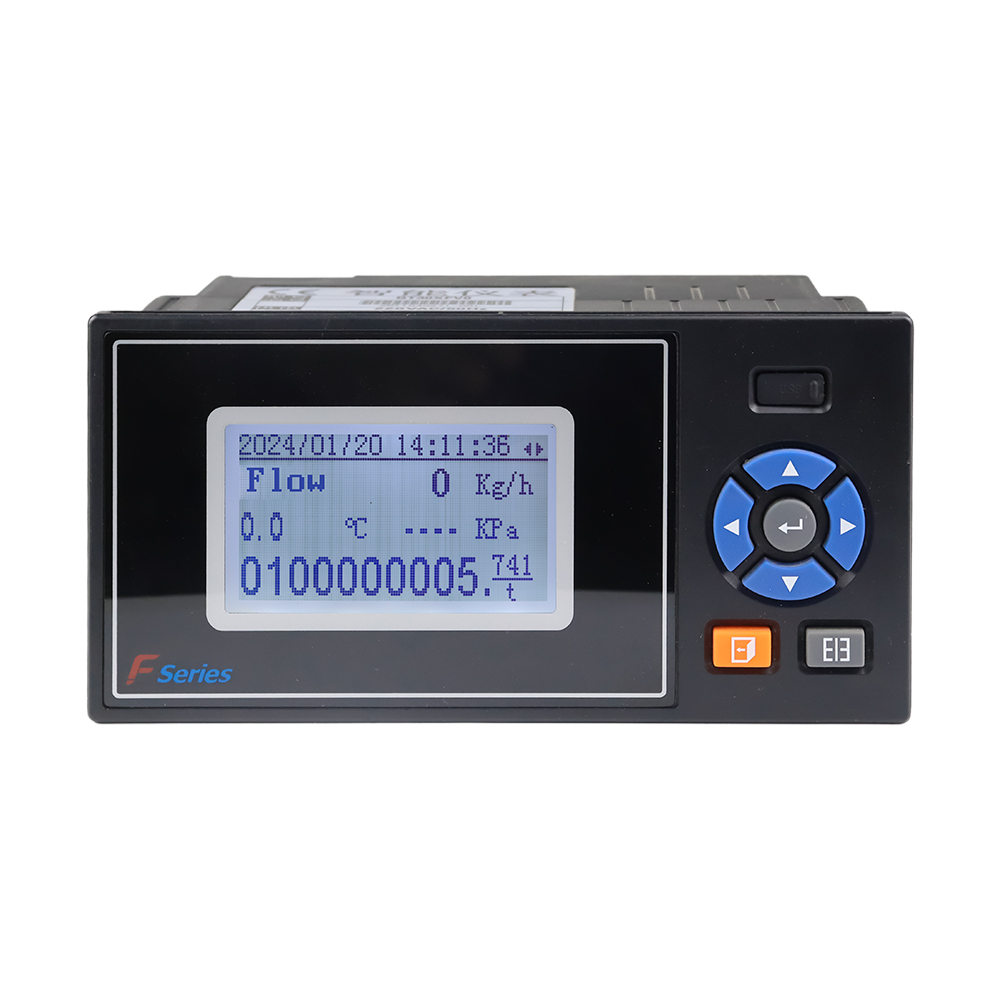

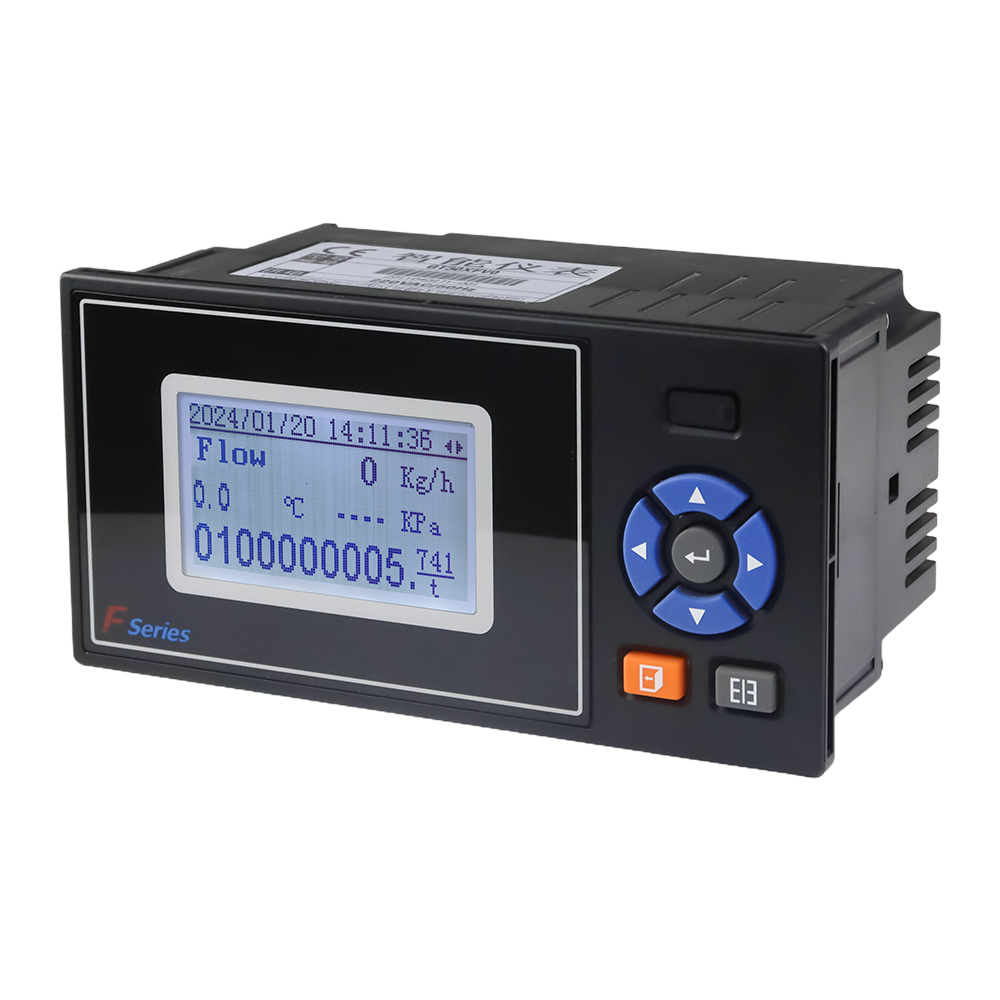

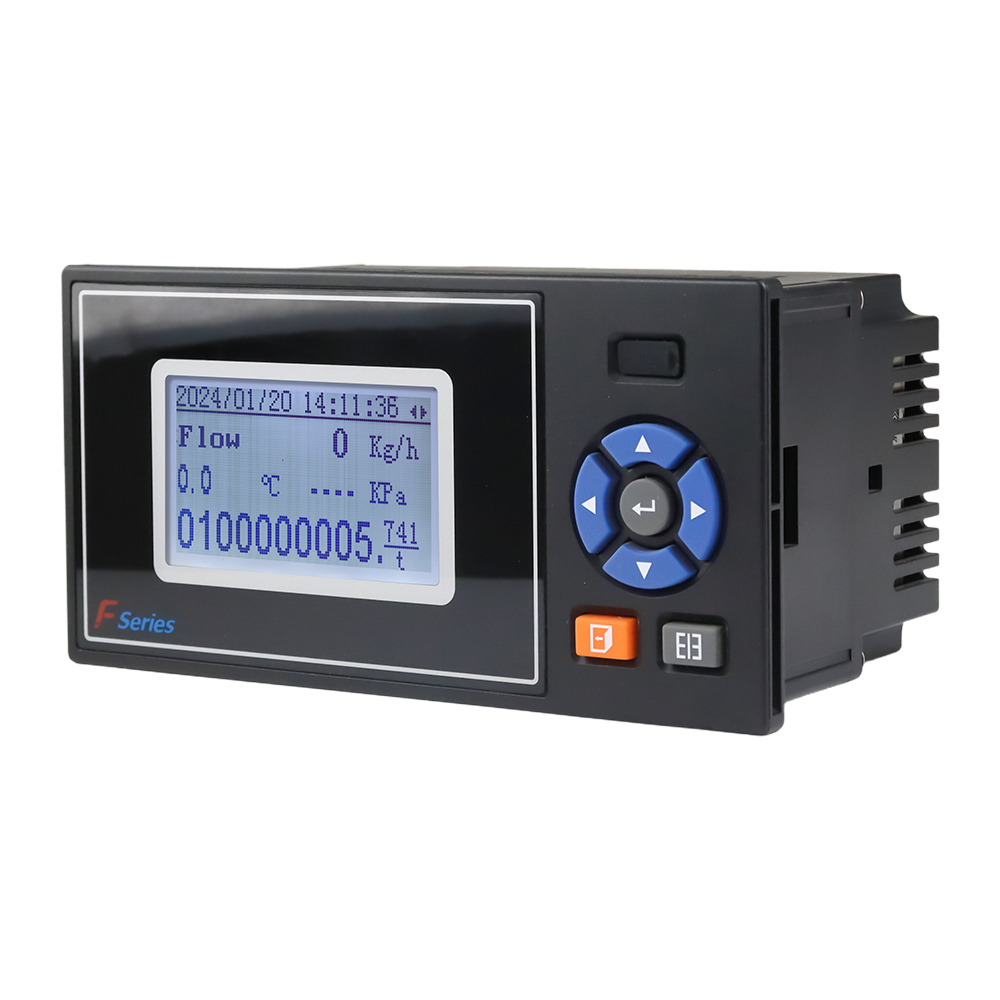

3000X Flow totalizer

The intelligent flow totalizer is an instrument based on an ARM microprocessor that cooperates with various flow transmitters and sensors to accurately measure and calculate flow through a variety of flow mathematical models for different fluid media. It collects, displays, controls, remote transmits, communicates, prints and other signals on-site such as temperature, pressure, flow rate, etc. to form a digital acquisition system and control monitoring system. It is widely used in petrochemical, chemical industry, metallurgy, electric power, and light industry. Trade settlement and factory measurement management network for industries such as medicine, medicine and city gas.

Characteristics

● Data can be exported
● Alarm function
● Simple operation and friendly interface

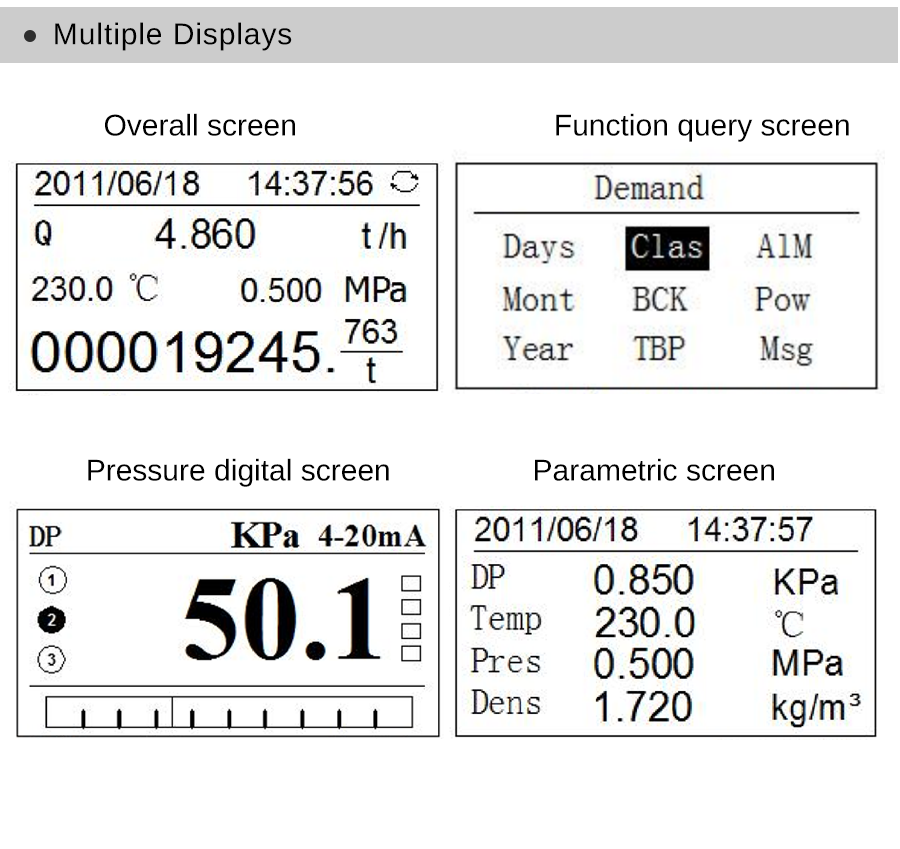

● Three displays of temperature, pressure and flow
Contact now
Technical support
Download

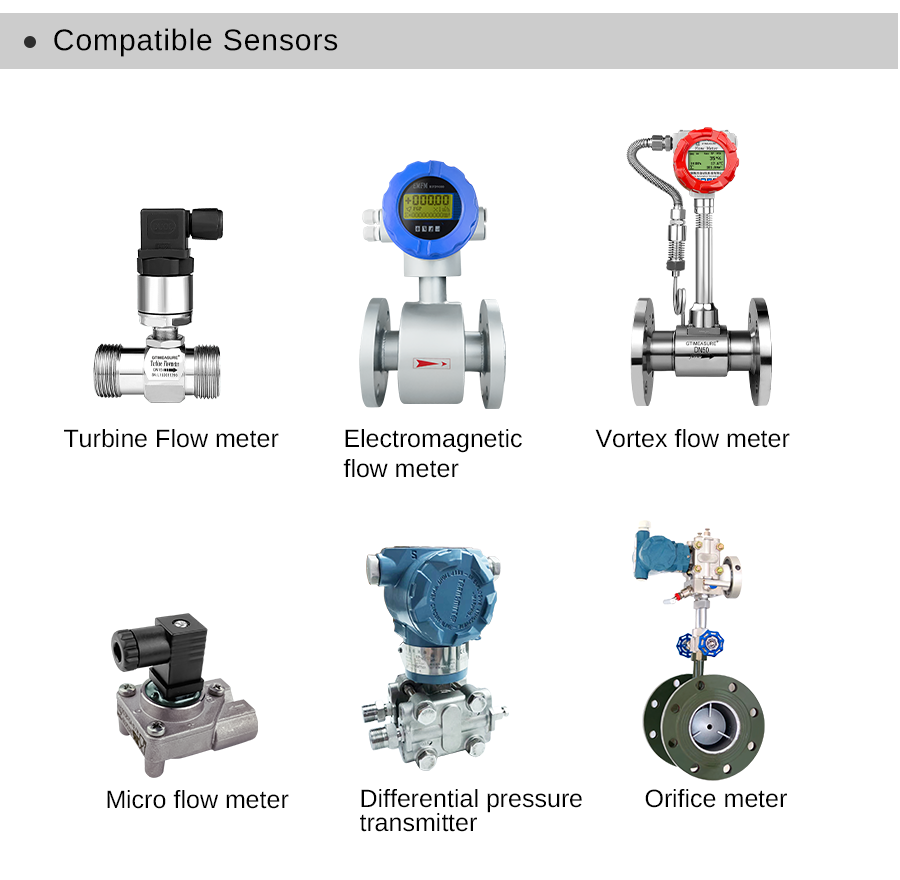

    The exquisite quantitative controller is based on an ARM microprocessor and is matched with various flow transmitters, sensors (such as turbines, vortex, electromagnetic flow meters, etc.) and solenoid valve pumps, and can accumulate and compare the flow. Flow measurement control system for quantitative control. This exquisite quantitative controller has a good human-machine interface and soft and hard protection measures. It is easy to operate, safe and reliable, has excellent anti-interference performance and excellent stability. It is mainly used in petroleum, chemical industry, medicine and food and other industries that require quantitative packaging. Control occasions: quantitative beating/feeding, loading, batching, discharging, material distributing, gas filling, etc.

    Model

    GT30XF

    Screen

    128*64(LCD)

    Accuracy

    ± 0.2% F.S.

    CPU

    ARM Cortex-M3 32-bit RISC core

    Input

    Flow channel: Analog signal: 4-20mA, 0-10mA and other signals;

    Frequency signal: Fr (range: 0.0-5000.0HZ, low level < V, high level > 5V)

    Temperature channel: 0-10mA, 4-20mA, Pt100 and other signals

    Pressure channel: 0-10mA, 4-20mA and other signals

    Output

    2 relay outputs; 2 groups of 24V feed outputs (30mA each), 1 group of 12V feed,outputs(60mA);1 analog output;

    Communication

    Two communication interfaces:RS232C and RS485

    Backup

    Support USB 1.1, 2.0 protocols,Supports U disks

    from 1G to 32G for cumulative report transfer

    Power

    220VAC/50HZ;

    24VDC(18VDC-36VDC)

    12VDC(9VDC-18VDC)

    Condition

    Temperature:0~50C Humidity:0~85%R.H

    Weight

    Net weight: <1.0Kg
