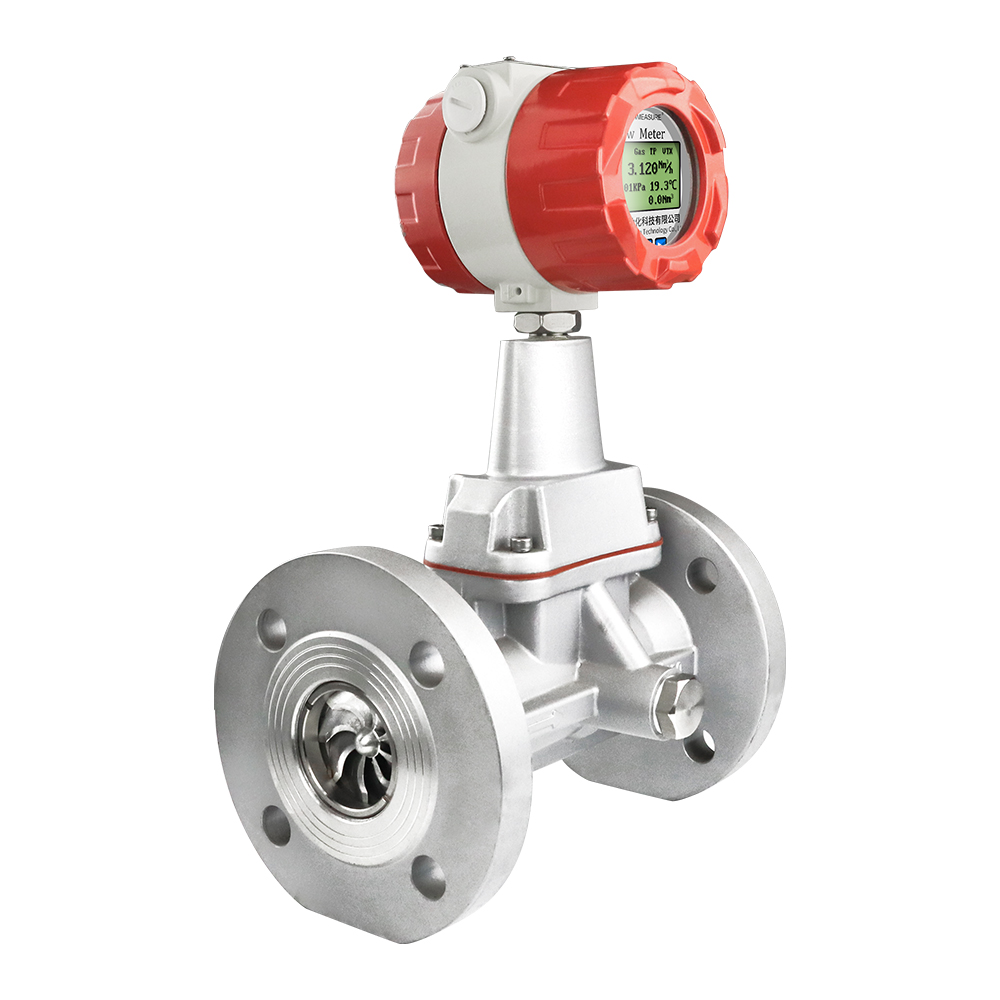

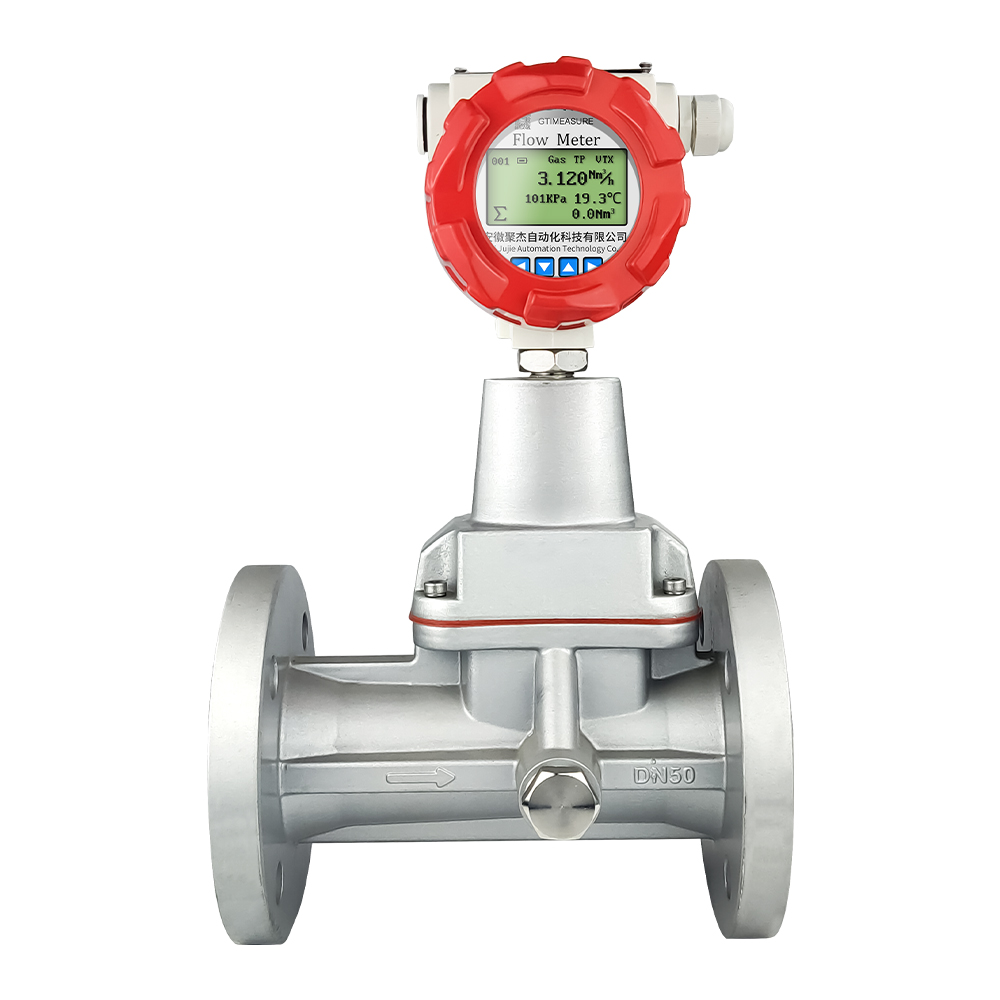

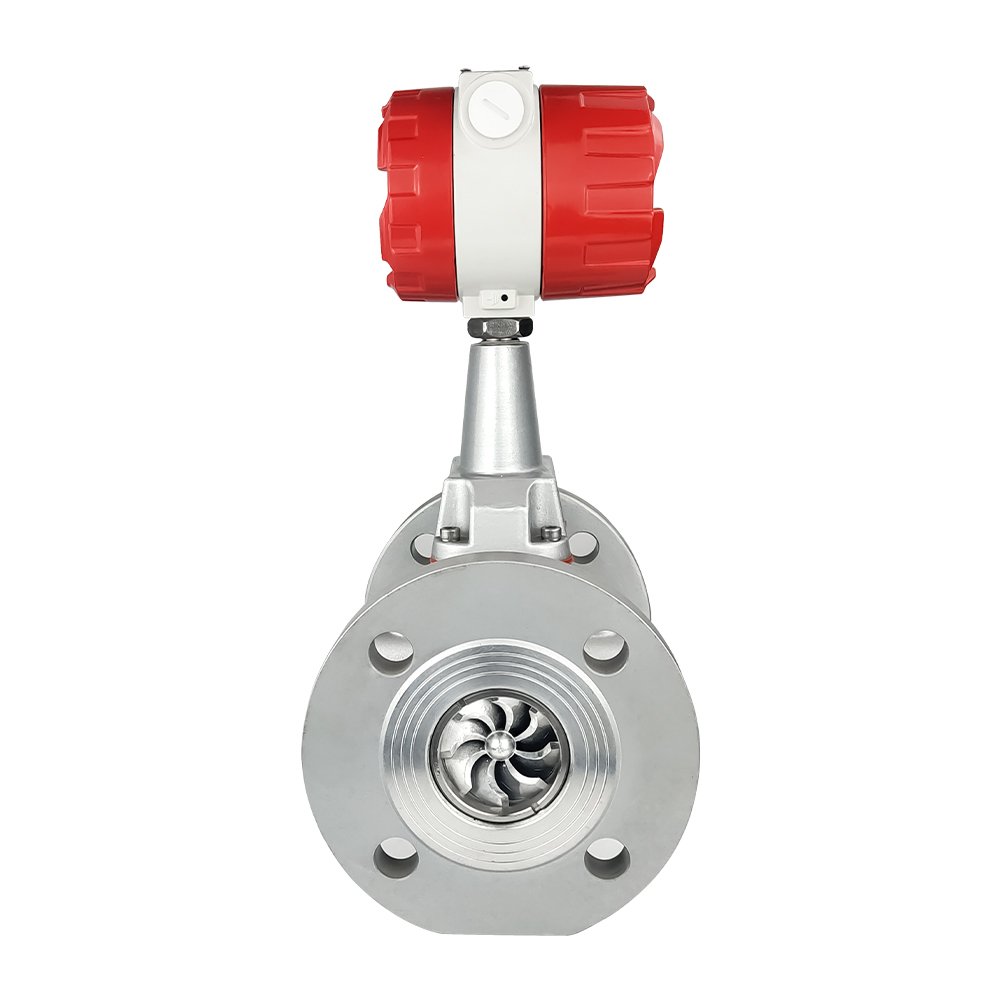

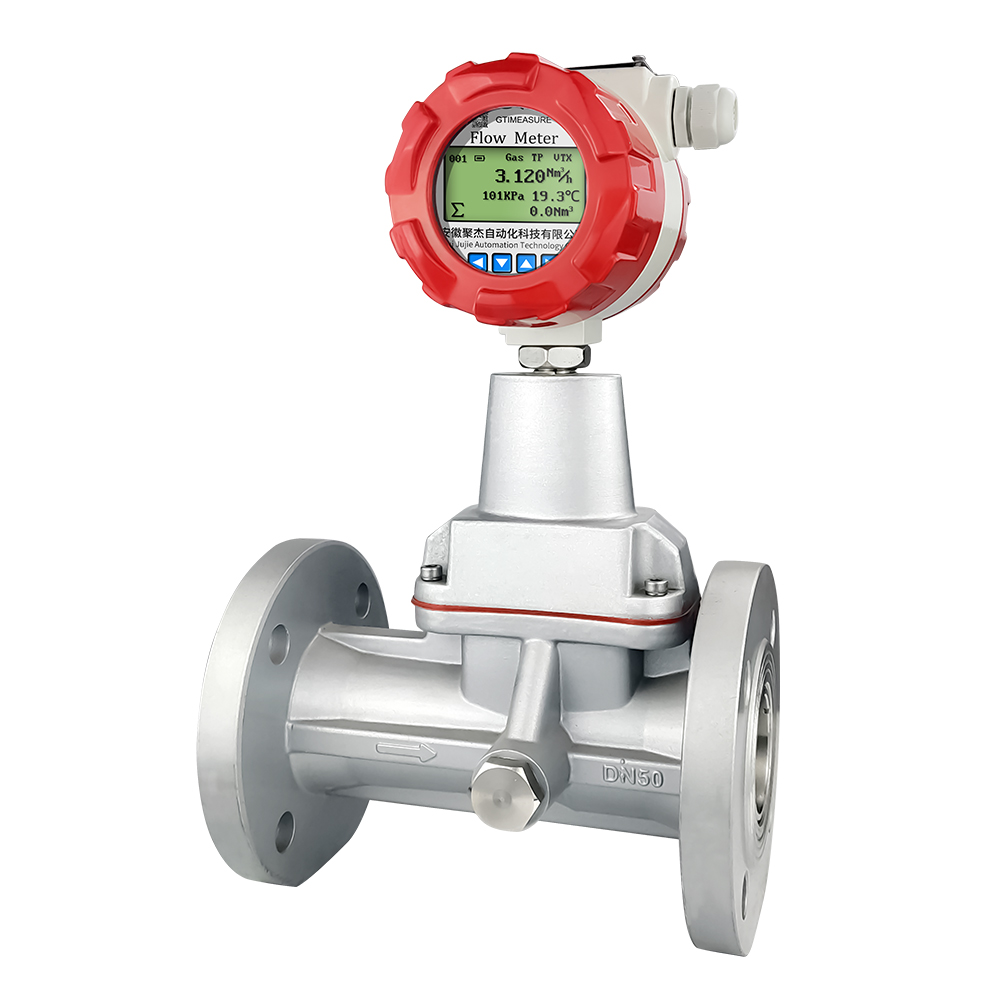

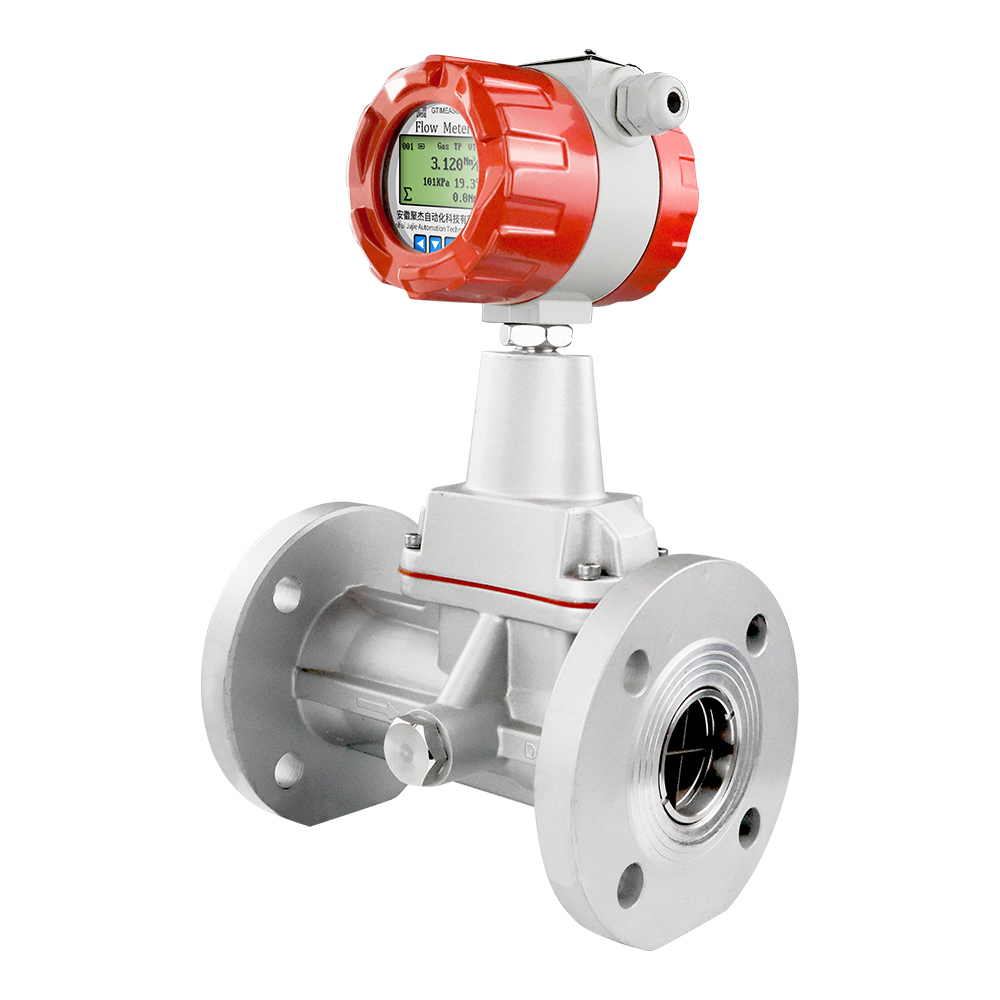

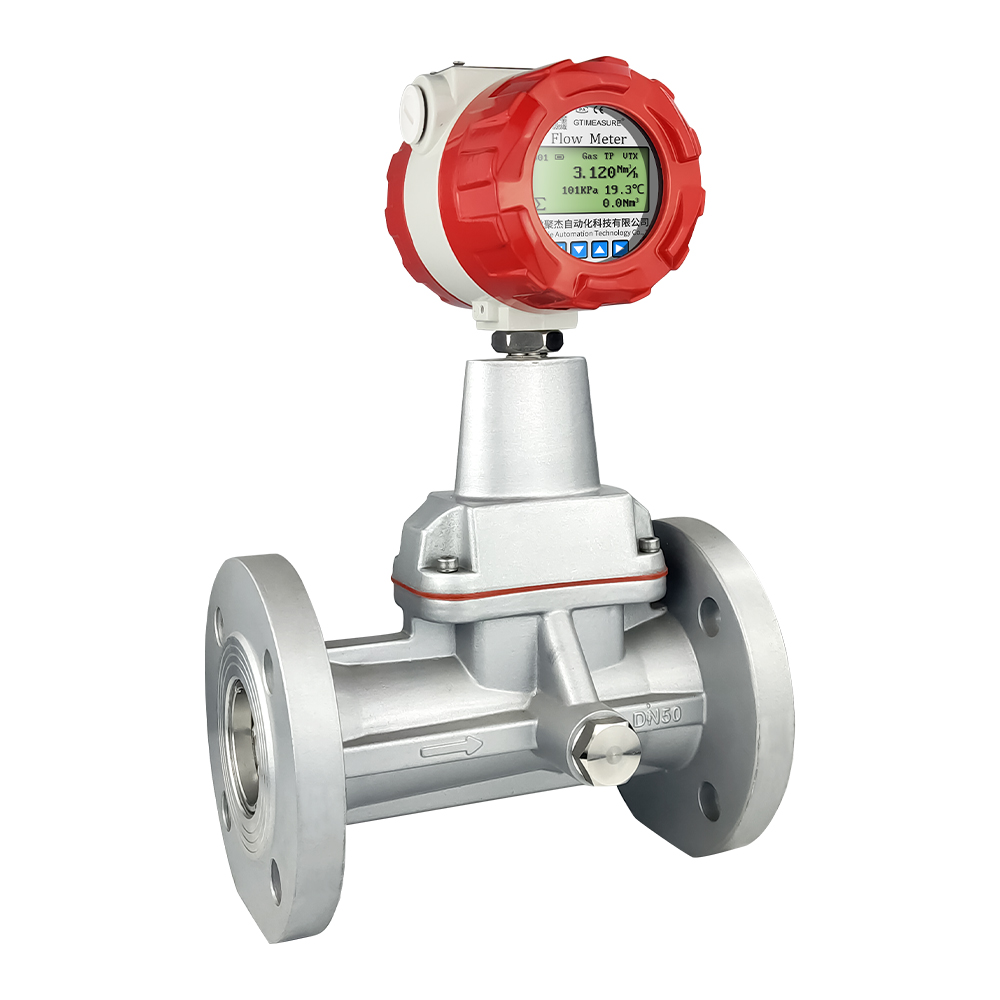

Precession Vortex Flow Meter

The intelligent precession vortex flowmeter is a new type of gas flow meter developed by our company. This flowmeter integrates flow, temperature, and pressure detection functions, and can automatically compensate for temperature, pressure, and compression factors. It is an instrument used for gas measurement in petroleum, chemical, electric power, metallurgy, and other industries.

Characteristics

● Measurement of natural gas, compressed air and other gases

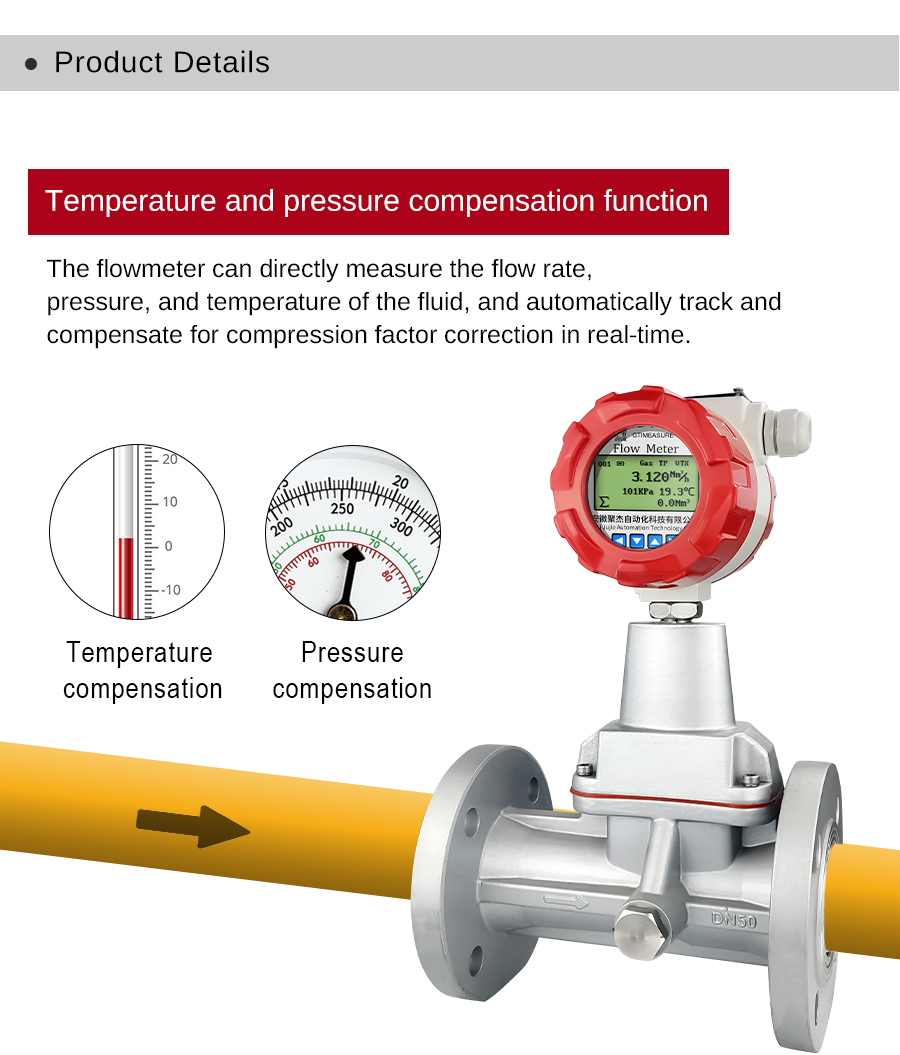

● Comes with temperature and pressure compensation
● LCD display, meter head rotates 360°
● 24V, 3.6V battery powered
● Protection grade IP65
Contact now
Technical support
Download

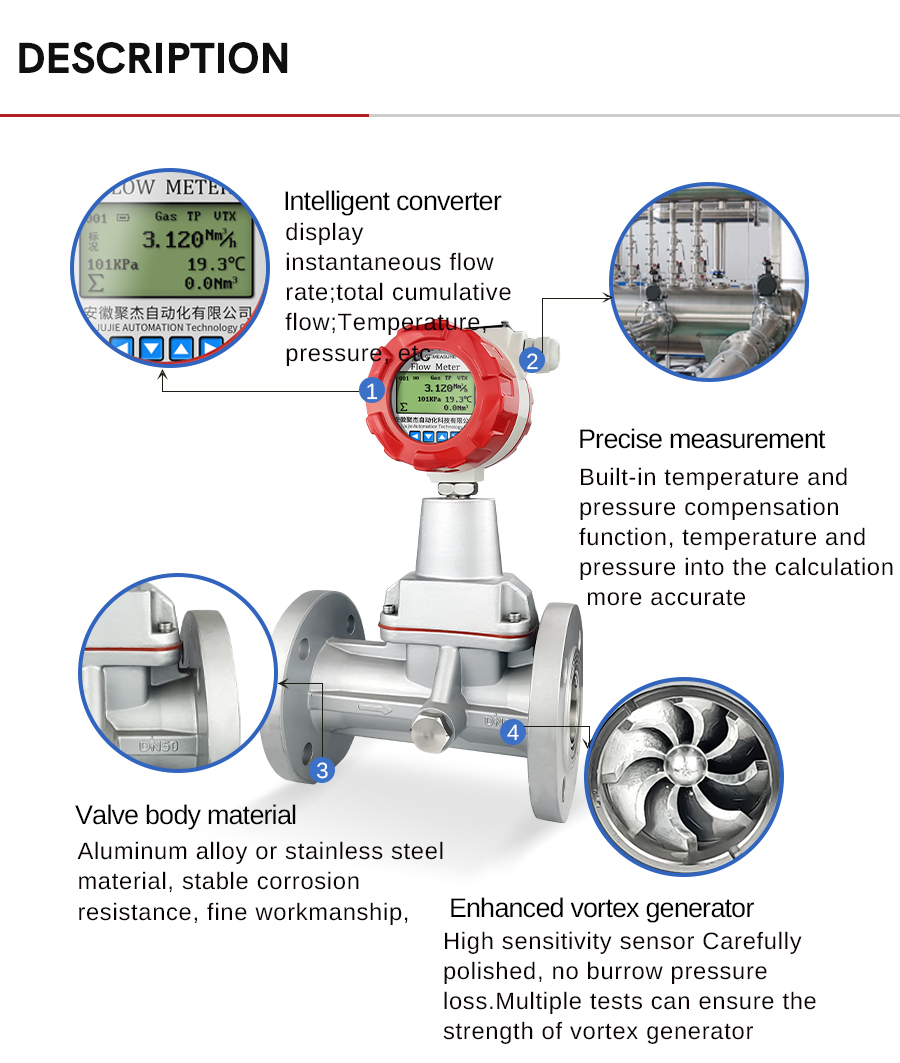

    The precession vortex flowmeter integrates flow collection, temperature and pressure detection and compensation functions, and is widely used in petroleum, chemical, electric power, metallurgy and other industries.
    * Not easy to corrode, stable and reliable;
    * 16-bit computer chip, high integration, small size and good performance;
    * Dual detection technology improves detection signal strength and suppresses interference;
    * Anti-seismic technology, suppresses interference signals from vibration and pressure;
    * EEPROM technology, historical data can be saved for up to one year
    * Output pulse, 4~20mA analog signal, RS485 interface, transmission distance up to 1.2km.

    Medium

    Natural gas, coal gas, compressed air and other gases

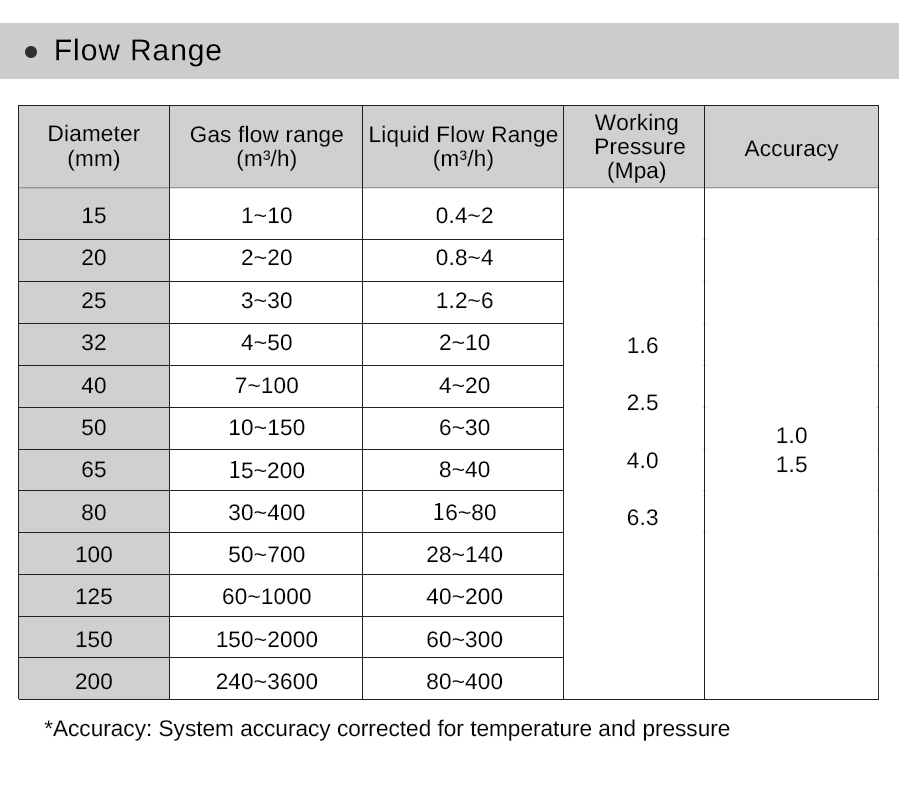

    Diameter

    DN15mm~DN200mm

    Accuracy

    1.0% 、1.5%

    Pressure

    1.6MPa;2.5MPa;4.0MPa;6.3MPa

    Material

    Aluminum alloy 304 stainless steel, 316L stainless steel

    Temp

    -20°C~+120°C;-20°C~+180°C;-20°C~+280°C

    Conditions

    Temp:-30°C~65℃;humidity:5%~95%;Pressure:86KPa~106KPa

    Power

    3.6VBattery;24VDC

    Output

    Pulse、4-20mA、RS485

    Alarm

    Upper and lower limit alarms, valve closing alarms

    EX sign

    Exd IICT6 Gb

    Protection

    IP65
