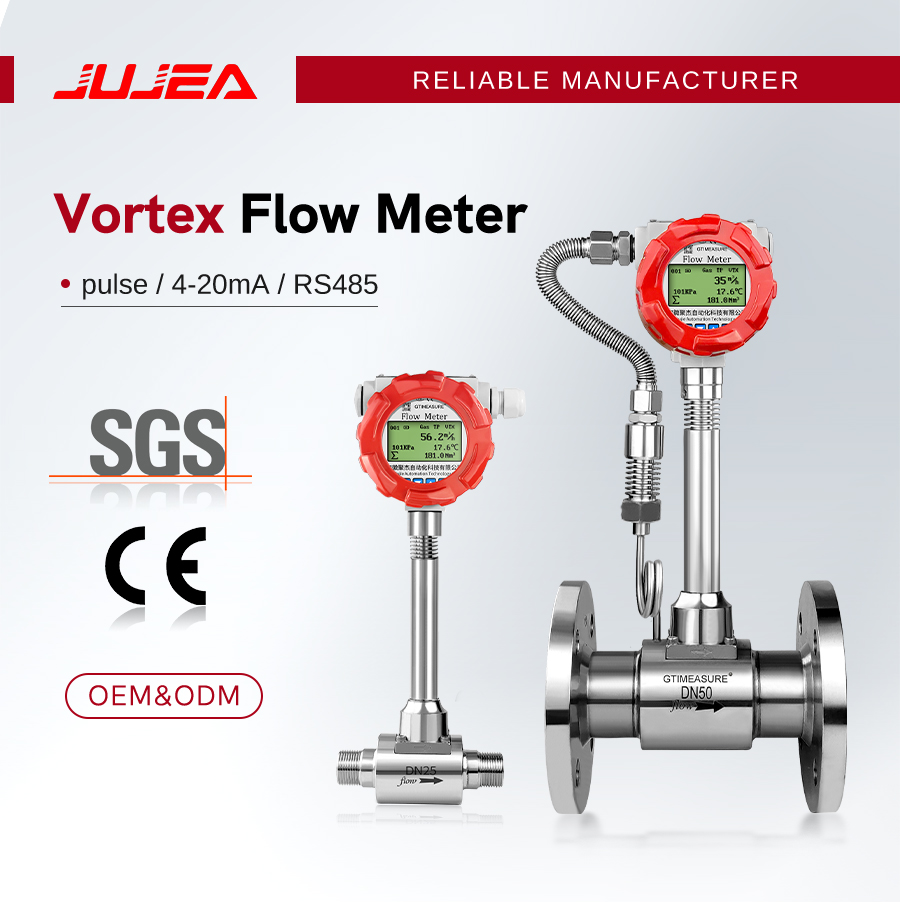

Votex Flow Meter

Intelligent integrated vortex flowmeter is a new generation of high quality intelligent instrument which adopts the latest digital integration technology in the world and according to the actual demand of domestic industrial automatic control.As a new type of intelligent vortex flowmeter for stress detection, piezoelectric crystals are used as the detection element.The meter has the advantages of wide range ratio, high precision, small pressure loss, good universality of medium, pulse and current signal proportional to flow rate, RS485 communication output, easy to use with computer and so on.The meter has the characteristics of simple structure, good versatility and high stability, which are active and passive, respectively.

Characteristics

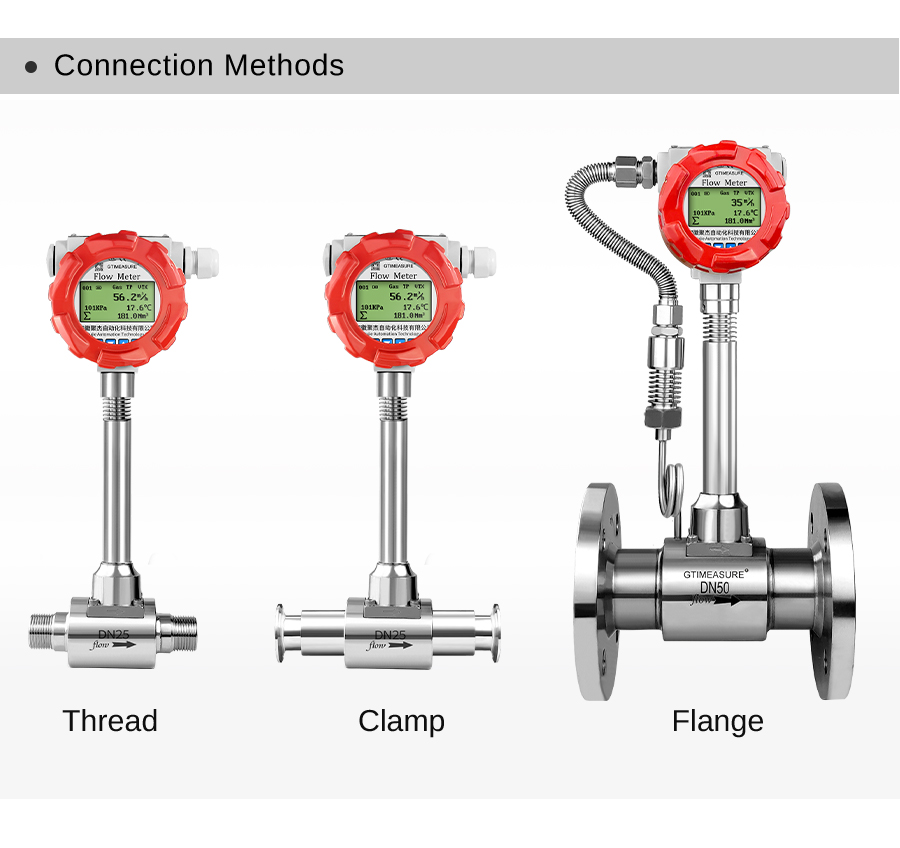

● Various connection methods
● LCD header, read modified data

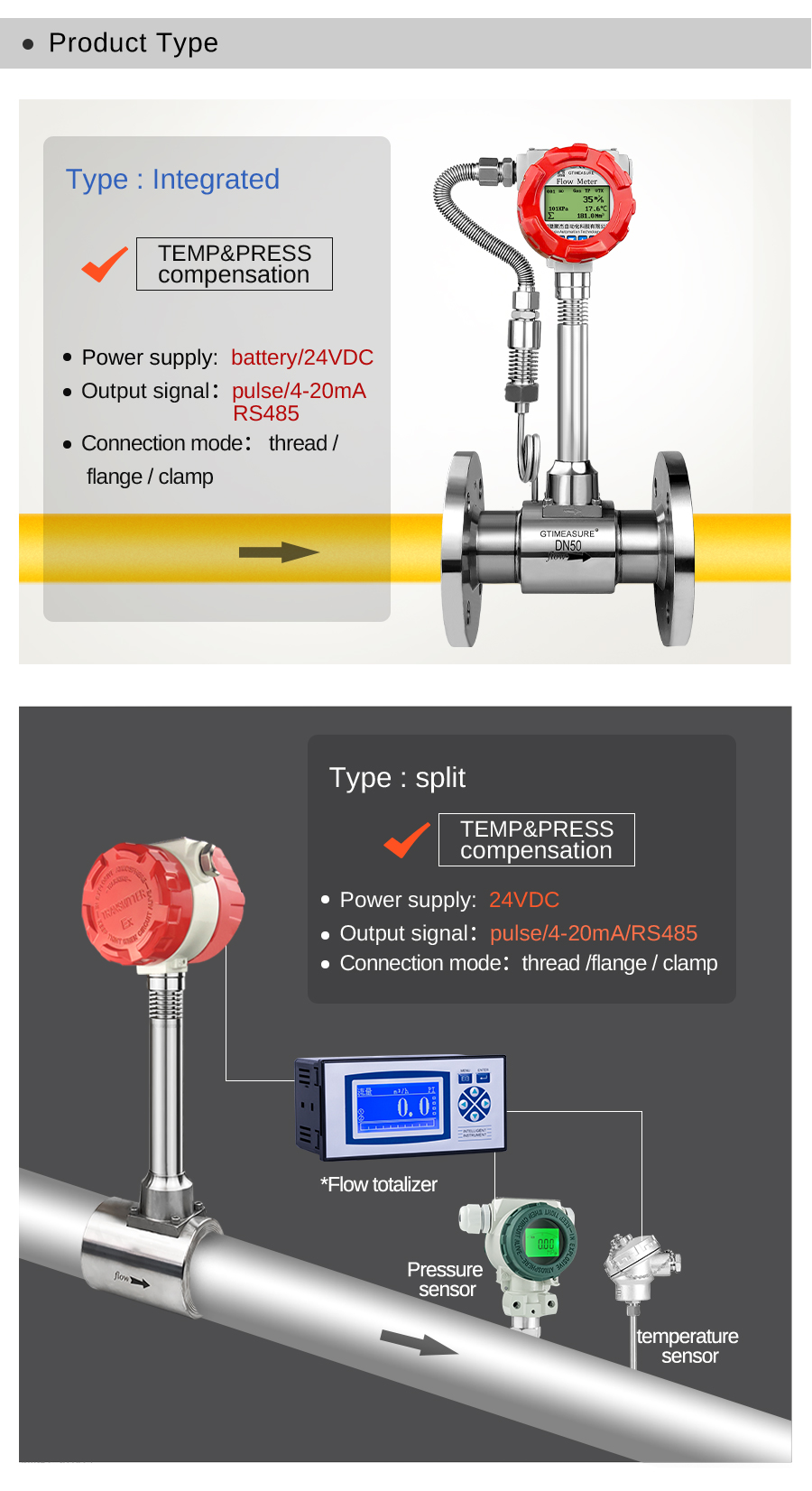

● Integrated temperature and pressure compensation

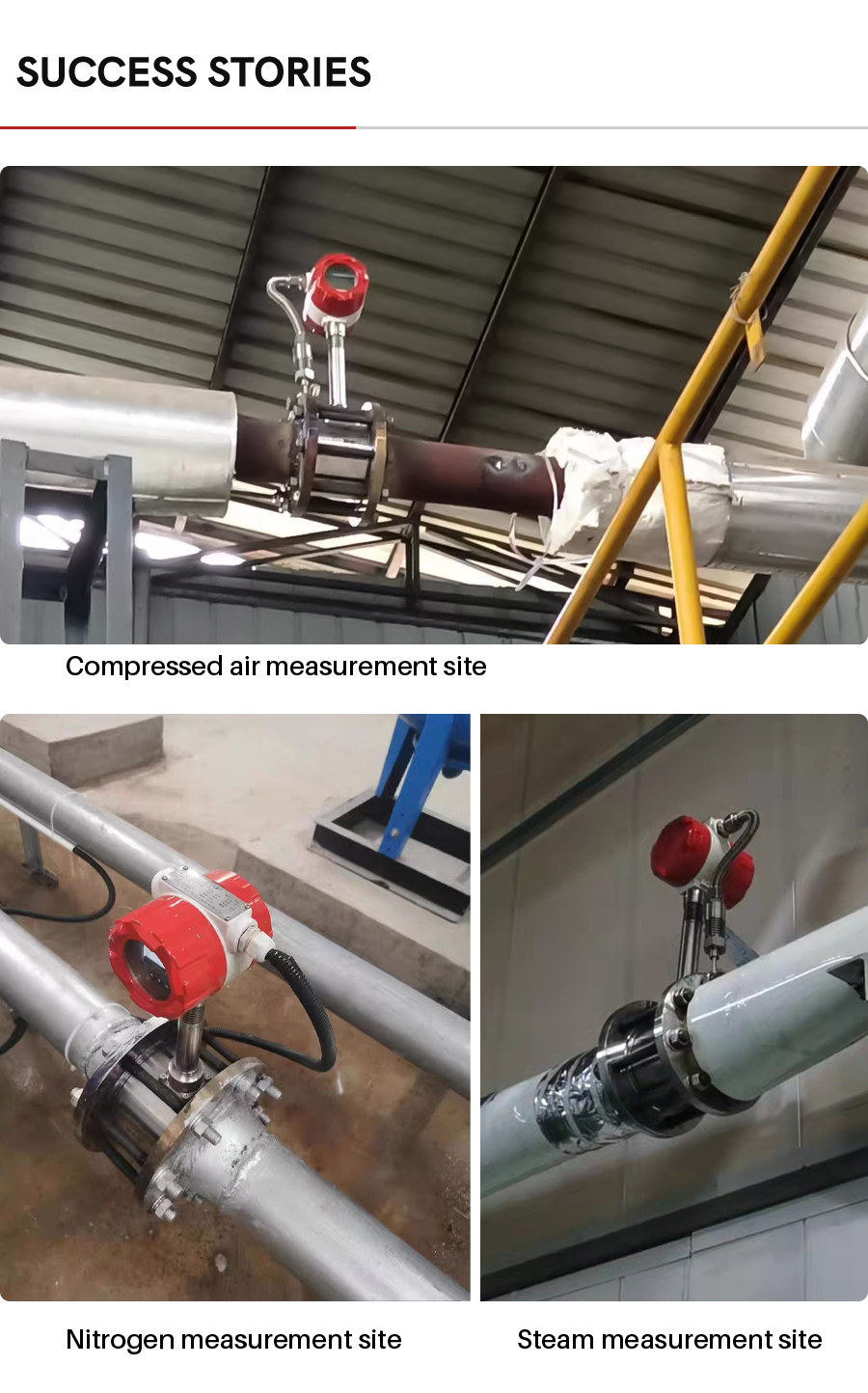

● Flow measurement of steam, compressed air, etc.
Contact now
Technical support
Download
    The vortex flowmeter is a velocity flow instrument that is suitable for flow measurement, measurement and control of liquids, steam and most gases. The vortex flowmeter has a reasonable design powerful functions,has an excellent multi-segment linear correction function; it adopts a fine and low-power consumption 45*30 full dot matrix LCD display, which is clear and intuitive and easy to operate; RS485 or HART communication can meet the needs of users. demand; a variety of compensation algorithms can meet almost all flow compensation calculations.

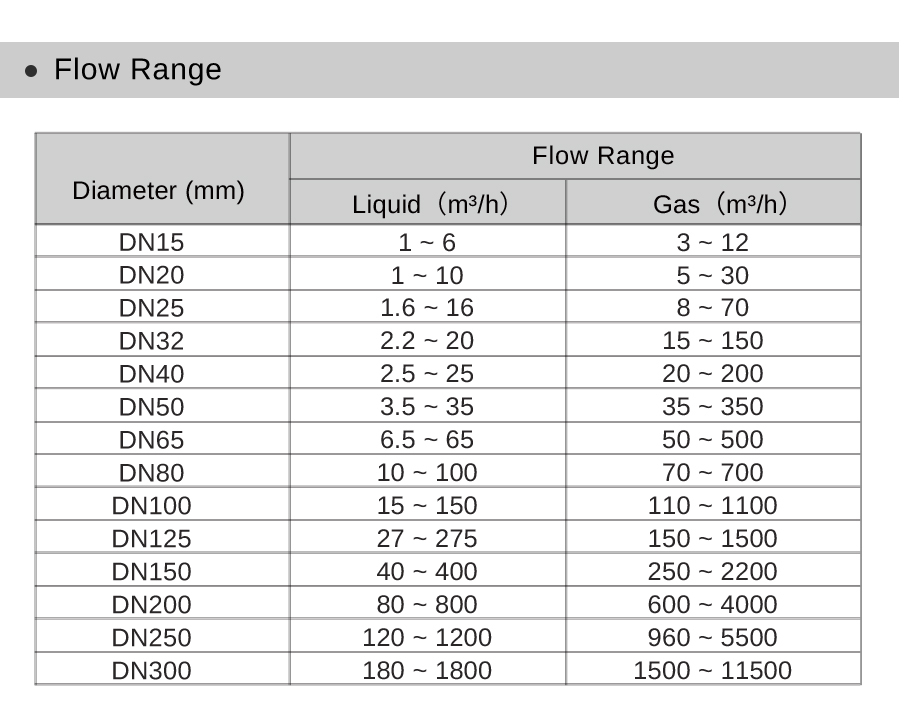

    Diameter DN

    15、20、25、32、40、50、65、80、100、125、150、200、250、300......

    Pressure Level

    1.6 MPa (>=1.6MPa，customize)

    Temp and medium

    Medium: liquid,gas,steam;temperature: -20~250°C;250~350°C

    Body material

    SS304;SS316L customize

    Vibration

    0.2g

    Accurancy

    1.0 %; 1.5%;2.5 %

    Turn down

    1:6;1:10; 1:20

    Power supply

    3.6V battery;DC24V

    Output

    Pulse、4~20mA、RS485、Hart

    EX sign

    ExdII CT6 Gb

    Protection level

    IP65;IP68

    Conditions

    Temp:-20~55℃;humidity: 5~95%;Pressure: 86~106KPa

    Display

    no display; LCD display

    Electri Interface

    M20X1.5;NPT1/2
