Thermal Gas Mass Flow Meter

Measuring principle Thermal mass flowmeter consists of sensor, signal analysis, processing and control unit.One part of the sensor measures temperature and the other part is used for heating.The former monitors the actual process temperature value;The latter maintains a constant temperature value so that it is always higher than the actual process temperature and remains constant with the process temperature.The greater the mass flow of the gas, the greater the cooling effect and the greater the energy required to maintain the differential temperature.Therefore, the mass flow rate of the measured gas can be obtained by measuring the energy of the heater.Product application. Compressed air/gas in boiler room or dryer/carbon dioxide gas in distillery/methane gas in sewage treatment plant and aeration/generated gas (such as argon, nitrogen, carbon dioxide, helium, oxygen)/gas leak detection

Performance

Technical Parameters

Struct

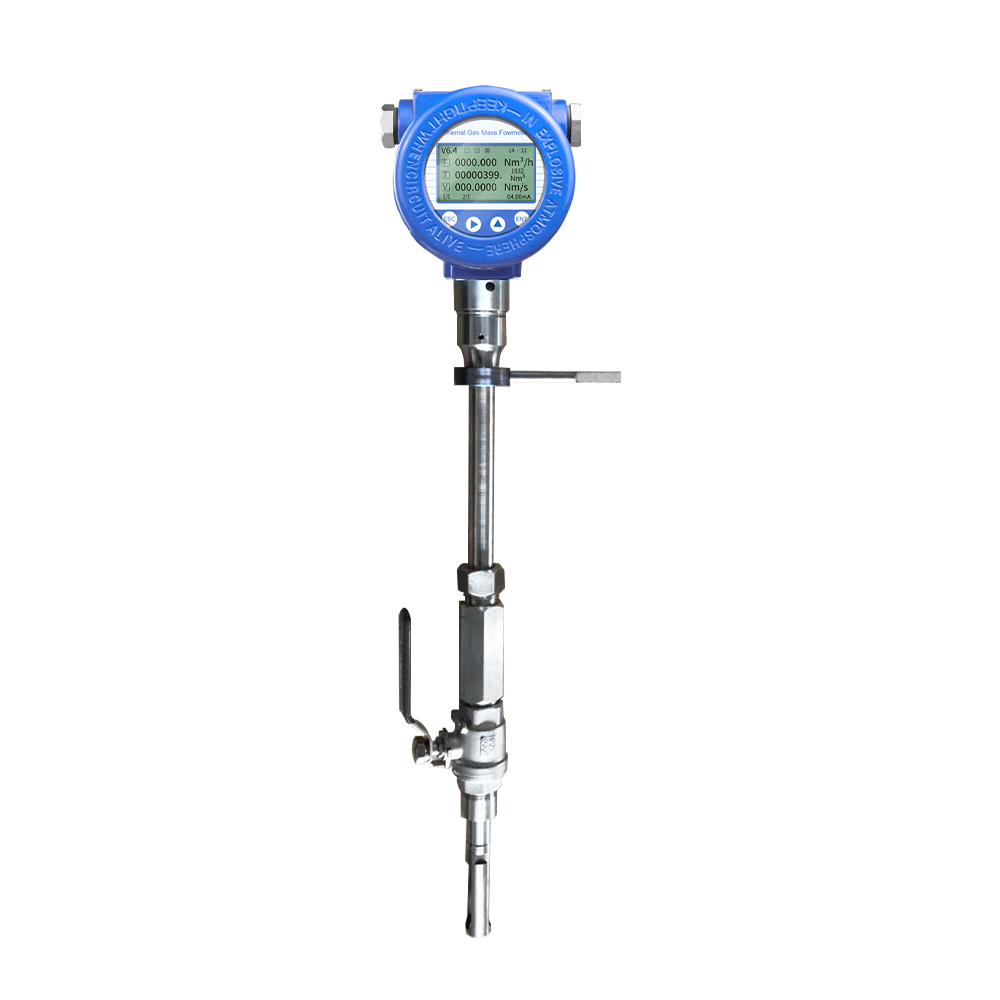

Plug-in

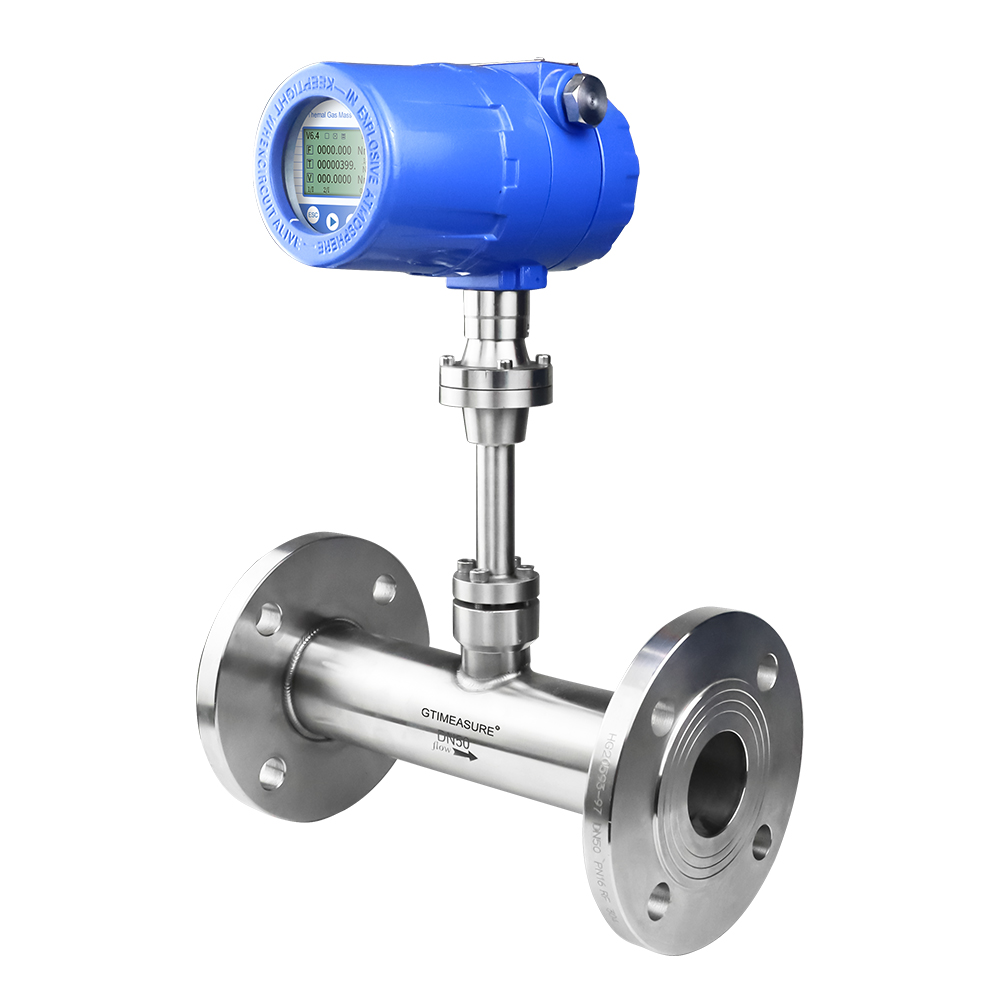

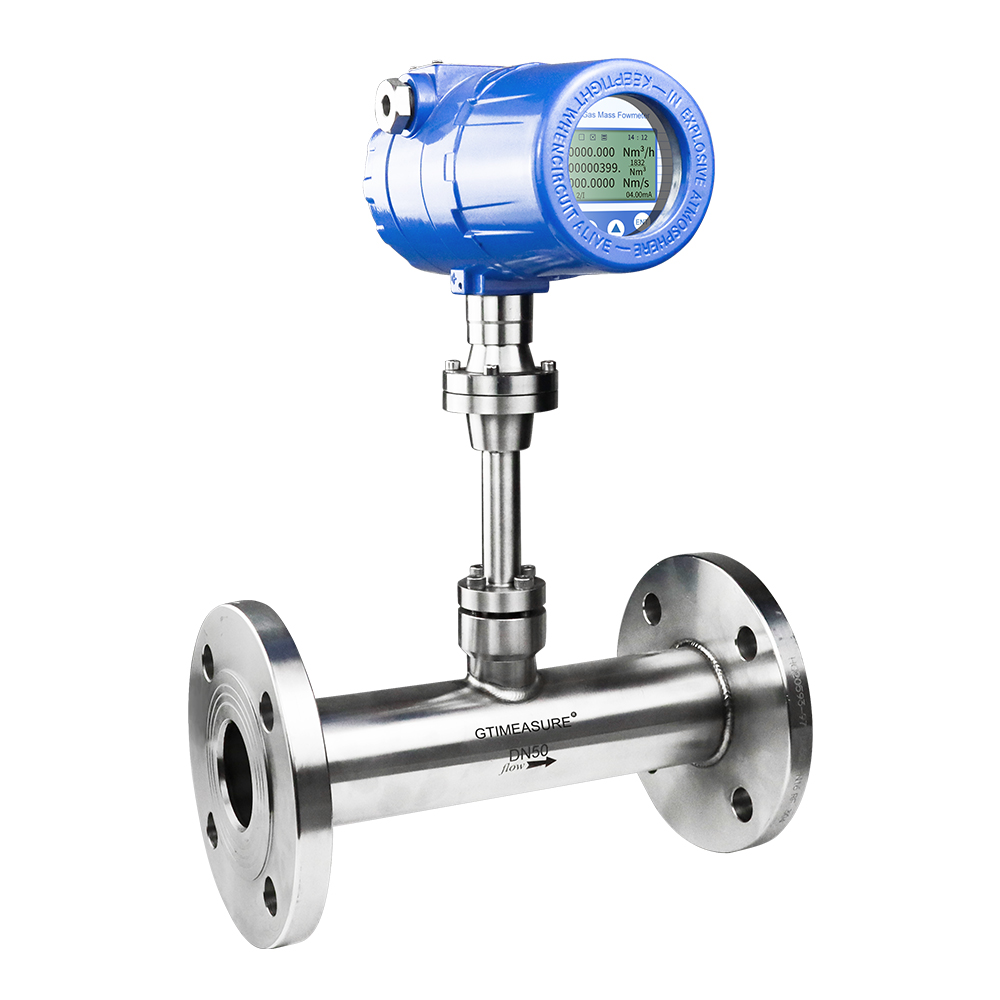

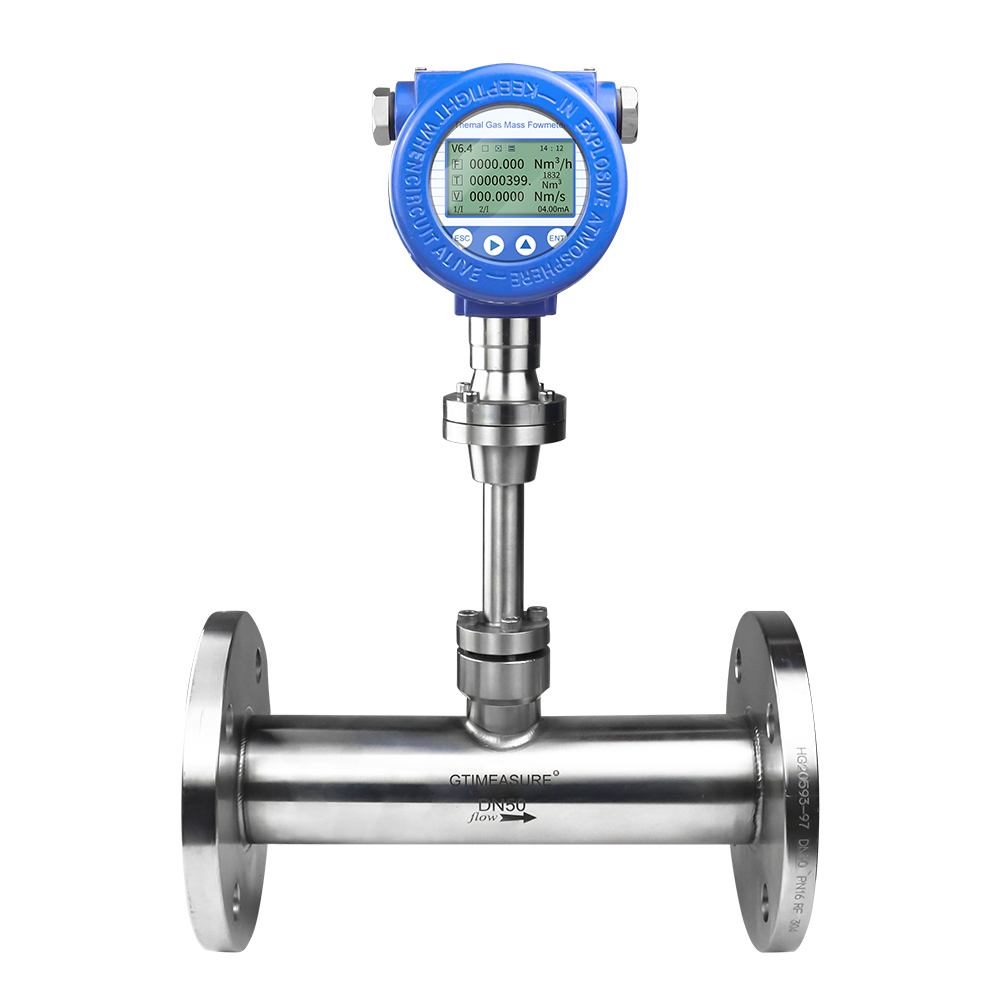

Pipeline

Media

Various gases (except acetylene gas)

Pipe Range

DN100~2000mm

DN15~300mm

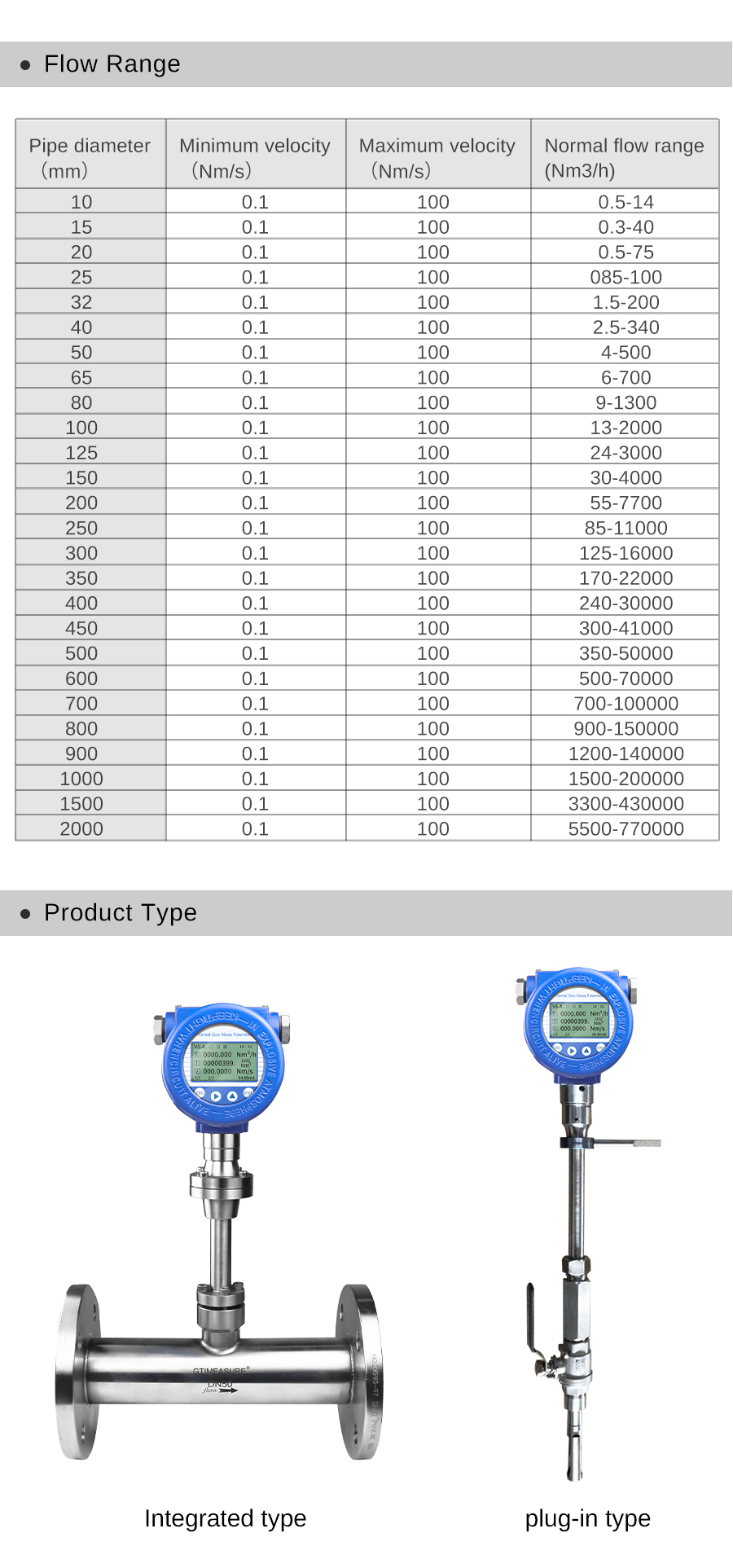

Flow range

0.1~120Nm/s

Accuracy

±1~2.5%

Temp

Sensor:-40~+160°C ,Convertor: -20~+45°C

Pressure

Media Pressure≤2.5MPa

Power

DC24VorAC220V≤18W

Reaction

1s

Output

4-20mA、Pulse、RS-485、HART

Alarm

2relay(keep open)、10A/220VAC、5A/24VDC

Display type

Carbon steel, stainless steel, plastic, etc.

Material

M20X1.5;NPT1/2

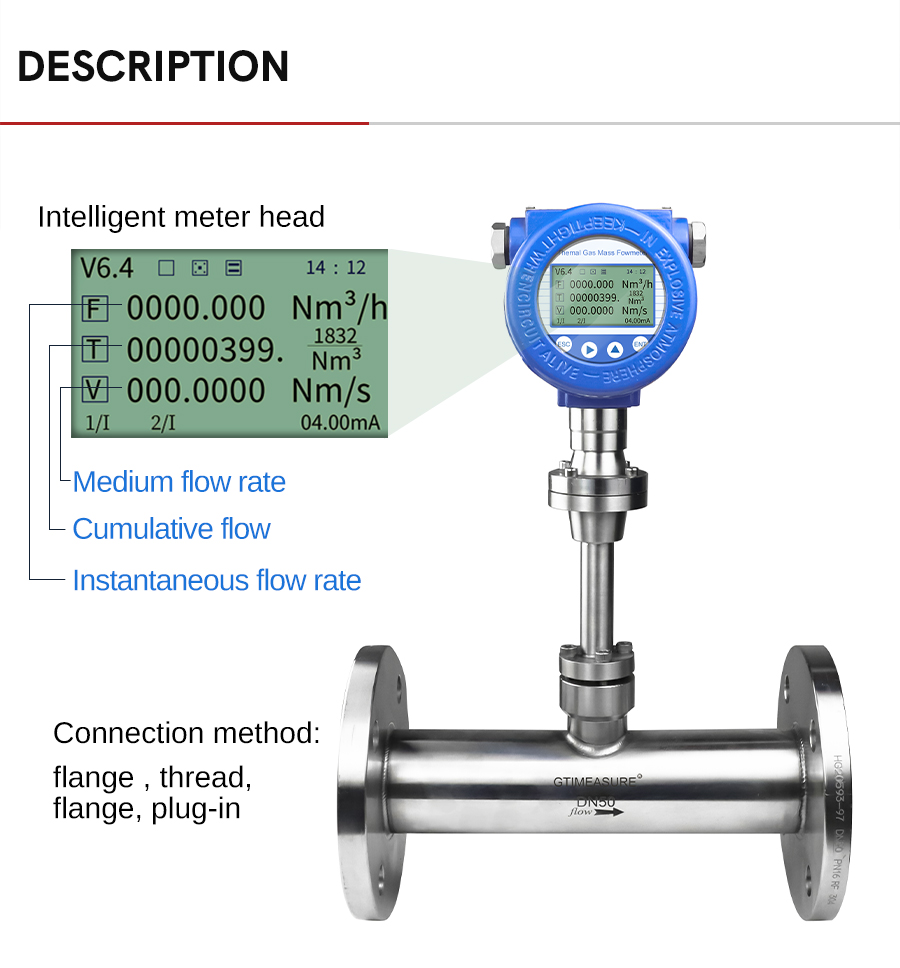

Display

LCD

Contents

Mass flow, volume flow, cumulative flow, time, running time, standard flow rate

Protect

IP65

Sensor

Stainless steel, carbon steel
