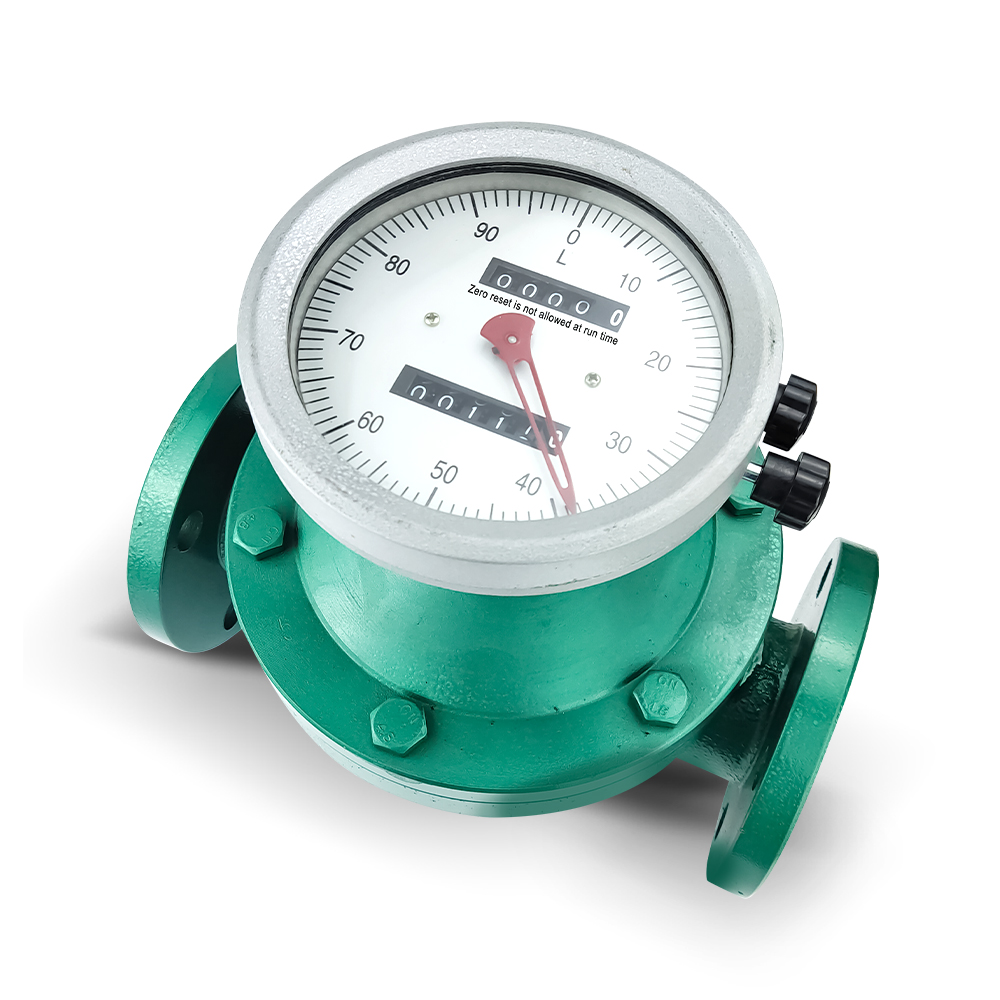

Oval gear flow meter

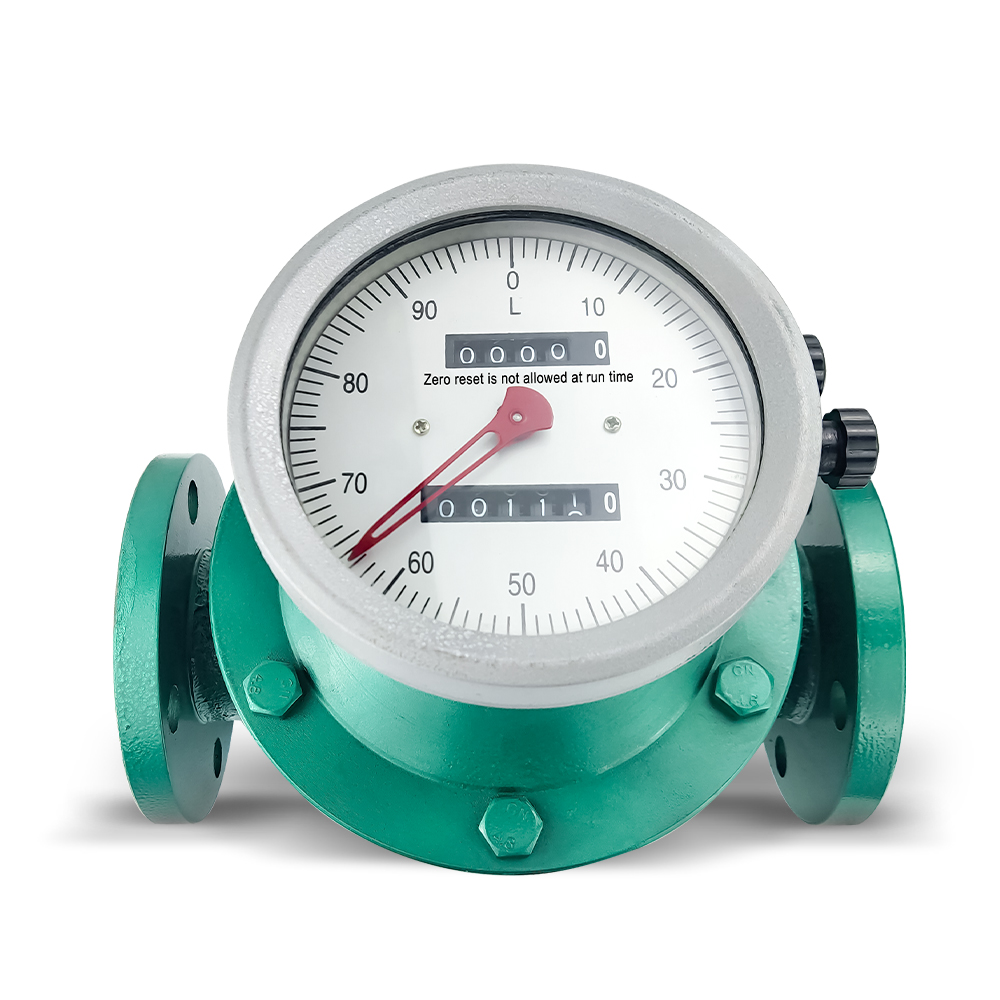

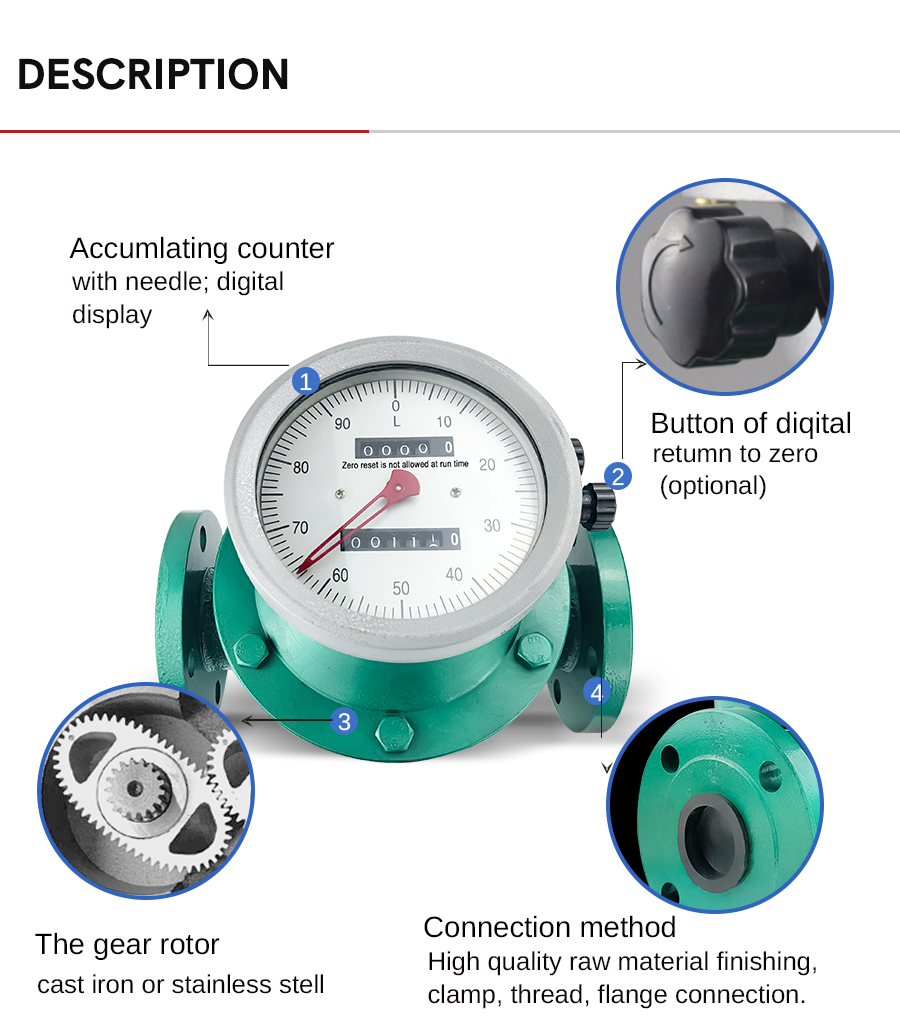

Oval gear flowmeter is a volumetric meter used for continuous or intermittent measurement and control of liquid flow in pipelines.It has many advantages, such as large measuring range, high accuracy, small pressure loss, strong viscosity adaptability, high temperature and high viscosity liquid body measurement, convenient calibration, easy installation and so on.Suitable for flow measurement in petroleum, chemical engineering, chemical fiber, transportation, trade, food, medicine and health departments. GTLC series oval gear flowmeter is equipped with pointer and word wheel accumulator device, which can directly display liquid flow and instantaneous flow through the pipeline.In the counting mechanism, the combination of sending signal and electric display meter can realize accumulative, constant and instantaneous remote and centralized control.The meter can measure high temperature and high viscosity liquid by adding a heat dispersing device. Different liquids (acid, alkali, salt, organic solution, etc.) can be manufactured with different materials.

Characteristics

●A variety of materials available
●High temperature and high viscosity liquid measurement
●Return to zero with one click of the zero return handle

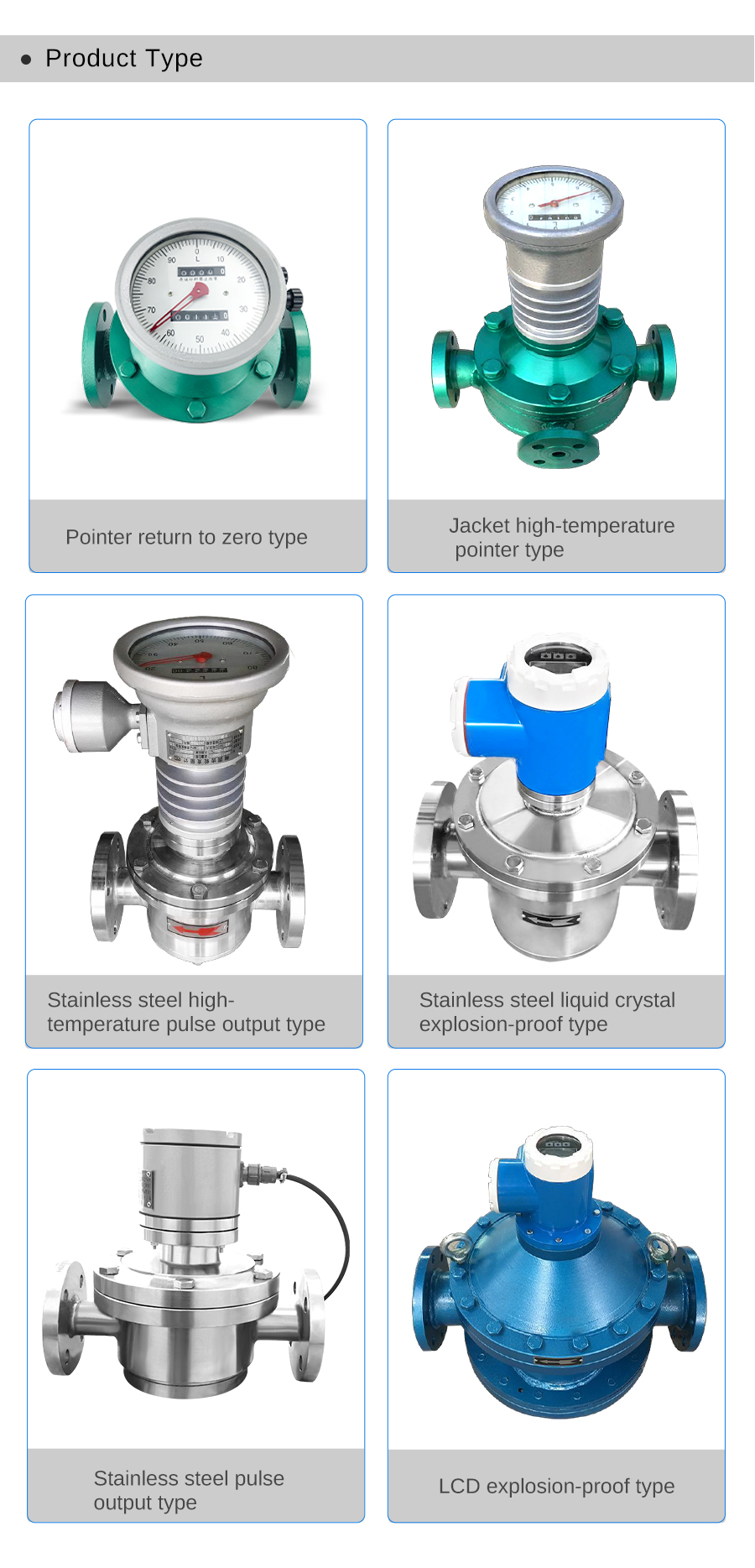

●Various models to meet different working conditions
Contact now
Technical support
Download

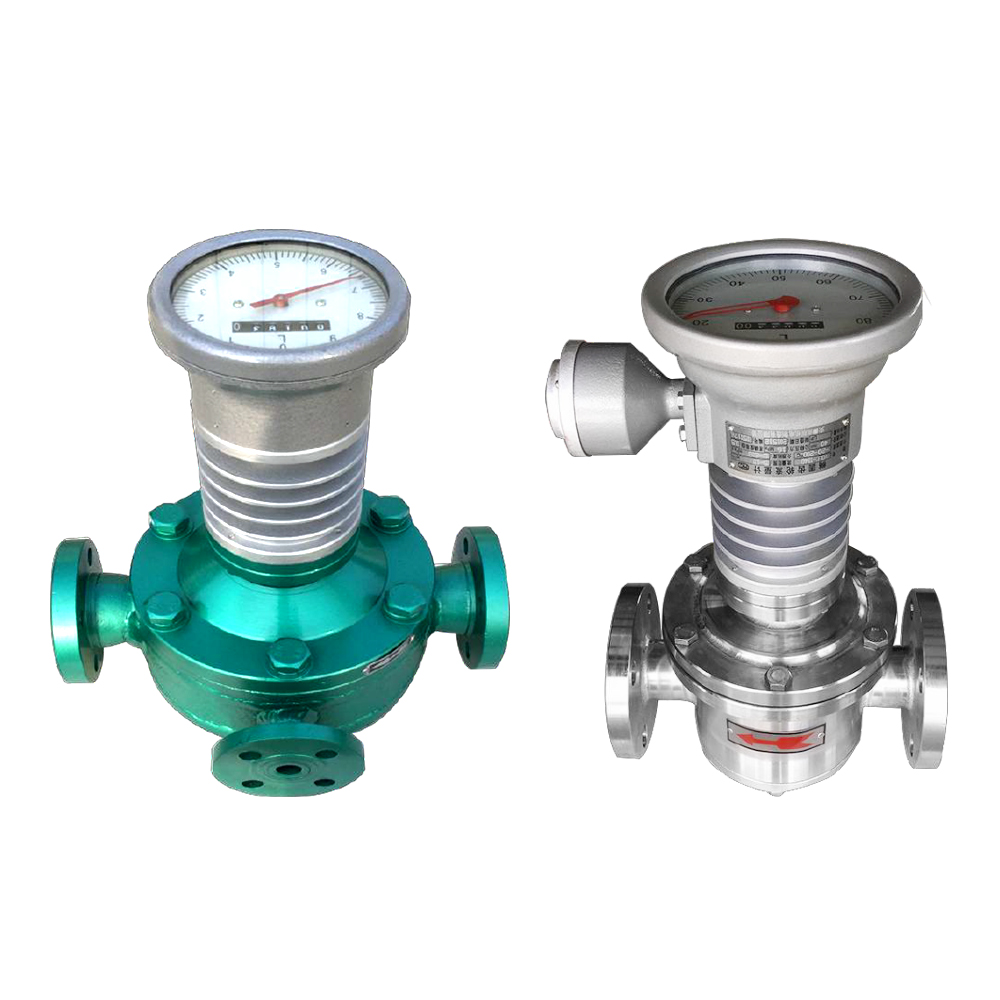

    Oval gear flowmeter is a volumetric meter used for continuous or intermittent measurement and control of liquid flow in pipelines. It has many advantages such as large measuring range, high accuracy, small pressure loss, strong viscosity adaptability, ability to measure high temperature and high viscosity liquids, convenient calibration, and installation recommendations. It is suitable for flow measurement in petroleum, chemical industry, chemical fiber, transportation, commerce, food, medicine and health and other departments. The LC series oval gear flowmeter is equipped with a pointer and a word wheel accumulation device, which can directly display the liquid flow rate and instantaneous flow rate flowing through the pipeline on site. Adding a signaling device to the counting mechanism and matching the electronic display instrument can realize remote centralized control of accumulation, quantification and instantaneous flow. It can measure high-temperature and high-viscosity liquids by installing a radiator or oval wheel with missing teeth.

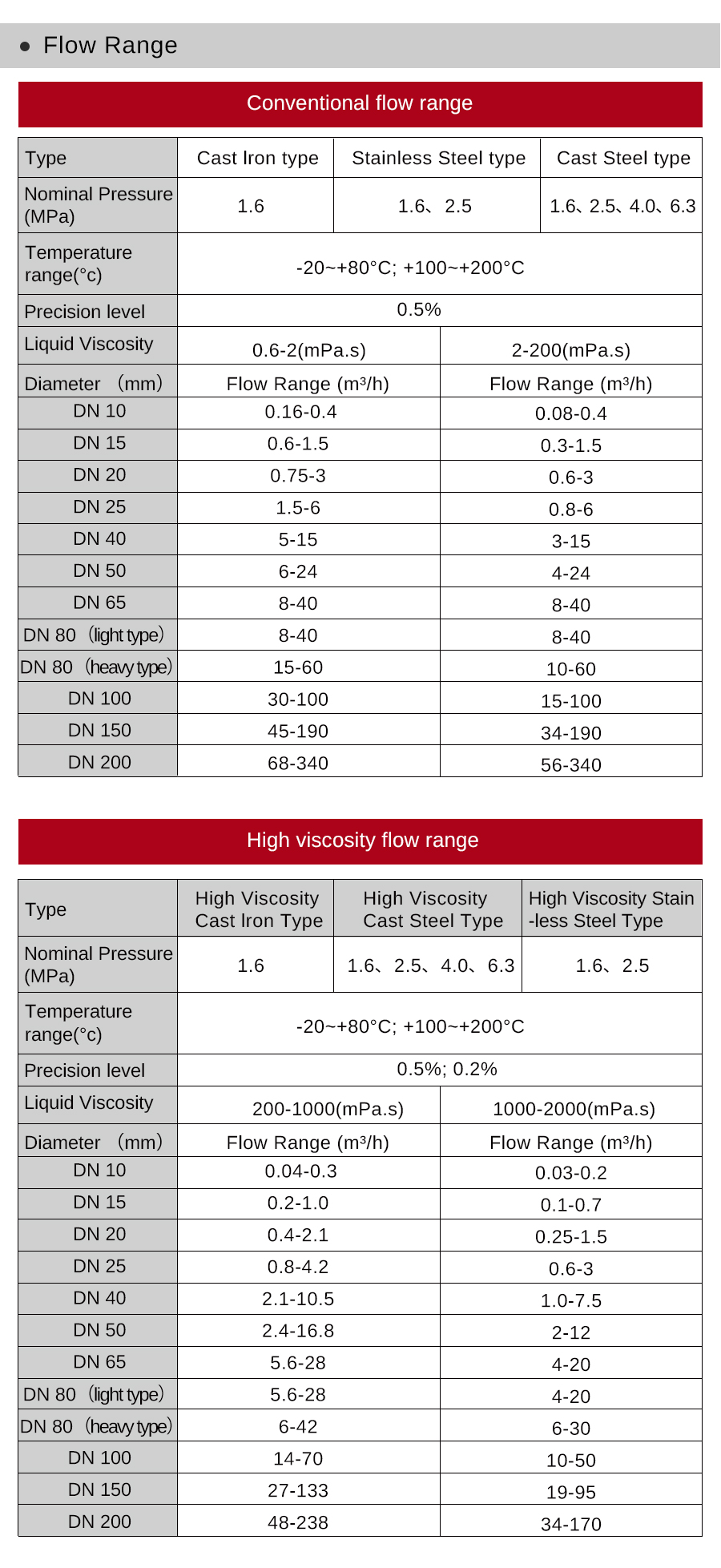

    DN(mm)

    DN10-DN200

    Connection

    Flange Thread

    Accuracy

    0.5% (0.296)

    Turn down

    1:5; 1:10

    Material

    Meter body: cast iron, cast steel, stainless steel; gear: cast iron, stainless steel

    Condition

    Temperature:-20C-+60C; Humidity:5%-90%6

    Temperature

    -20°C~+80°C;+100°C~+200°C

    Power

    Power supply:12/24VDC15%，works for 4-20mA; Pulse

    Output

    Pulse; 4-20mA;RS485

    Protect

    P65

    EX level

    Exd IlC T6 Gb
