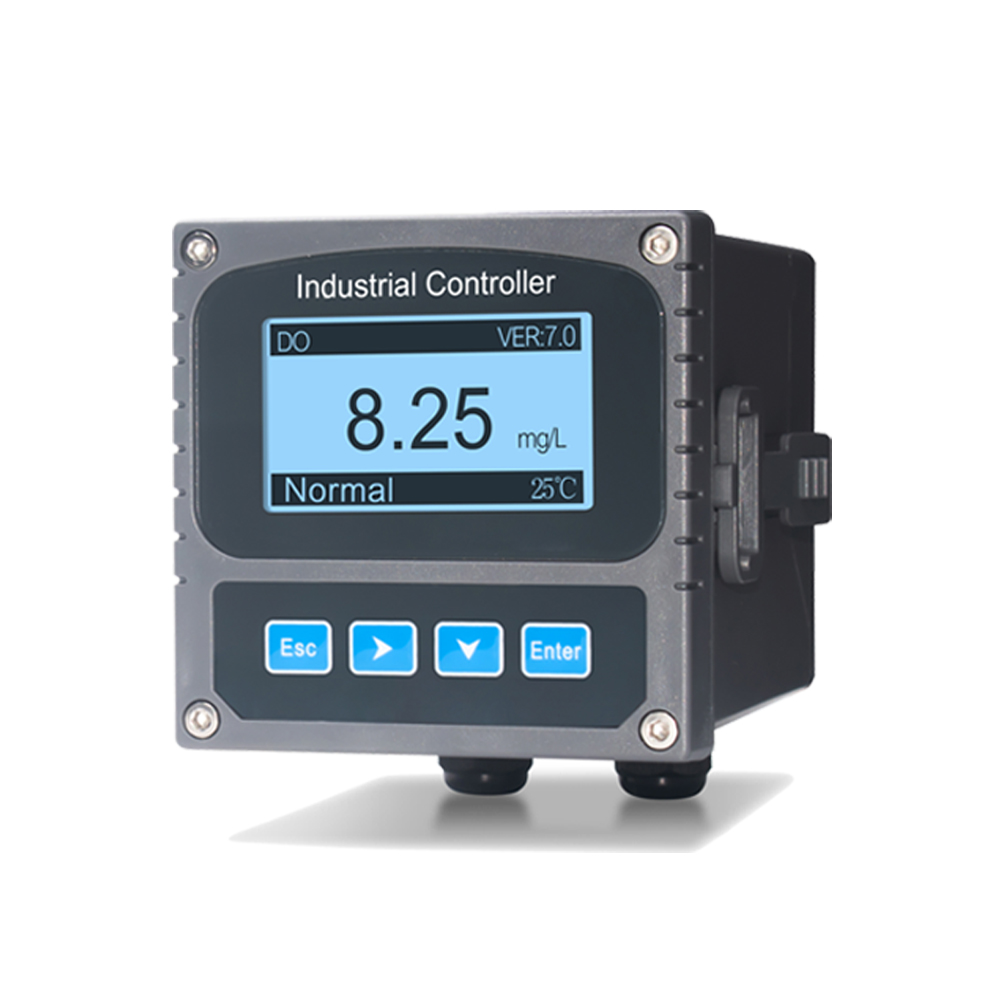

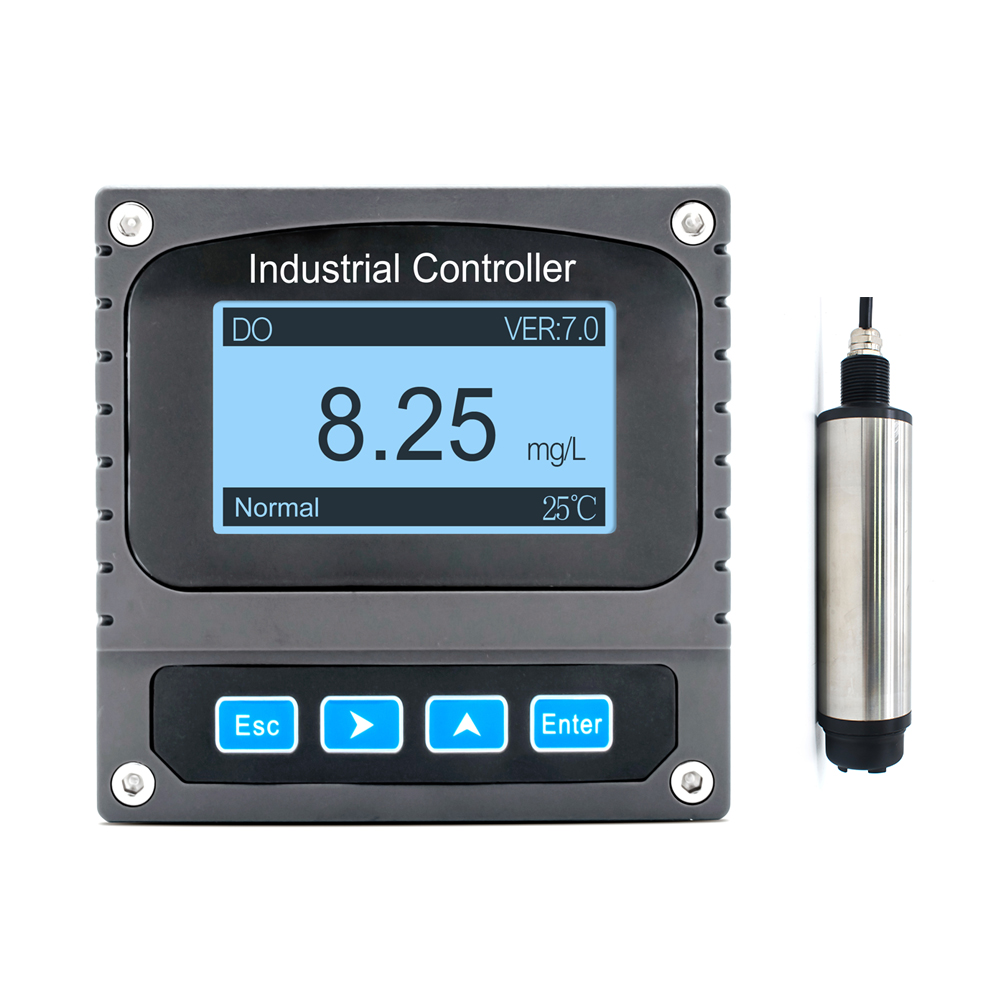

Dissolved Oxygen Meter

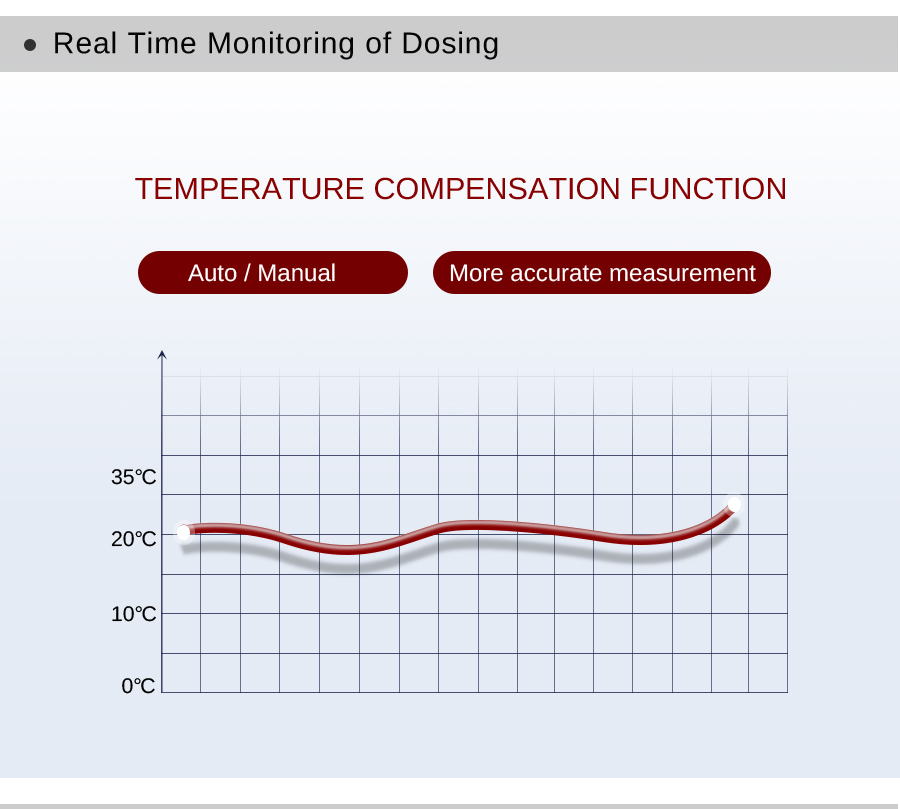

Dissolved oxygen Meters. (hereinafter referred to as the meter) is an on-line water quality monitor with a microprocessor. Widely used in industrial water, domestic water and sewage treatment, and aquaculture and so on. Continuous monitoring and control of oxygen content in aqueous solution. The instrument is equipped with LCD display; Intelligent English menu operation; With current or voltage output, measuring range can be set freely, high and low over-limit alarm prompt and control switch of two groups of relays, hysteresis range can be adjusted; Automatic or manual temperature compensation, electrode automatic calibration.

Characteristics

● IP65 protection level
● High and low volume alarm

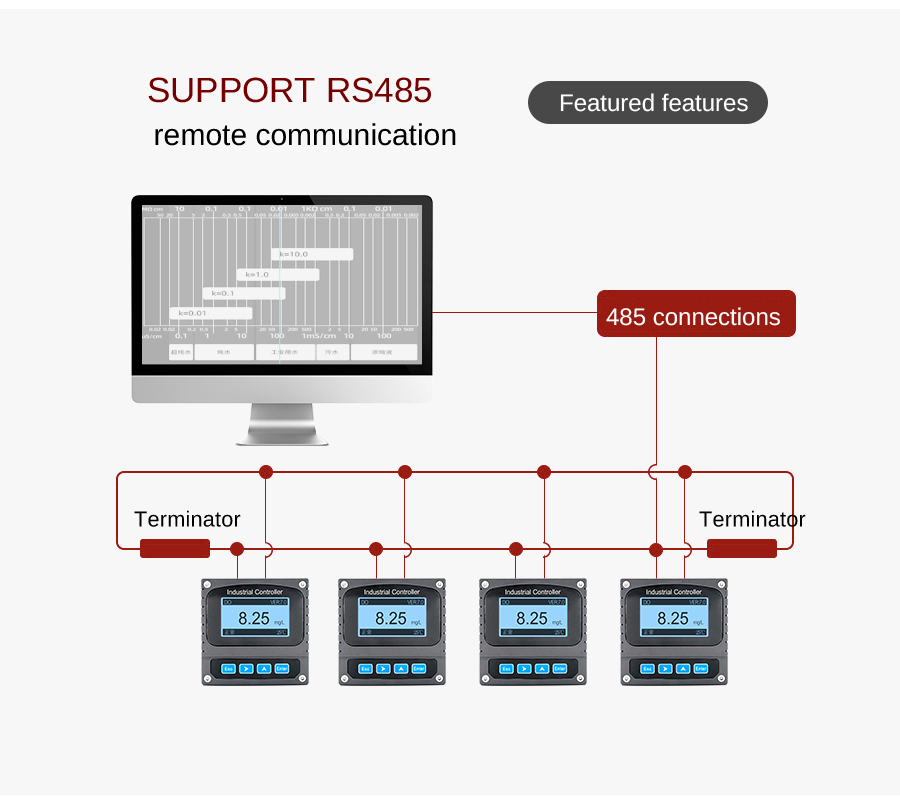

● RS485 communication

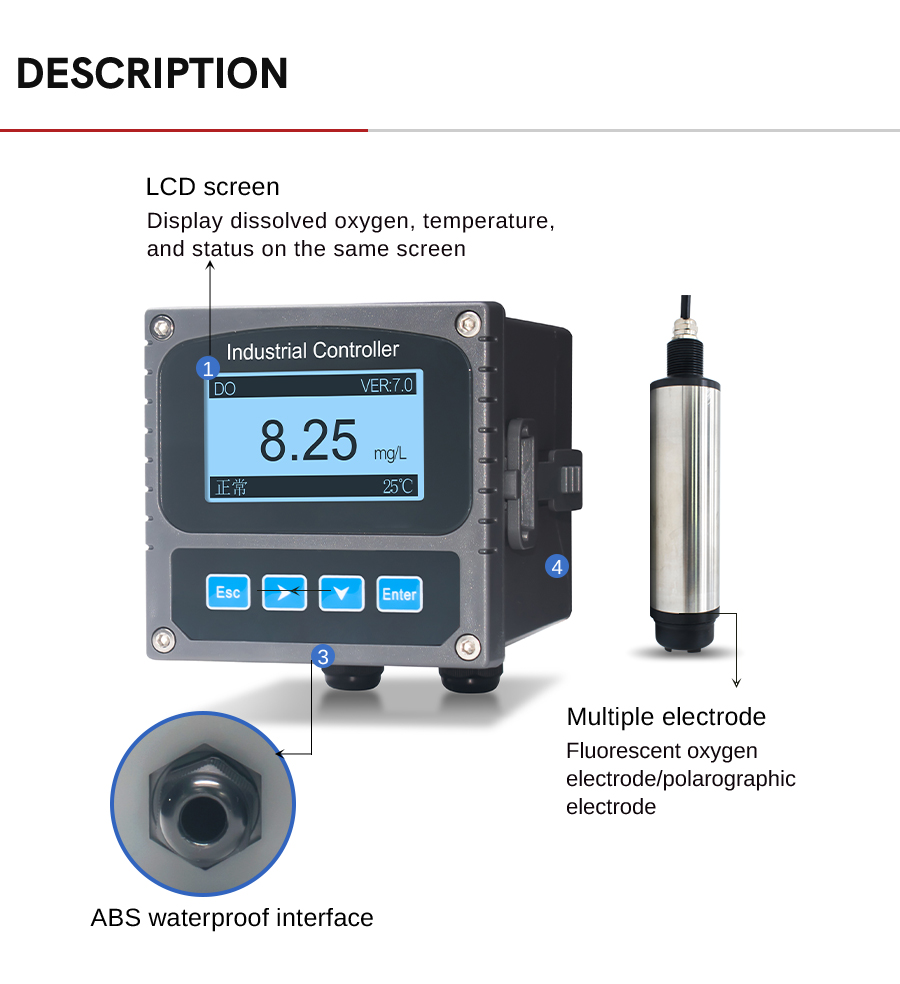

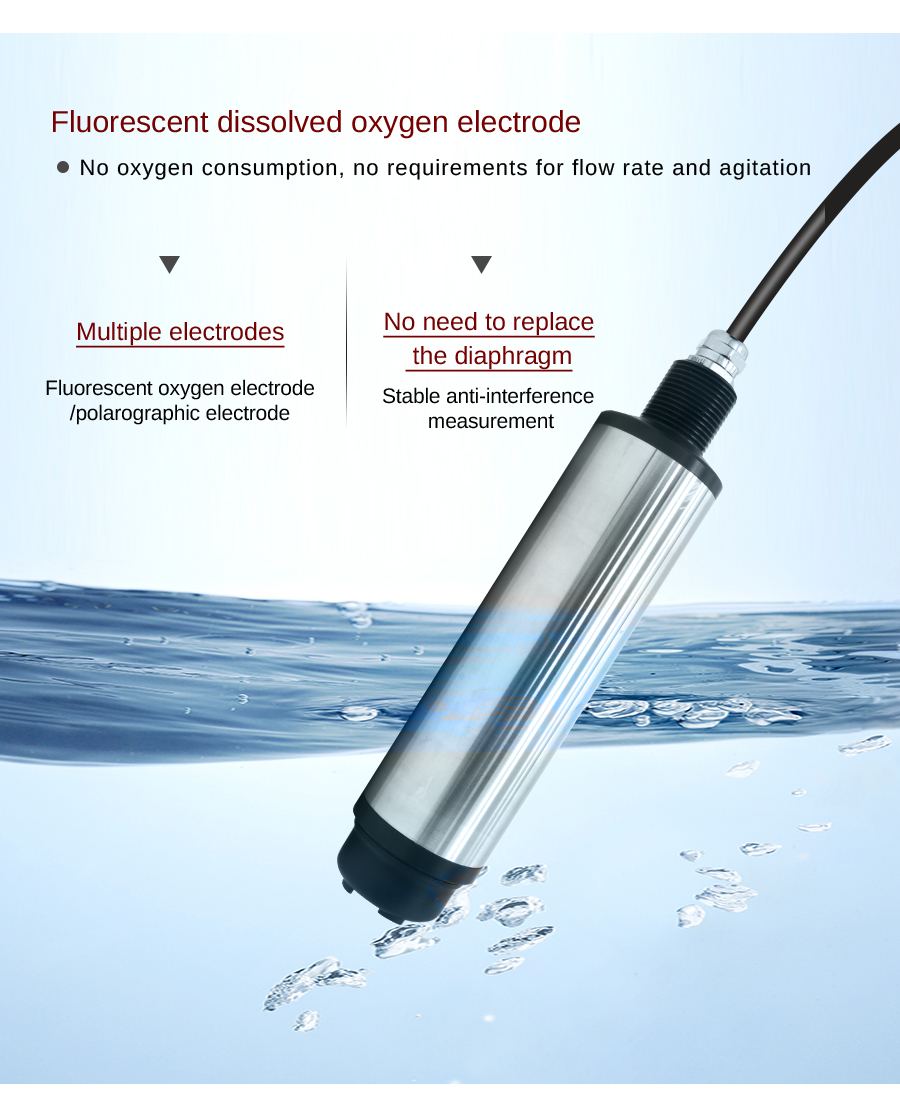

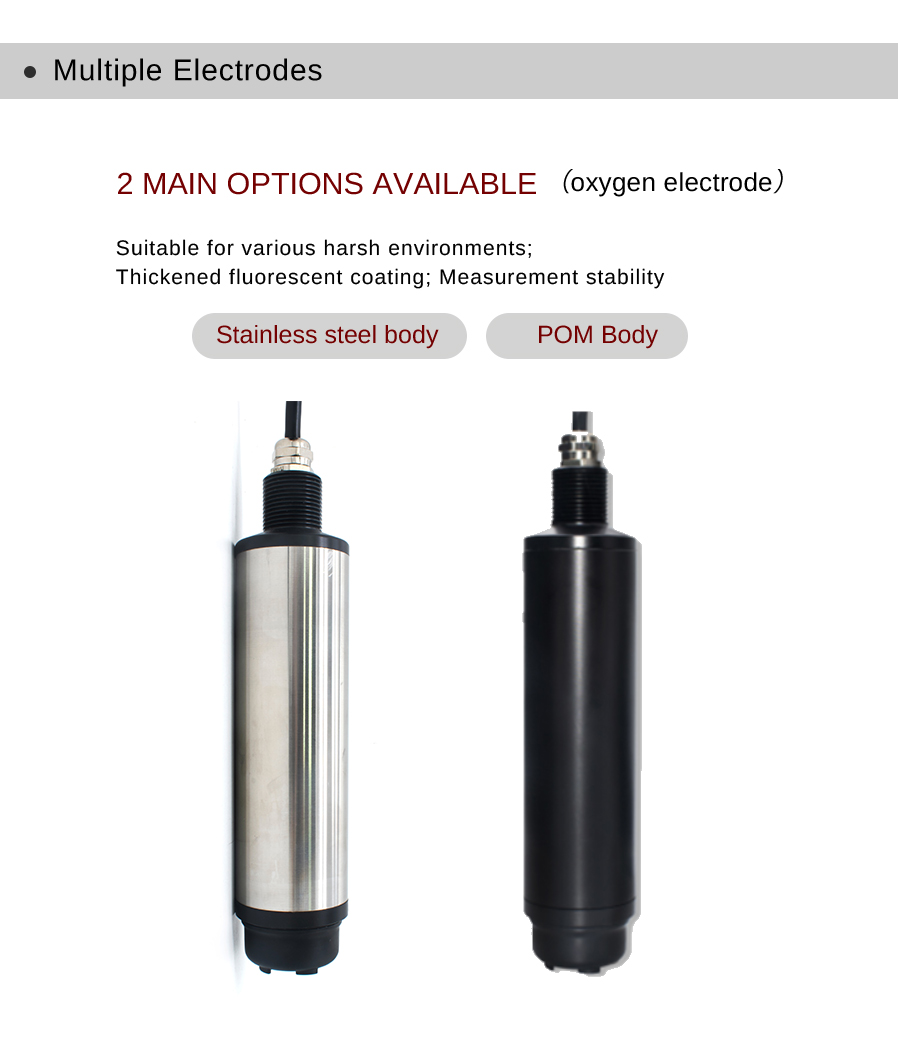

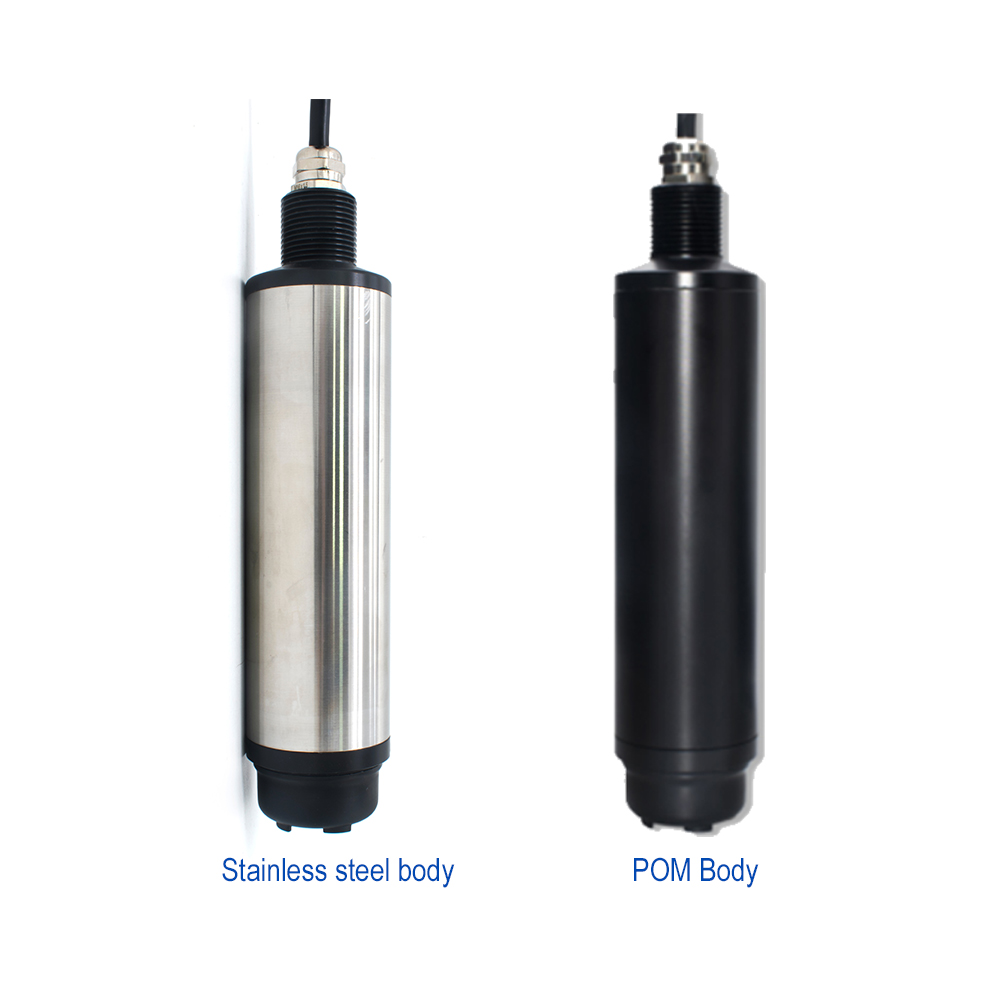

● A variety of electrode materials are available

    The industrial dissolved oxygen meter (hereinafter referred to as the meter) is an online water quality monitor with a microprocessor. The instrument adopts LCD display; intelligent Chinese menu operation; with current or voltage output, free setting of measurement range, high and low over-limit alarm prompts and two sets of relay control switches,adjustable hysteresis range; automatic or manual temperature compensation. electrode Automatic calibration.

    Name

    Online dissolved oxygen meter

    Range

    Dissolved oxygen: 0-20.0mg/L Temperature: 0-50(according to electrode)

    Accuracy

    Dissolved oxygen:1%F.S Temperature: +0.3

    Compensation

    automatic or manual

    Resolution

    Dissolved oxygen:0.01mg/L Temperature: 0.1

    Stability

    Under normal temperature and constant pressure, the drift is 2%F.S per week.

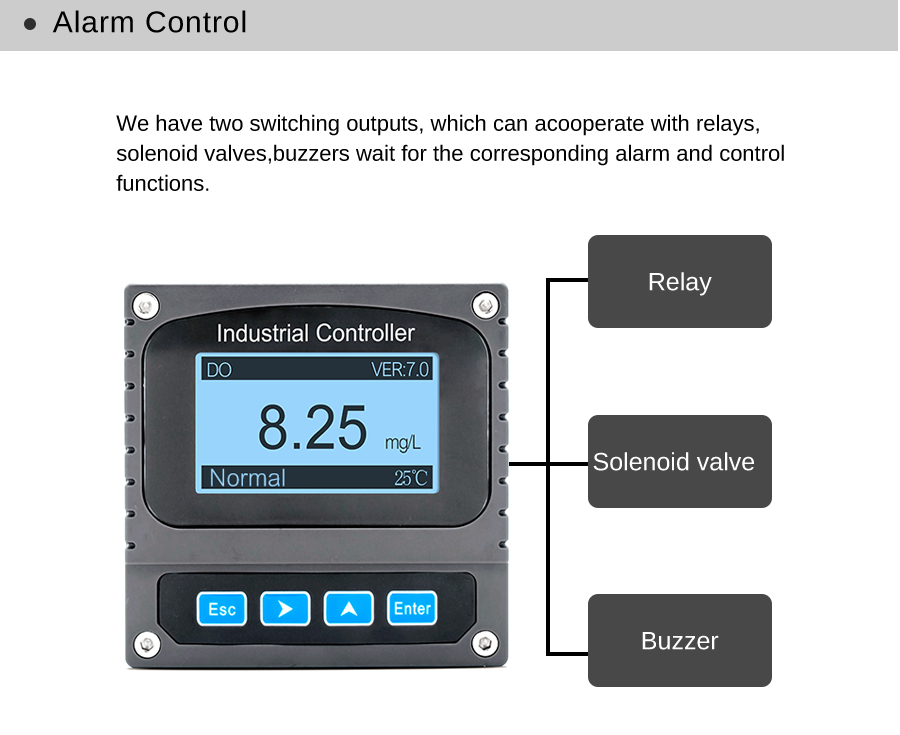

    Relay

    Group 2 5A 240VAC15A 28VDC or 120VAC

    Power supply

    85~265VAC or9~36VDC,power: 3W

    Output

    Standard 1 channel 4-20mA, optional 2 channels

    Communication

    Standard RS485 Modbus RTU

    Dimension

    98*98*130mm

    Opening size

    93*93mm

    Protection

    IP65

    Installation

    Panel-mounted/cabinet-mounted/embedded or wall-mounted

    Weight

    0.6kg

    Temperature

    -10~60; relative humidity: <90%; no strong magnetic field interference around
