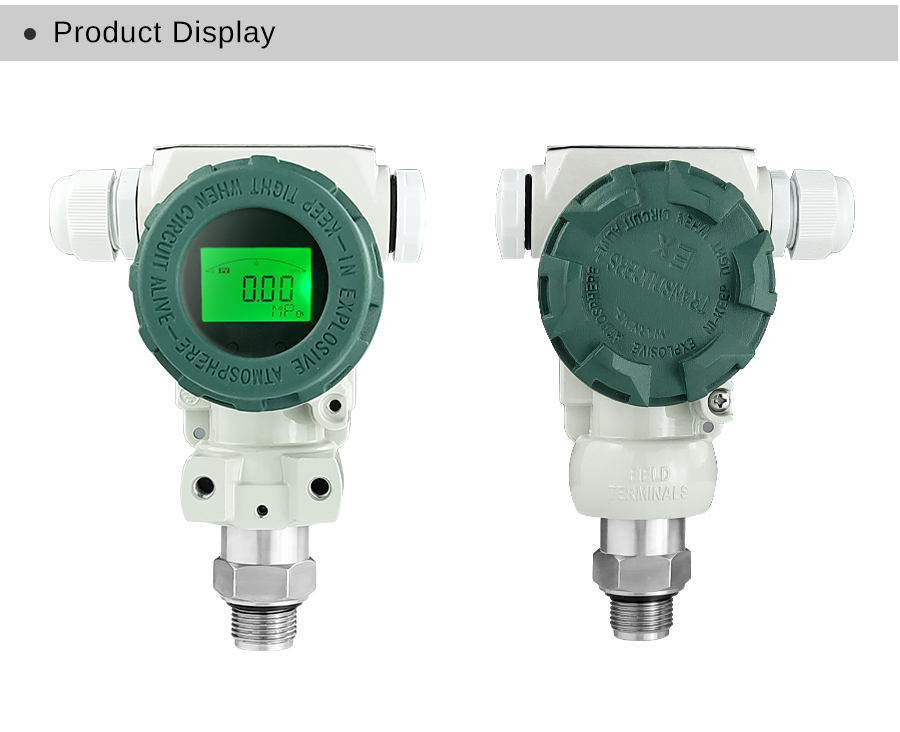

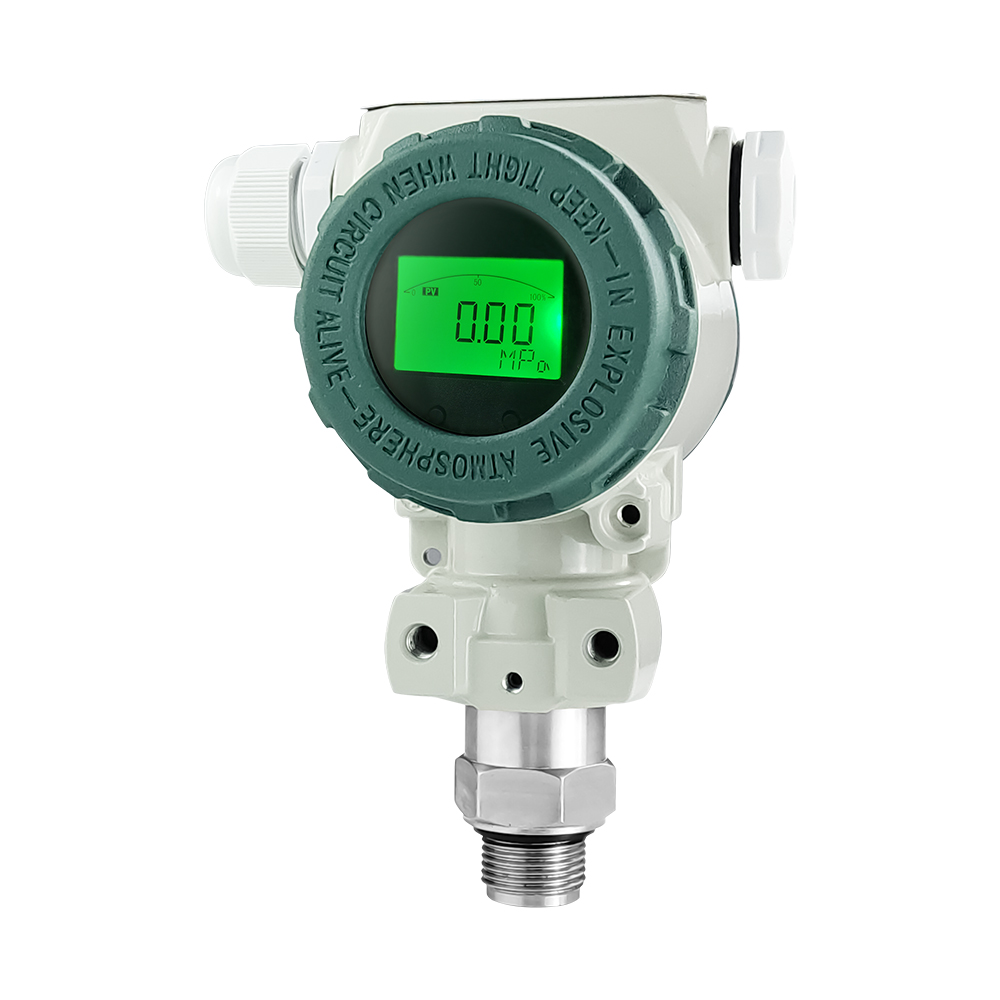

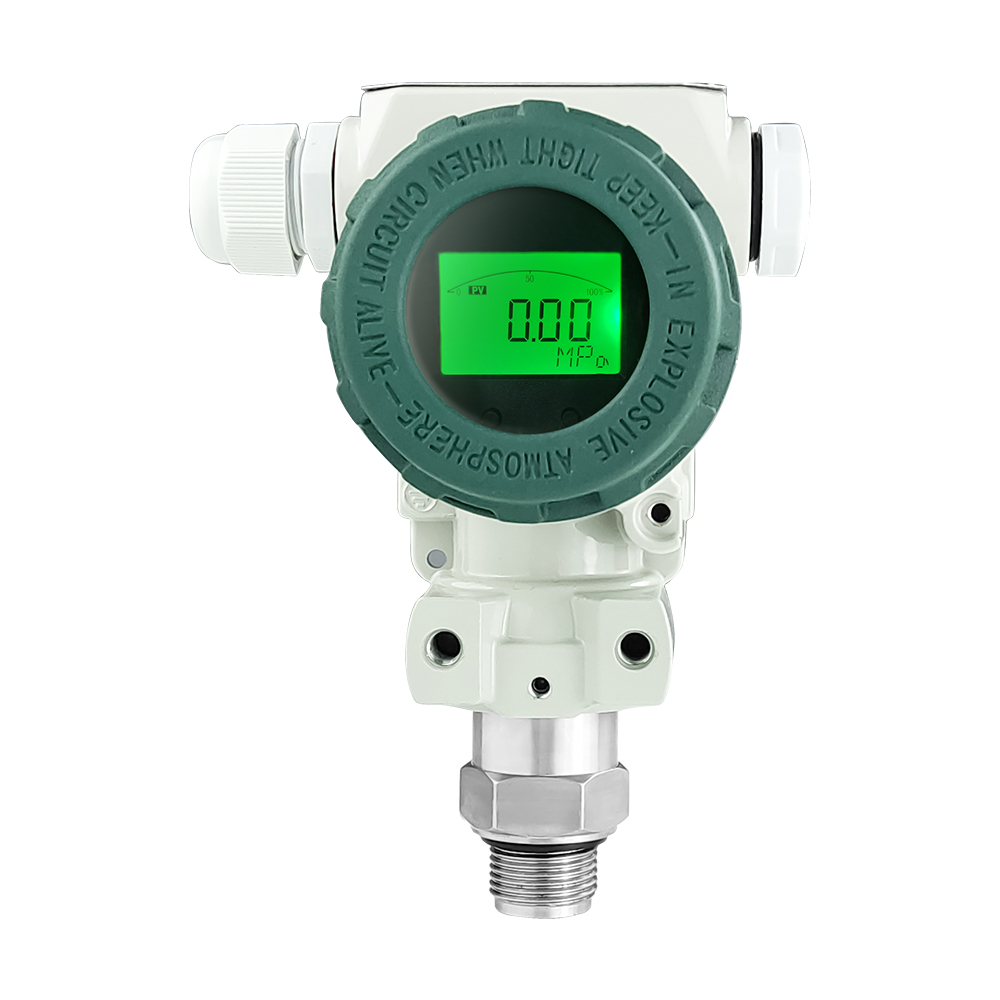

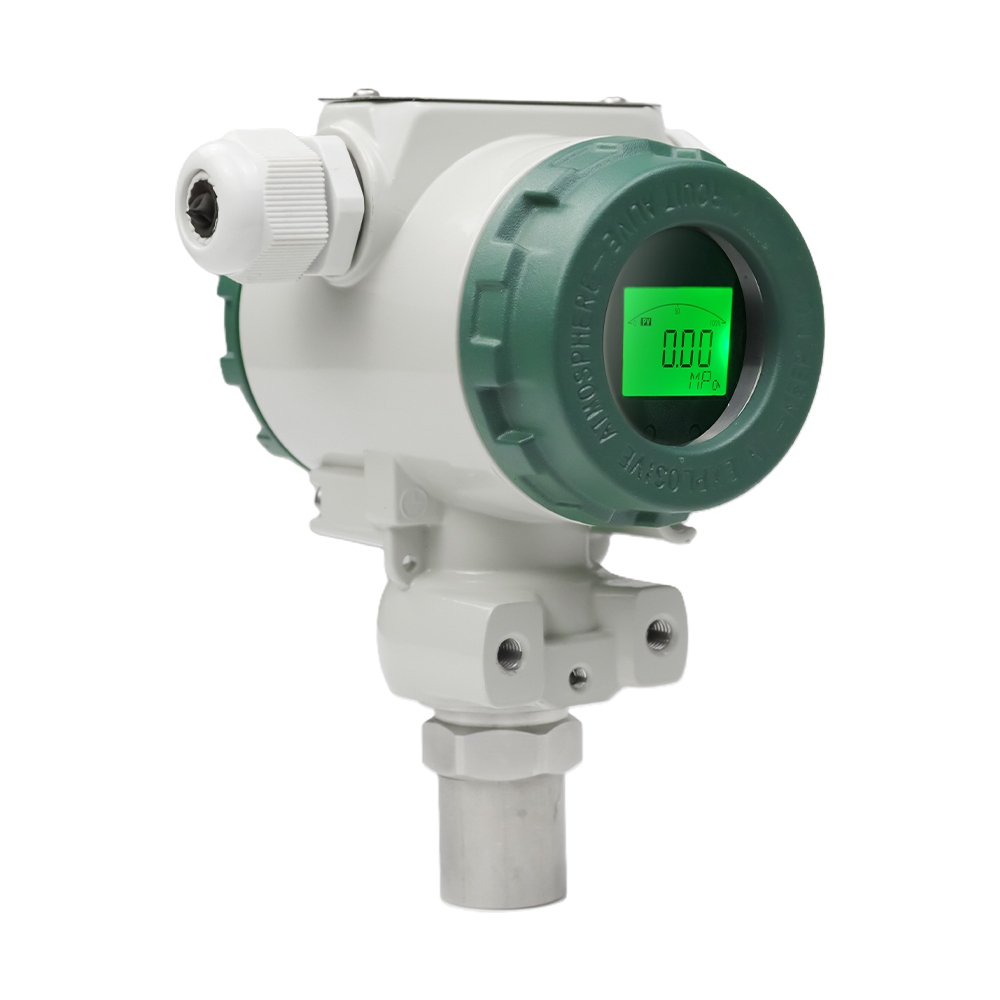

GT2088 Pressure transmitter

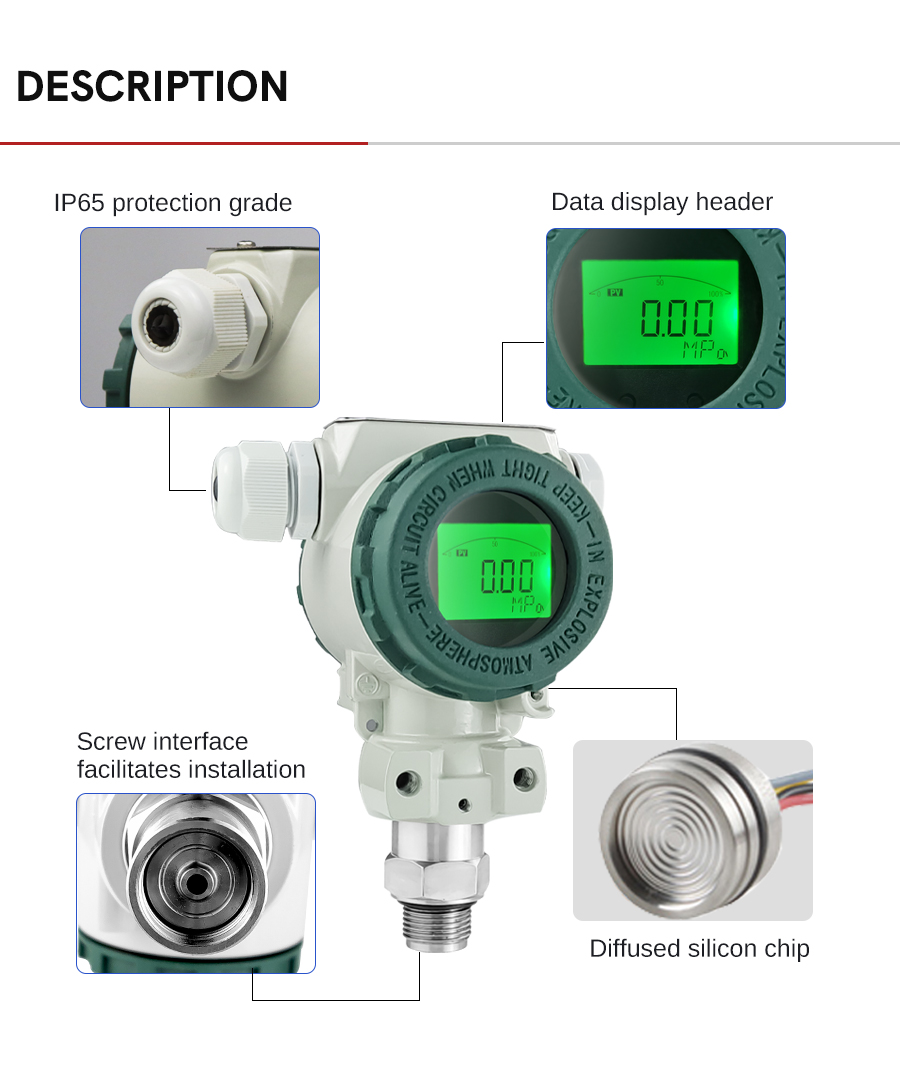

The pressure sensitive core of the pressure transmitter uses a high-performance silicon piezoresistive pressure oil-filled core. The internal dedicated integrated circuit converts the sensor millivolt signal into a standard voltage, current or frequency signal, which can be directly interfaced with a computer for control. Instruments, smart instruments or PLC can be easily connected. Long-distance transmission can use current output mode.

Characteristics

● Accuracy can reach 0.25%
● Digital display meter
● Compatible with multiple media
● Anti-vibration, anti-interference
Contact now
Technical support
Download
    The pressure transmitter uses a high-performance pressure sensing chip, combined with circuit processing and temperature compensation technology, to convert pressure changes into linear current or voltage signals. The product is small in size and easy to install. It is isolated and anti-corrosion with a stainless steel shell. It is suitable for measuring gases, liquids and other media that are compatible with the materials of the contact parts. The display pressure transmitter has HATR communication and has communication and self-diagnosis functions. Users use handheld terminals Or the fieldbus system can transmit, read, display and input all the working information and additional information of the transmitter over a long distance. Can be used to measure gauge pressure, negative pressure and absolute pressure. This product is widely used in water plants, refineries, sewage treatment plants, light industry, machinery and other industrial fields to measure the pressure of liquids, gases and steam.

    Measuring medium

    Gas, liquid, oil, etc. are compatible with 316 media

    Pressure type

    Gauge pressure, absolute pressure, sealed pressure, negative pressure

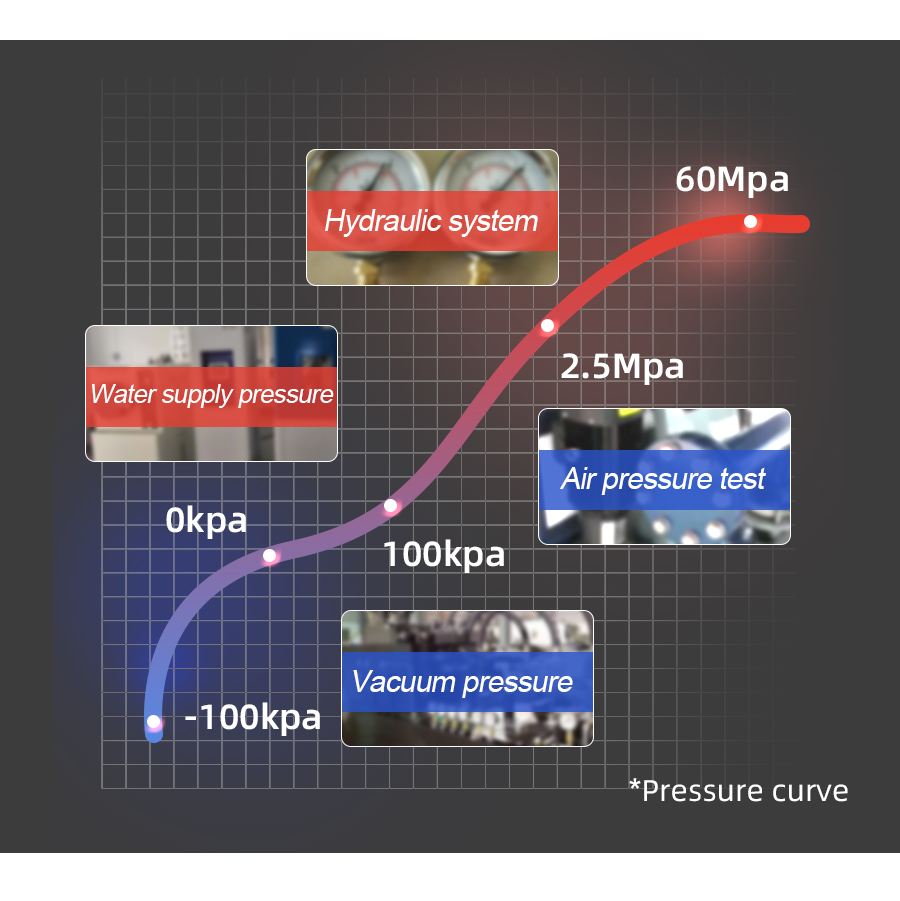

    Measuring range

    -0.1-100MPa

    Accuracy level

    0.1、0.25、0.5

    Overload capacity

    2 times the measuring range

    Power supply

    24VDC+10%

    Output signal

    4-20mA、0-5V、0-10V、RS485

    Display method

    5-digit LCD display

    Operation method

    Comes with 3-digit buttons

    Zero point migration

    Move the zero point and range by pressing the keys

    Operating temp

    -40-80℃

    Compensation temp

    20-70℃

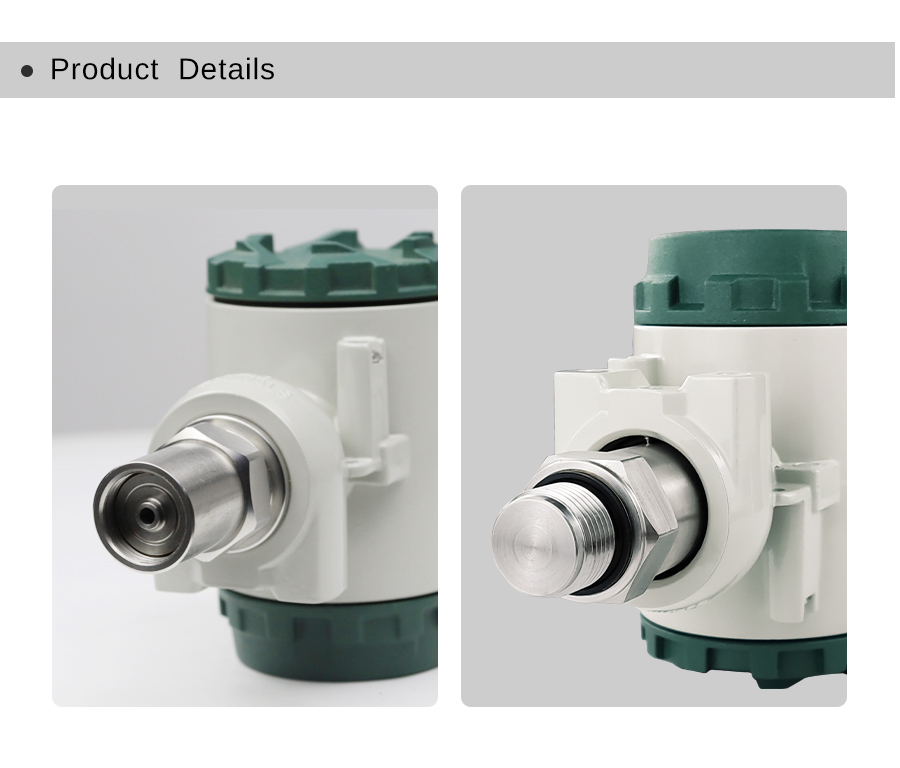

    Process connection

    M20x1.5 external thread or user specified

    Protection level

    P65

    Shell material

    Aluminium Alloy

    Diaphragm material

    1Cr18Ni9Ti
