Clamp-on Ultrasonic Flow Meter

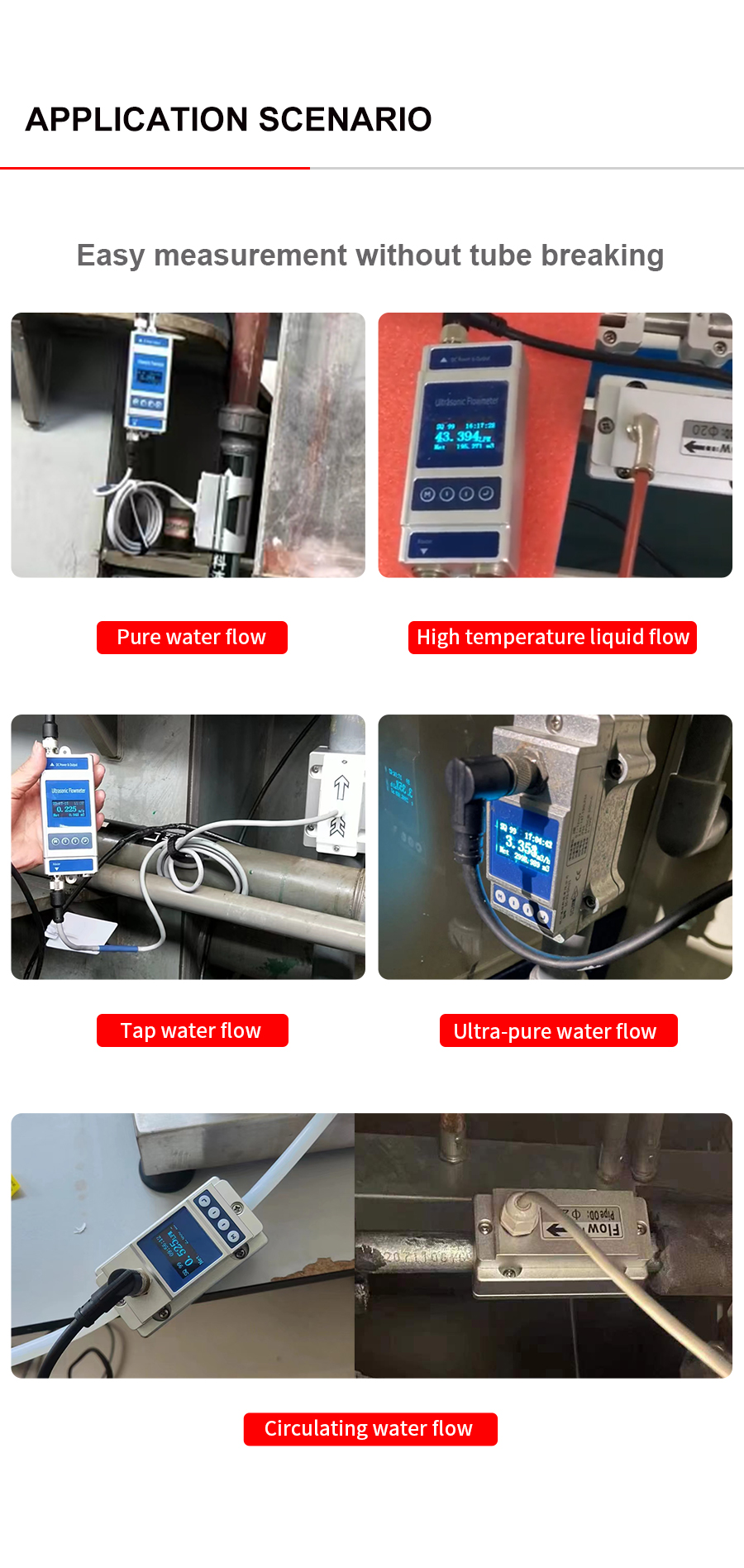

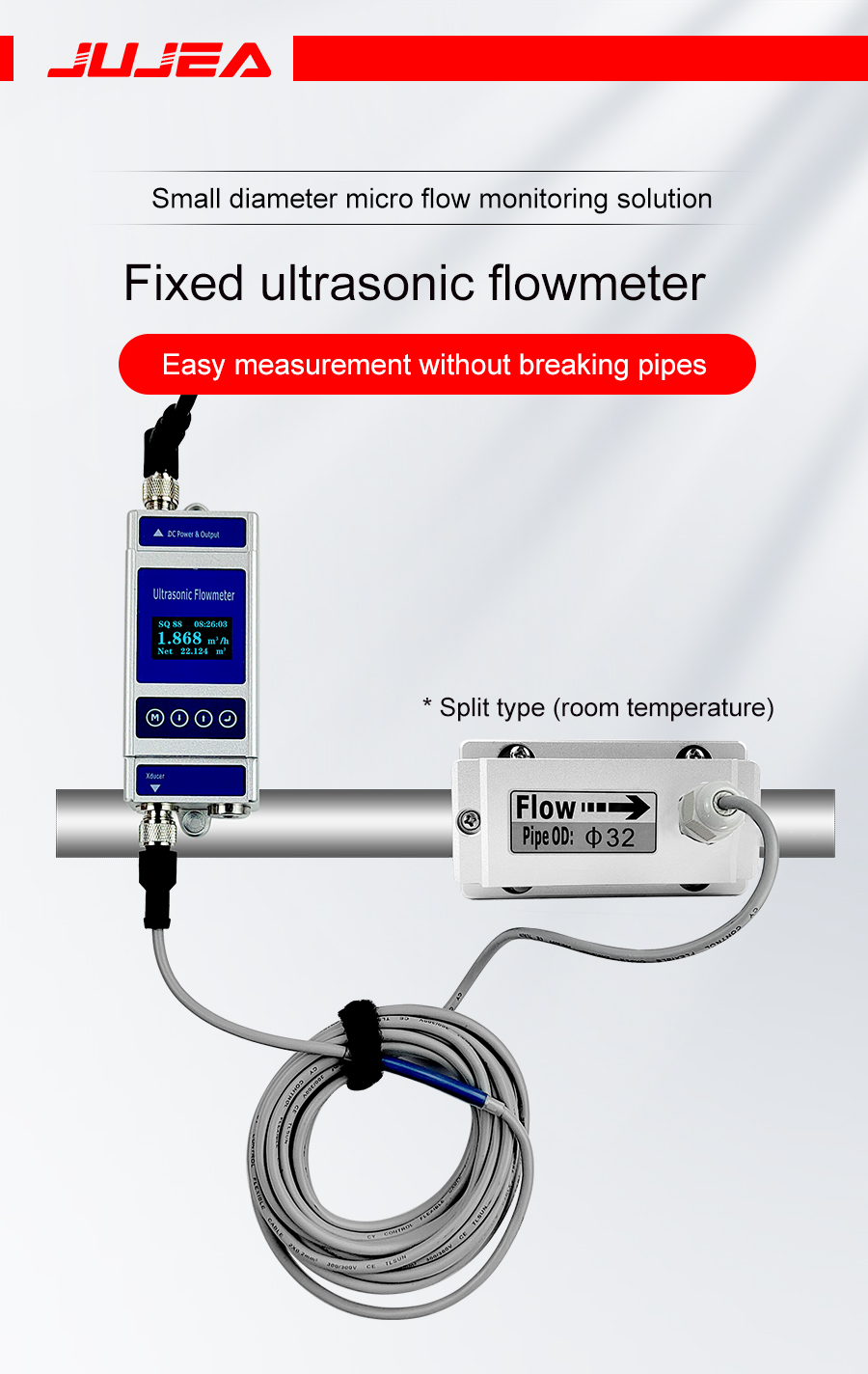

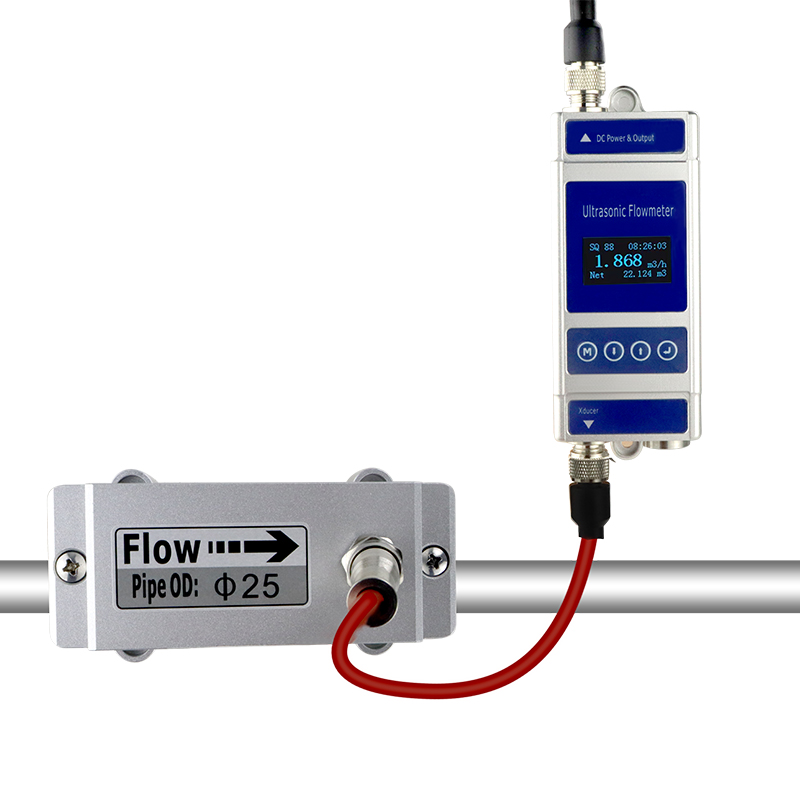

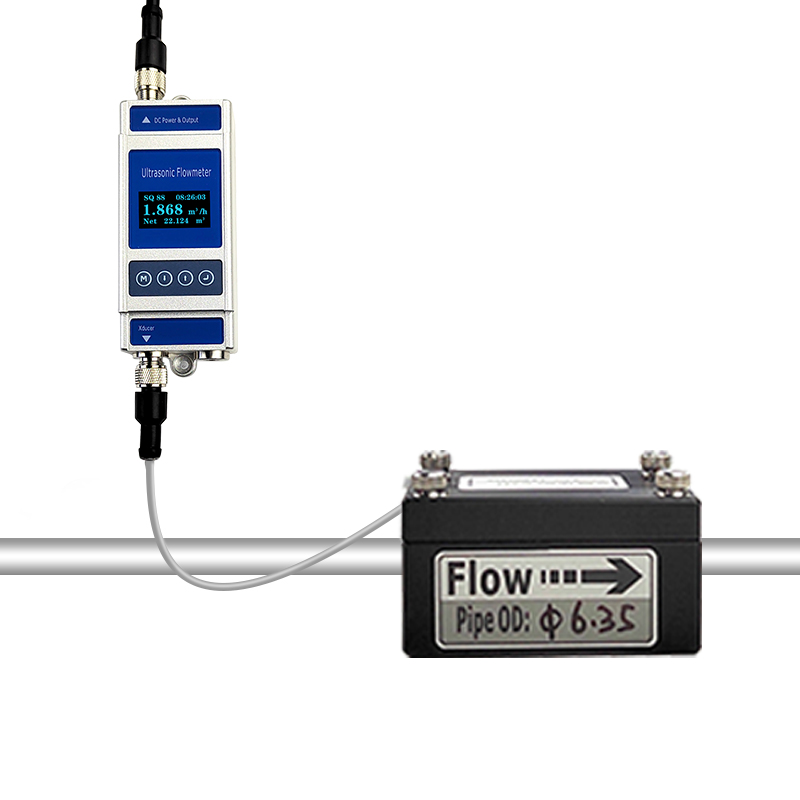

The clamp-type fixed ultrasonic flowmeter is a newly developed product of Wanziyi, with a wide range of applications, no need to break pipes, no need to stop production, real-time measurement, simple installation and operation, and reliable measurement performance. The product has two types: integrated and split. The model can be selected according to the working conditions. It can be mainly used in the cleaning equipment industry, food, medicine, printing and dyeing, chemical products, etc.

Characteristics

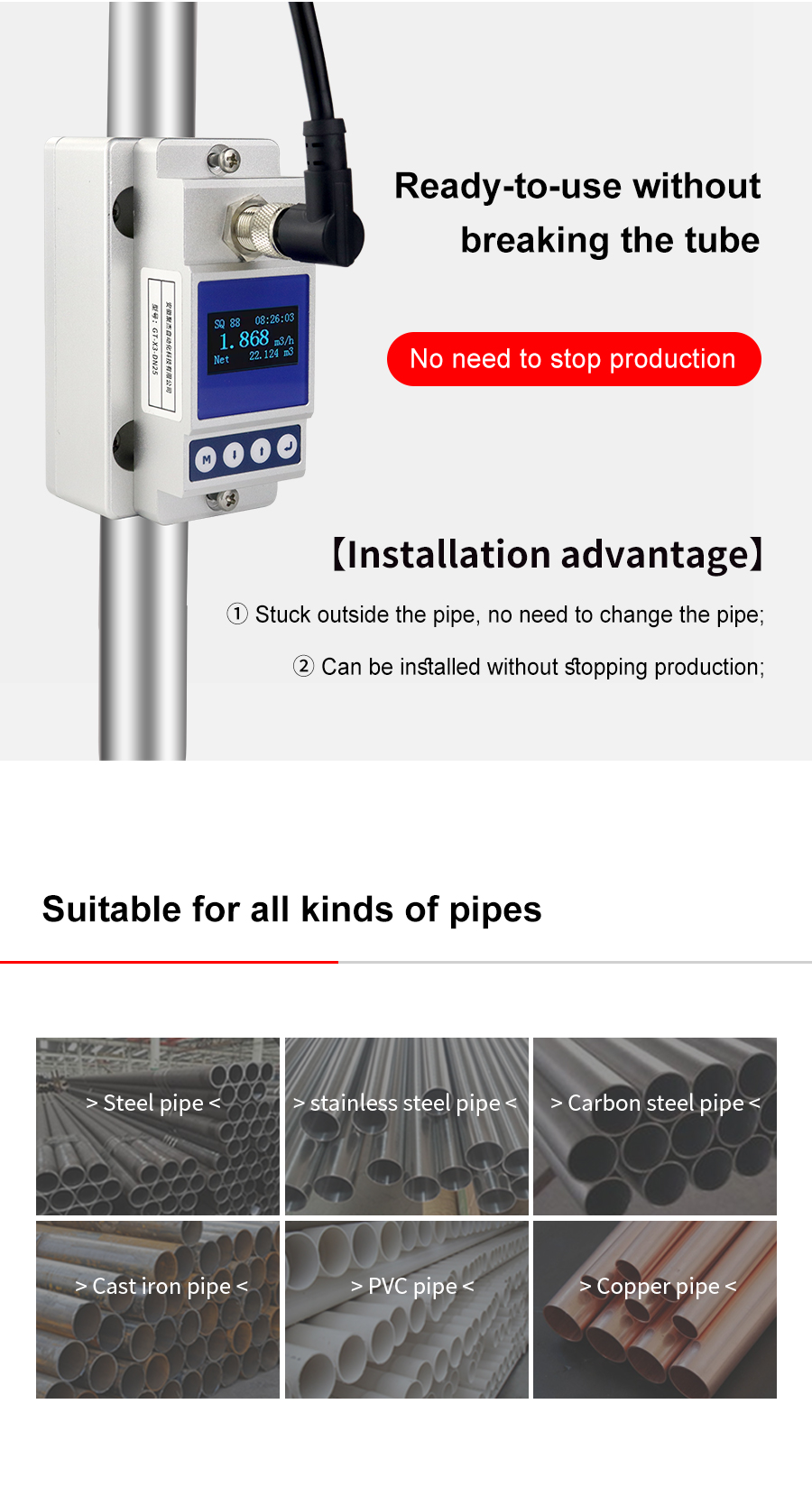

● No need to break the pipe, easy to install
● Small pipe diameter, small flow measurement
● Applicable to a variety of pipelines
Contact now
Technical support

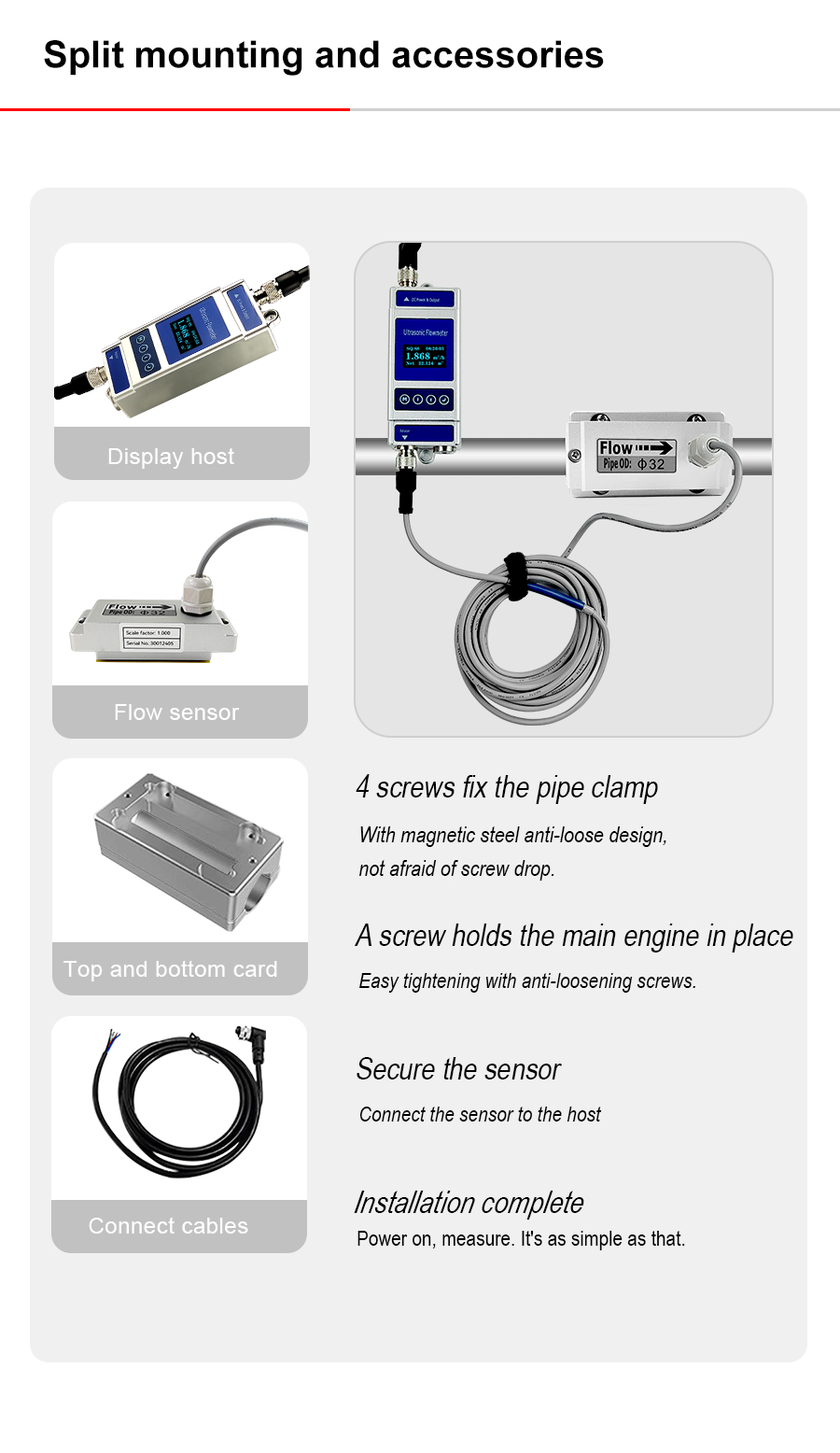

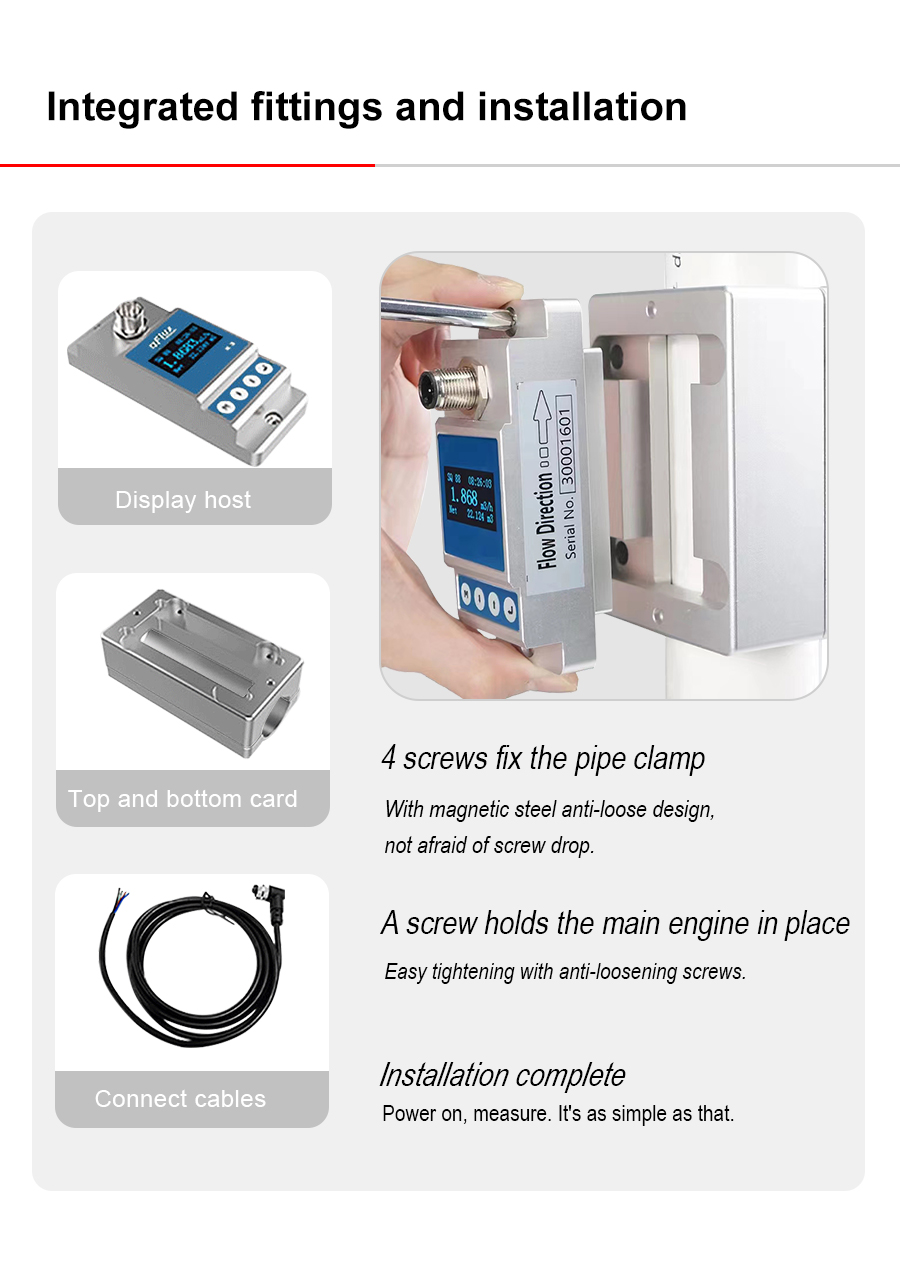

    It can measure small flow rates and is mainly used in chemical production processes, fine chemical production, cleaning industry, beverage industry, etc,in operation, parameter setting and modification are performed through four buttons. The structural design uses circular magnets to realize automatic snapping during installation, it only takes 2-3 minutes from installation to measurement.It uses an OLED display with backlight function.

    Accuracy

    ±2.0% (0.5m/s~5.0m/s)

    Repeatability

    0.8%

    Storage

    Can record daily, monthly annual traffic accumulation, the data can last for 10 years.

    Response

    0.5s~60s

    0utput

    4~20mA, Maximum load 6000

    Alarm

    OCT Output, high and low flow, cumulative pulse output (optional)

    Interface

    RS485,Support Modbus communication protocol

    Power

    24VDC，200mA

    Cable

    Standard 2.0 meters, can be extended to 20 meters

    Display

    OLED 128*64 ;Refresh rate 3.3Hz

    Unit

    cubic meters (m³), liters (L), US gallons (GAL), hourly/(hour)/(min), the default is m³/h

    Media

    Water, sea water, oil, chemicals, etc.

    Pipe

    Stainless steel, carbon steel, brass tube, plastic tube

    Shell

    Aluminum alloy

    Condition

    0°C-50°C, split type optional: 0°C~150°C; humidity 0~95%,

    Media temp

    0°C-50°C; Split type optional high temperature: 0°C~150°C

    Protect

    IP54
