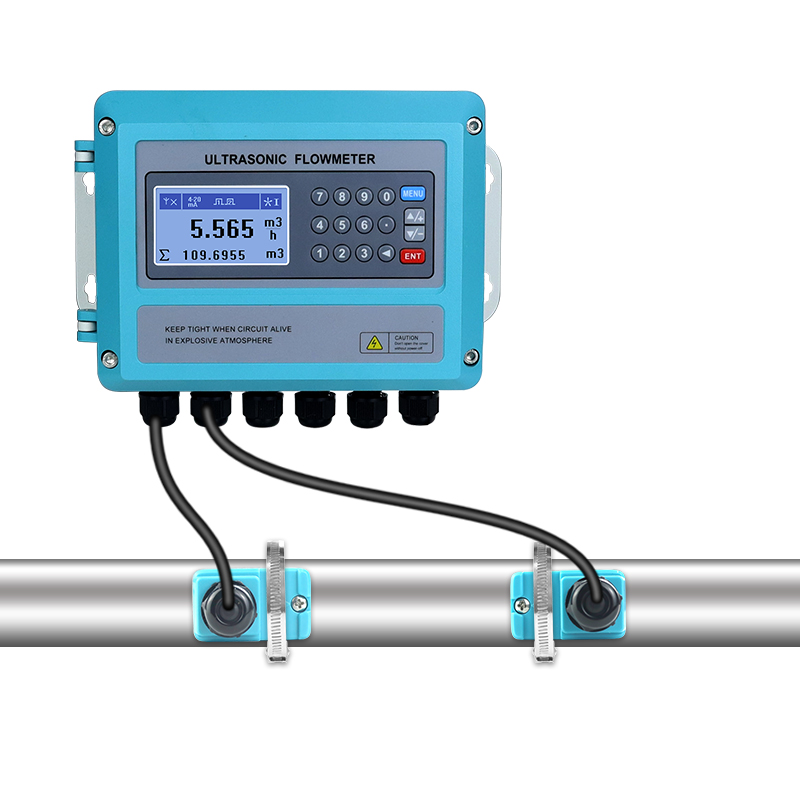

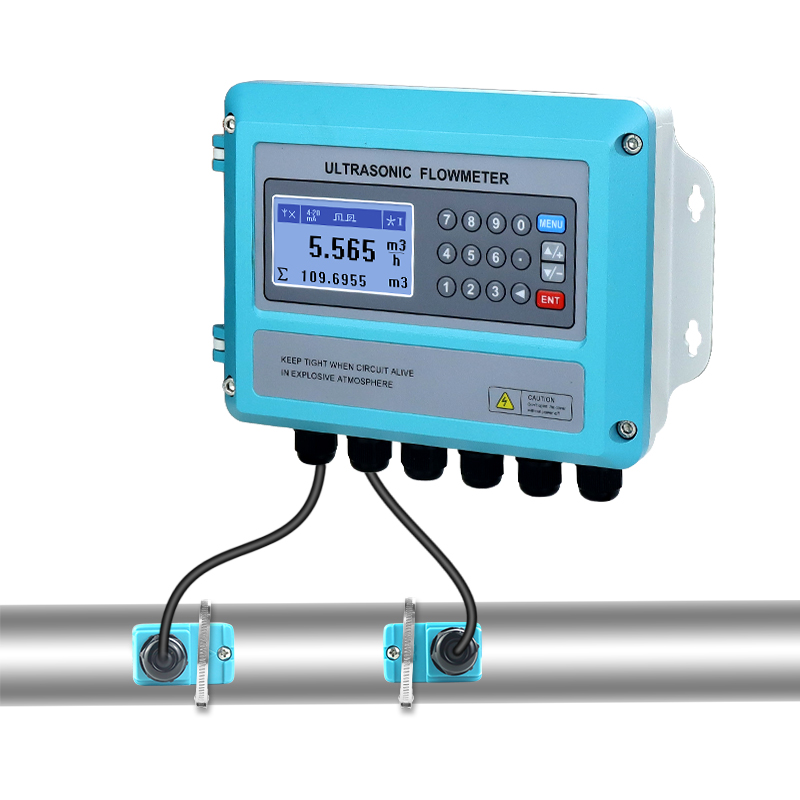

23 Ultrasonic flow meter

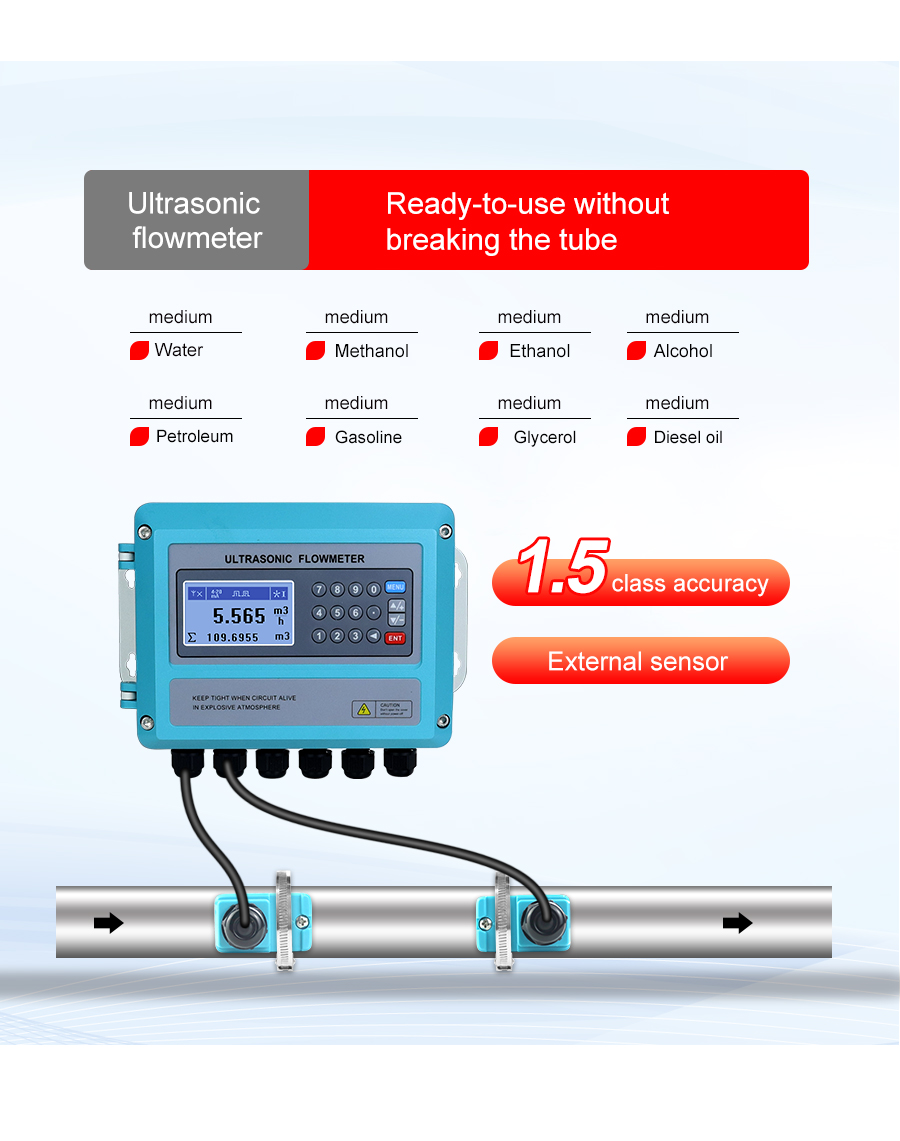

Ultrasonic flowmeters are suitable for flow measurement in pipelines of various sizes. The measuring medium is a single stable liquid such as water, seawater, sewage, alcohol, etc. The measuring material is uniform and dense pipelines such as steel, stainless steel, cast iron, PVC, and fiberglass.

Characteristics

● No need to break the pipe, easy to install
● Applicable to a variety of pipelines
● Applicable to pipeline measurement of DN15 and above
Contact now
Technical support

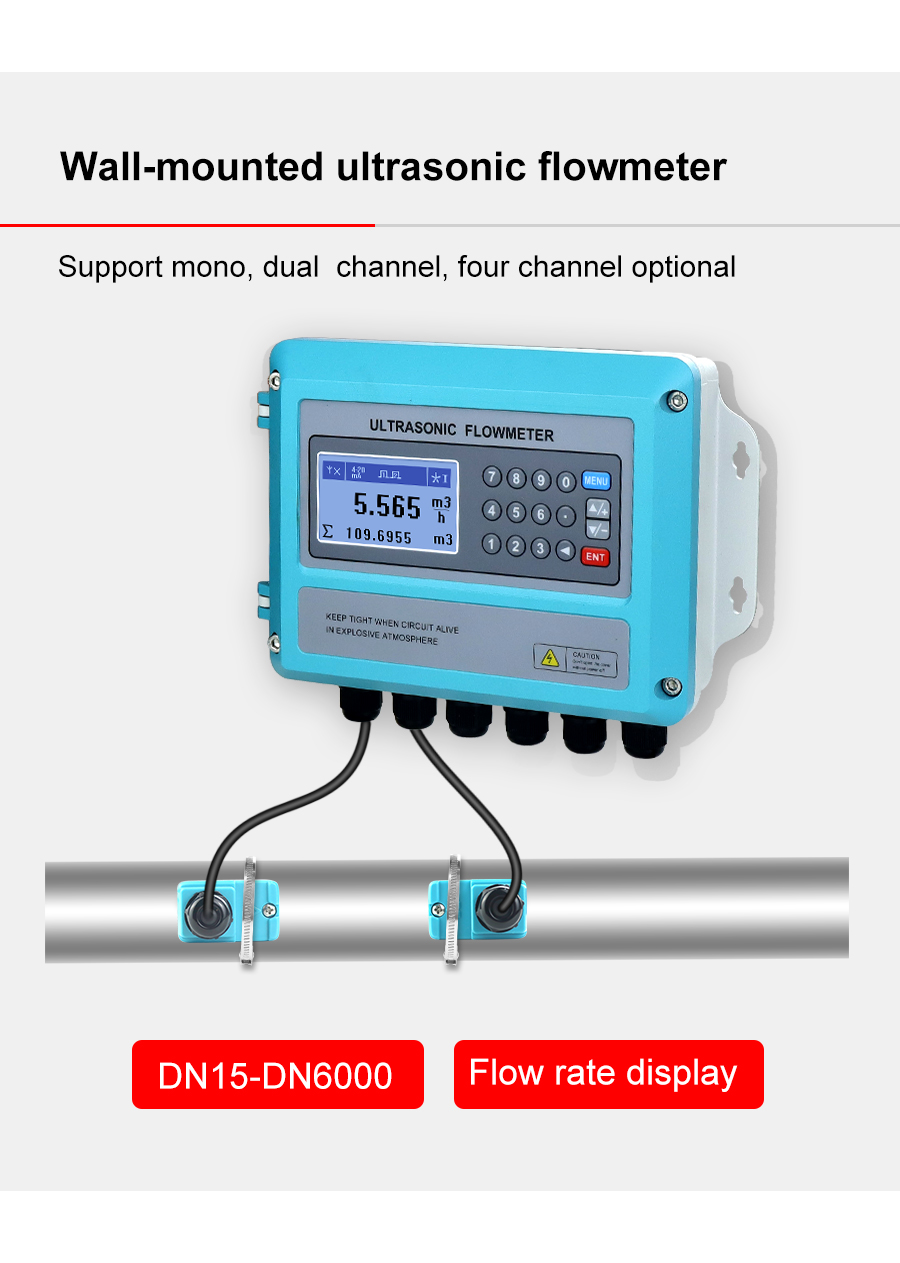

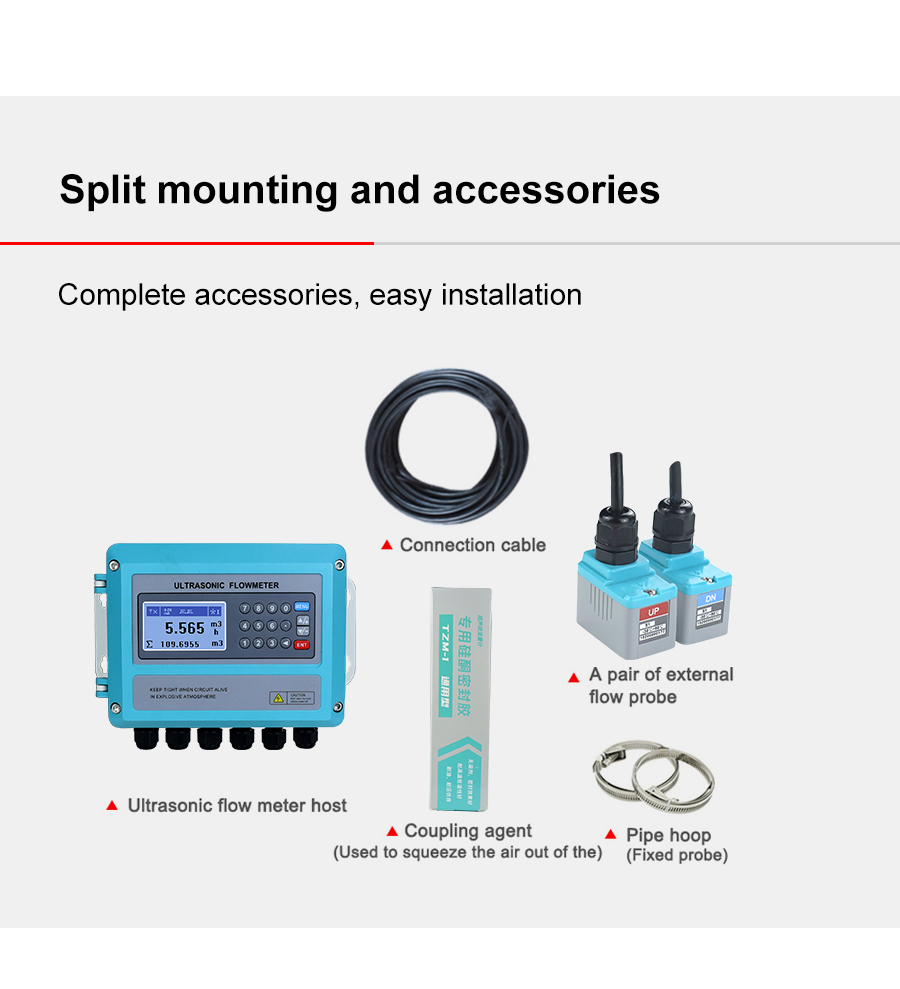

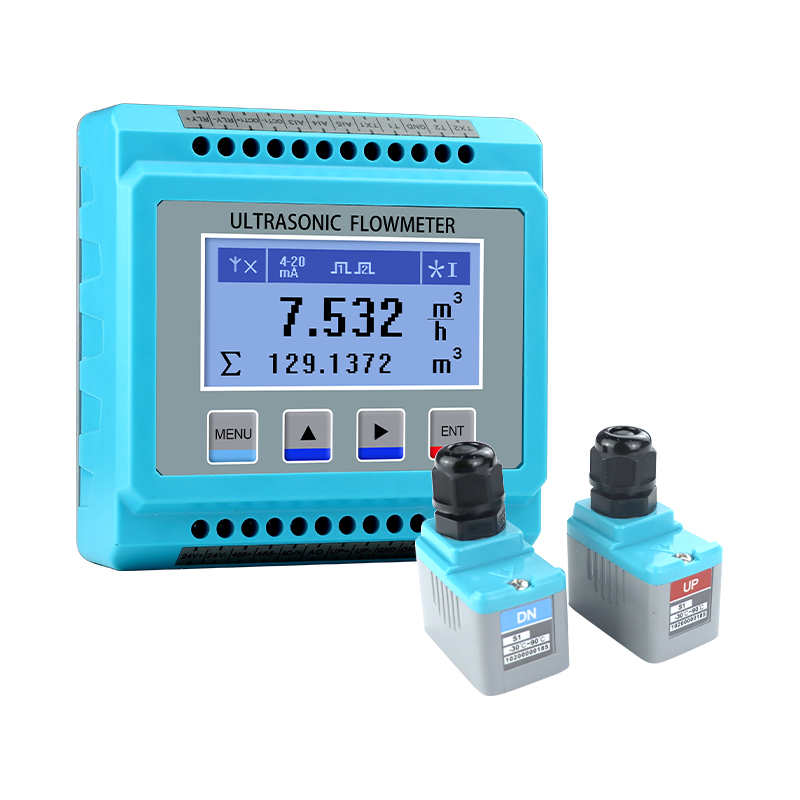

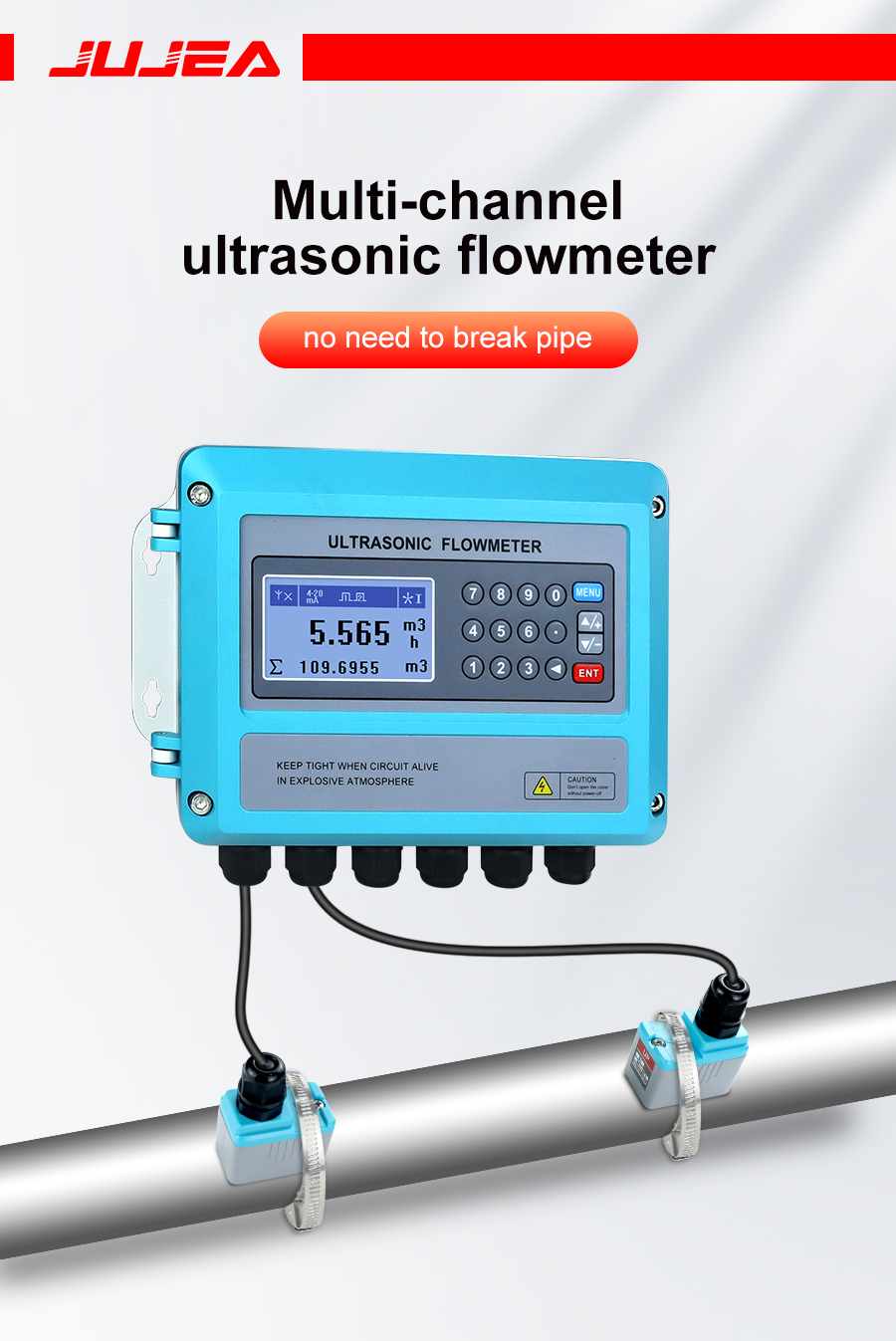

    The multi-channel ultrasonic flow meter is composed of a multi-channel sensor and a host. It is divided into integrated ultrasonic flow meter and split ultrasonic flow meter. Suitable for measuring pipes DN15 and above. The measuring medium is a single stable liquid such as water, seawater, sewage, alcohol, etc. The measuring material is uniform and dense pipelines such as steel, stainless steel, cast iron, PVC, and fiberglass.

    Measuring accuracy:

    1.5%;

    Repeatability:

    0.2%

    Pipeline:

    Applicable to pipelines of DN15 and above

    Flow rate range:

    DN200 and below (inclusive) 0.3~4m/s; DN200 and above 0.3~6m/s

    Power supply:

    24VDC; 220VAC

    Optional output:

    1 isolated RS485 output; 1 isolated 4-20mA

    Power consumption:

    Working current 50mA (under the condition that the keyboard is not connected and the buzzer does not sound);

    Optional input:

    Three 4-20mA analog input loops;

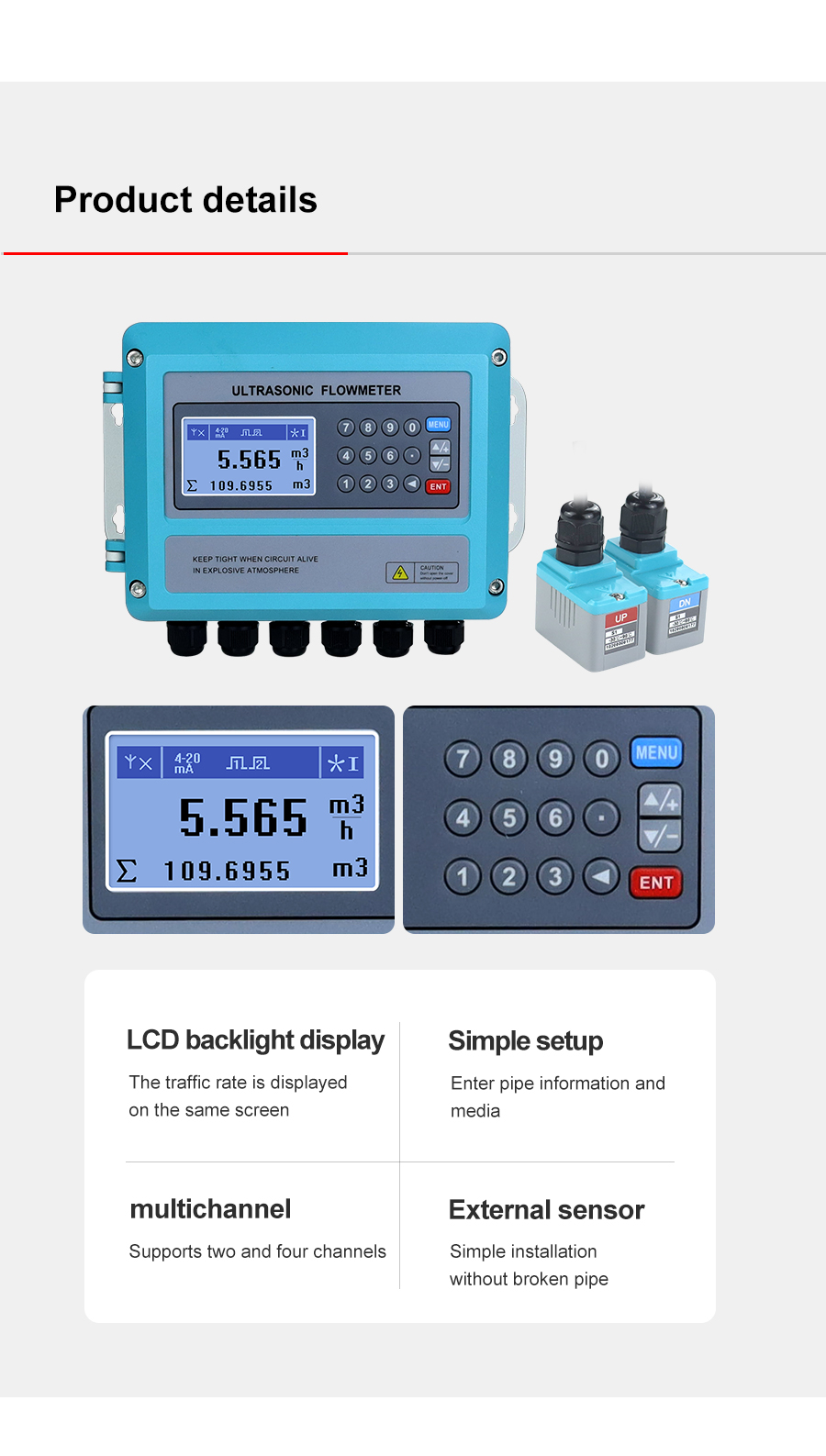

    Display:

    2x10 Chinese character backlight display (Chinese and English bilingual optional);

    Operation:

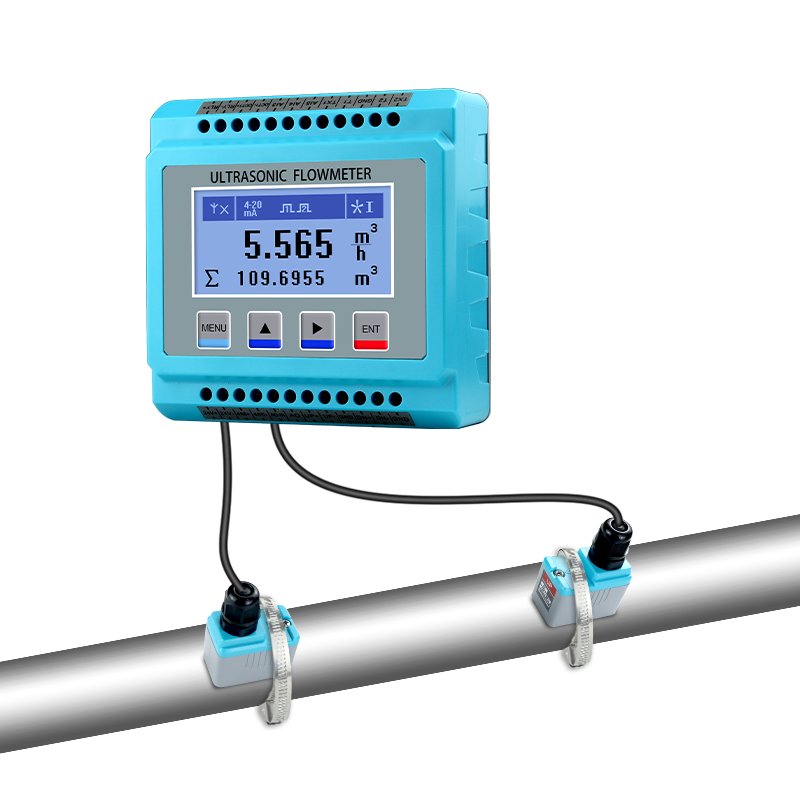

    16-button or 4-button window operation;

    Sensor:

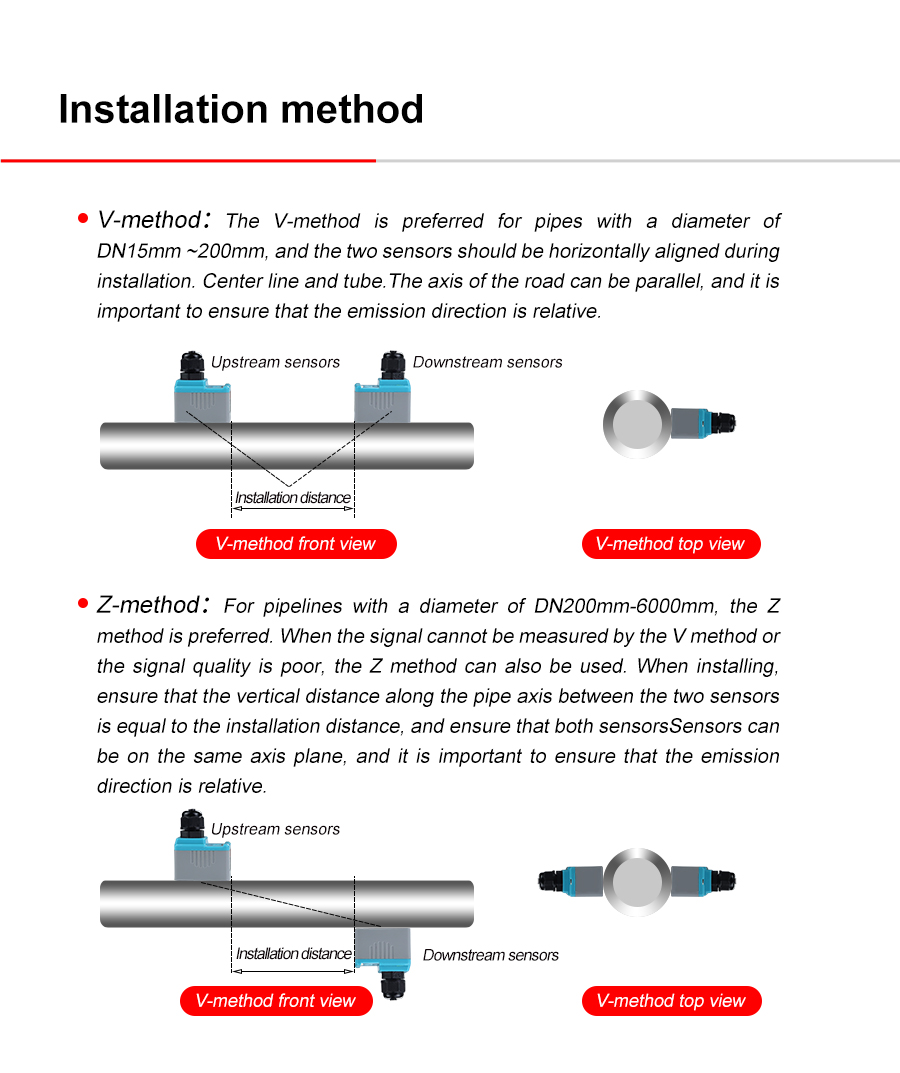

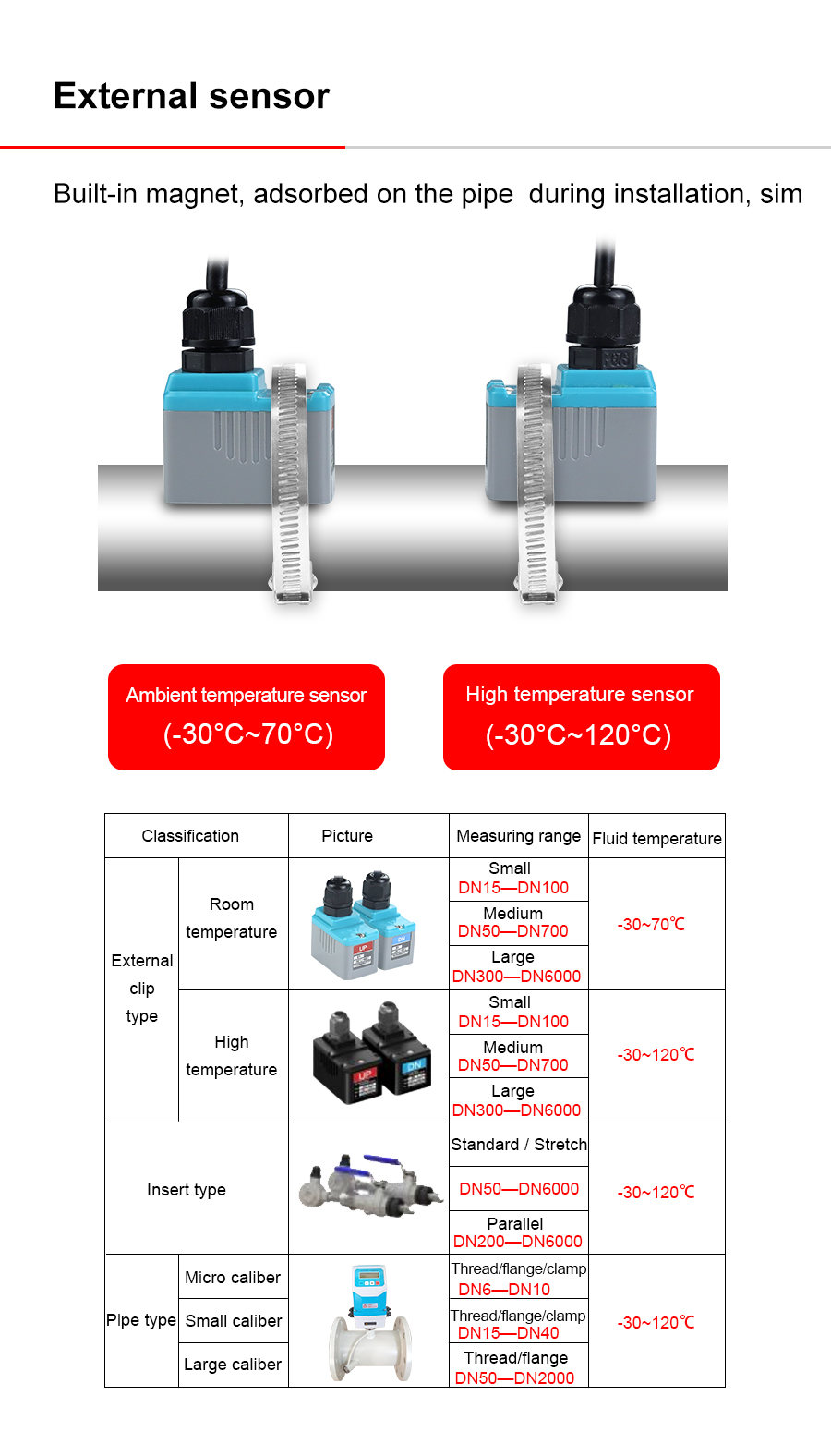

    External clamp, plug-in and pipe section type;
