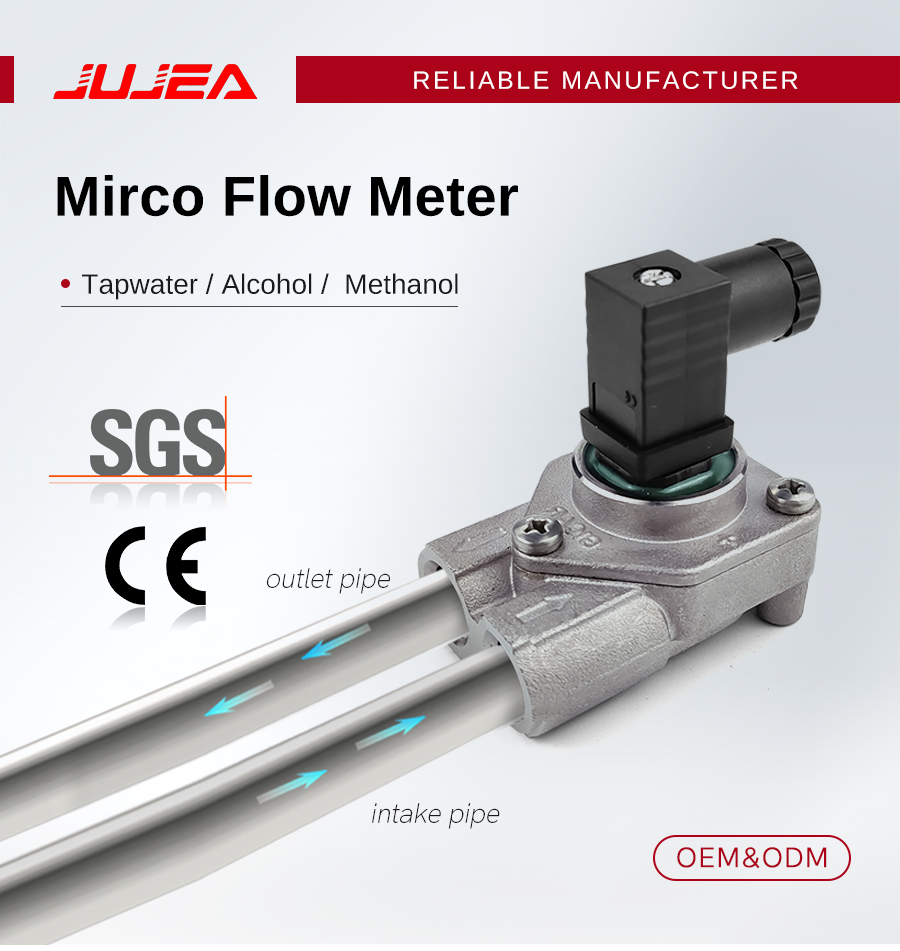

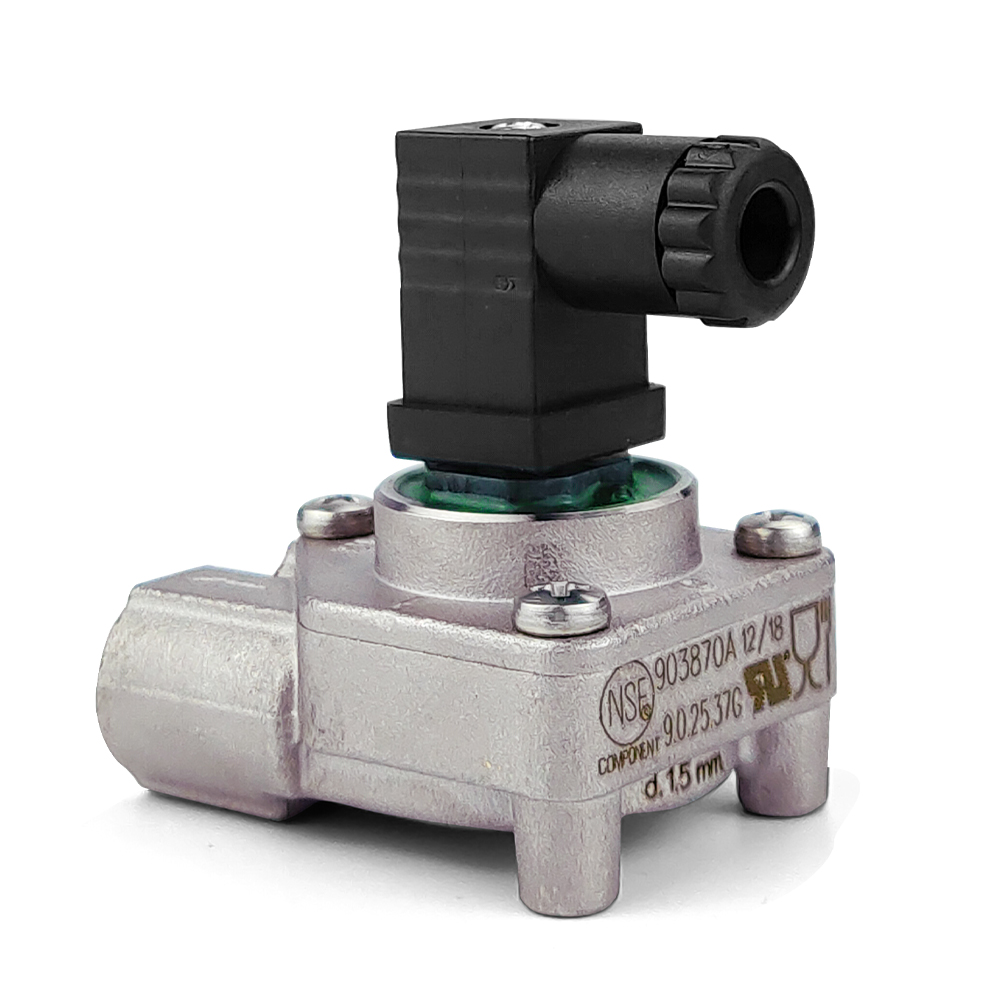

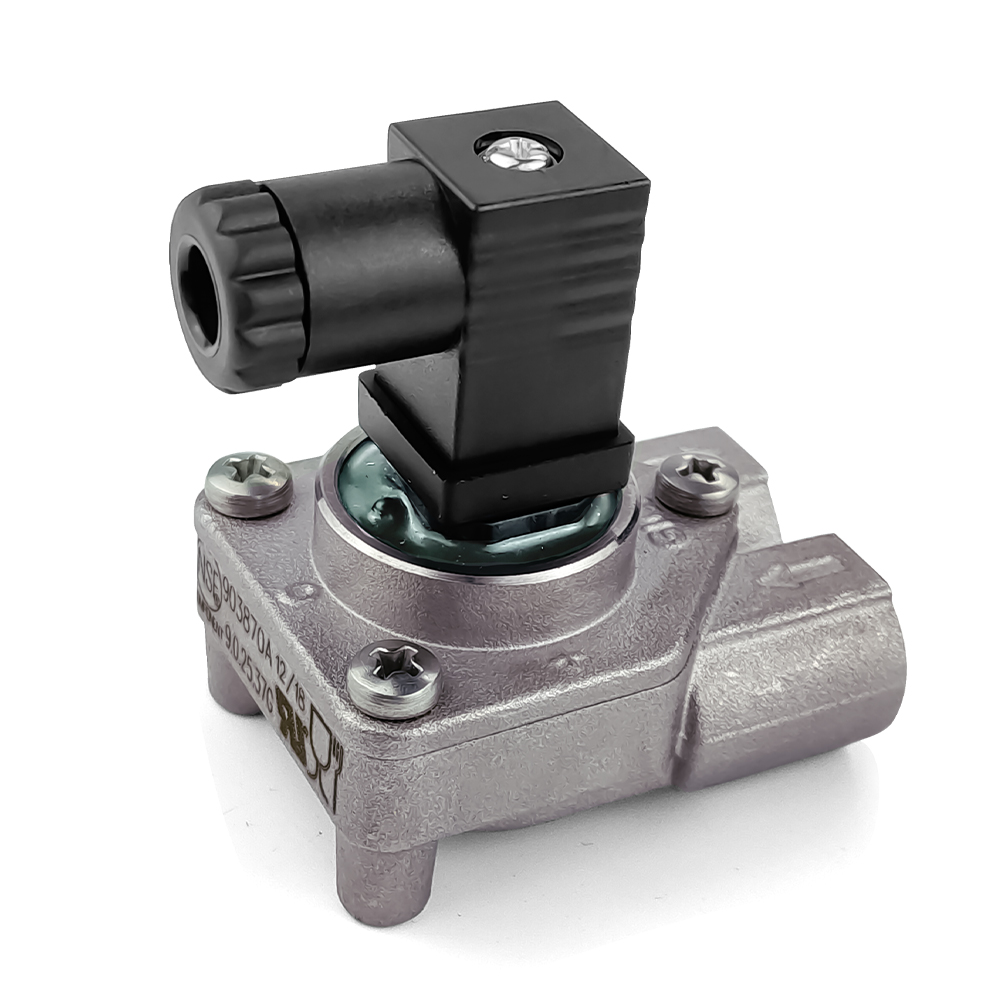

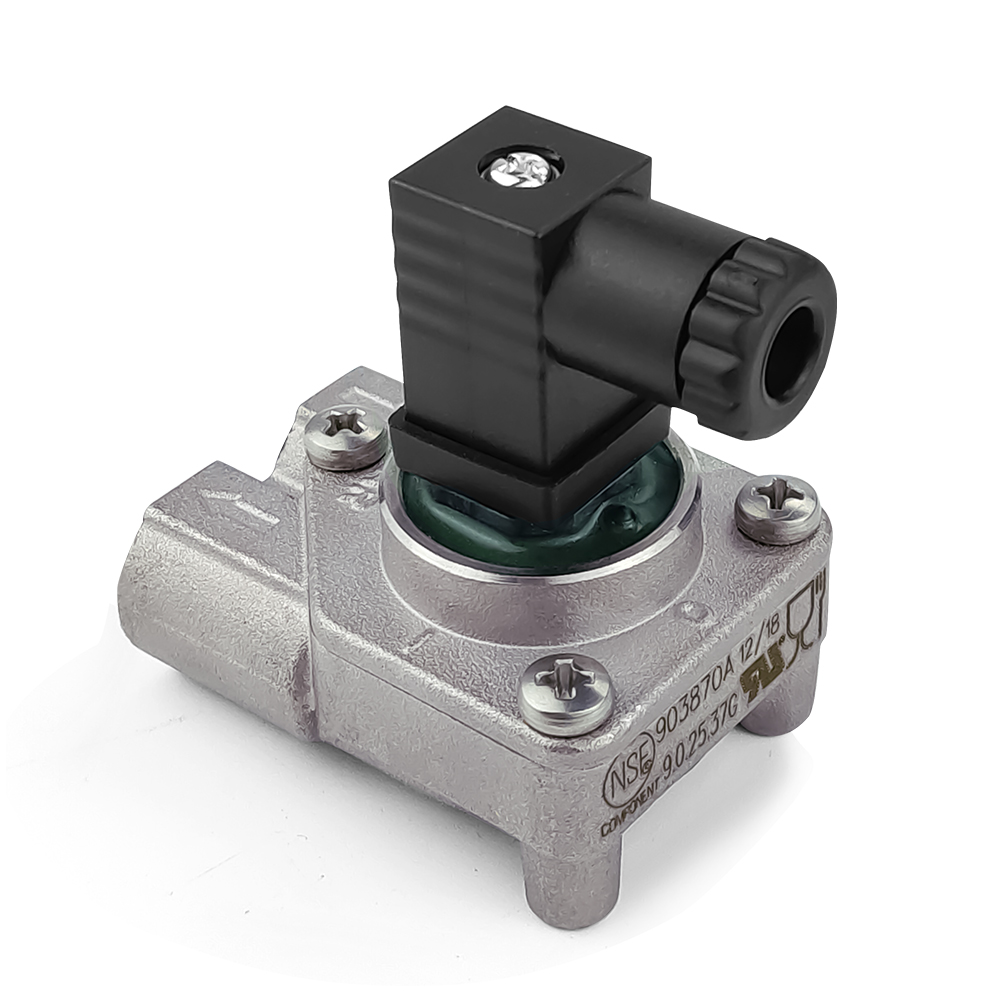

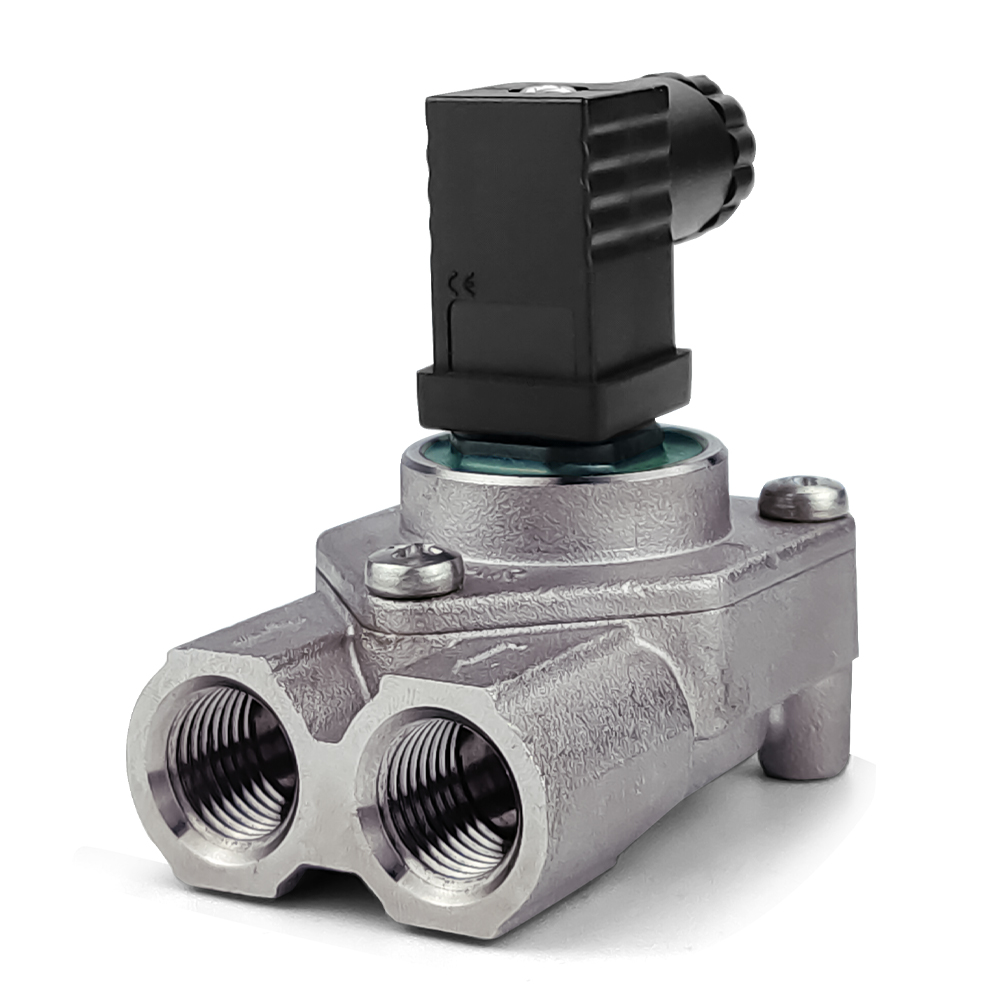

Micro-flowmeter

GICAR series micro-flow meter is a kind of special flowmeter specially designed to measure micro-flow using turbine principle. It has extremely high precision, especially under high temperature and high pressure conditions.Due to the clever structural design, no precipitation will be formed when working, so the work of the meter is "clean".Therefore, even the most demanding requirements, such as the etchant used in the production of semiconductor integrated circuits and chips, are extremely resistant to corrosion, and even if a very small particle falls, the chip will become waste, these GICAR products can meet. The series of flowmeters are widely used for measuring, regulating and distributing liquids, including industrial, chemical, petroleum and commercial coffee machines.When used in the food hygiene industry, the products are certified by the national food safety administration (NSF).

Characteristics

● No impurities, non-corrosive small flow measurement
● Compact structure and easy to install
● Herschmann meter head, waterproof and durable
● Good repeatability and wide application
    The GICAR series micro-flow flowmeter adopts the turbine design principle to measure micro-flow with extremely high accuracy. The interior of the valve body is smooth, and etchants are used in circuit and chip production, making it extremely corrosion-resistant. This flow meter has a wide range of uses: it can be used to measure, regulate, and distribute liquids, including industrial, chemical, petroleum, and commercial coffee machines, etc.lt has (NSF) verification.

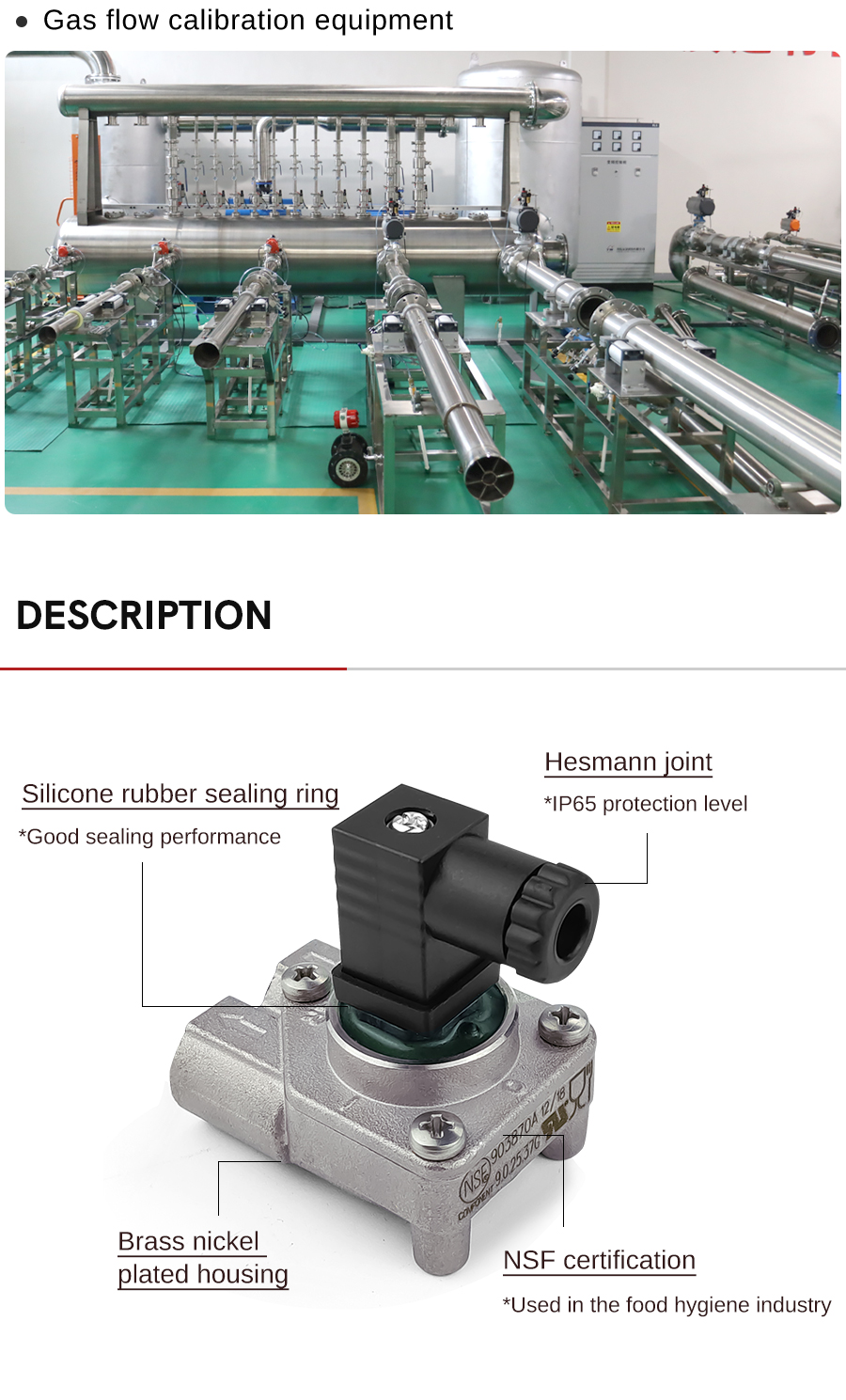

    Material

    Shell: brass/plastic Bearing: INOX18/8(1.4305) stainless steel

    Impeller: PVDF(Polyvinylidene fluoride) Magnet: SrFeO ceramic

    Seal

    MVQ(Silicone rubber "o" ring)

    Temp

    -10°C~+100°C

    Accuracy

    2%

    Repeatability

    0.20%

    Pressure

    0.2MPa≤Pressure≤2MPa

    Installation

    Horizontal installation

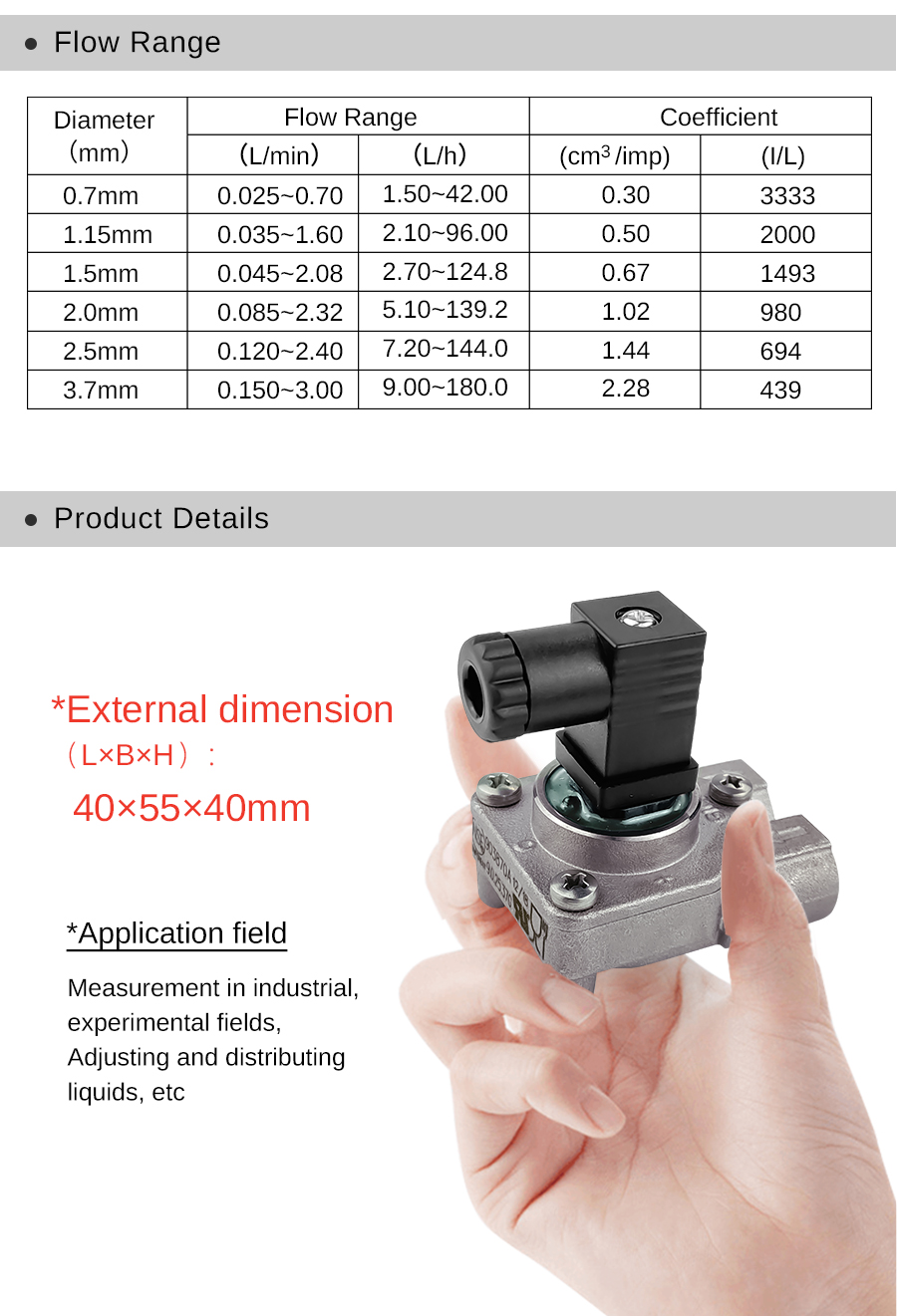

    Size

    40X55X40mm

    Connection

    MPM Connector

    Power

    4.5~24VDC

    Output

    Open collector

    Voltage output

    25VDC

    Current output

    25mA

    Thread

    G1/4 Internal thread
