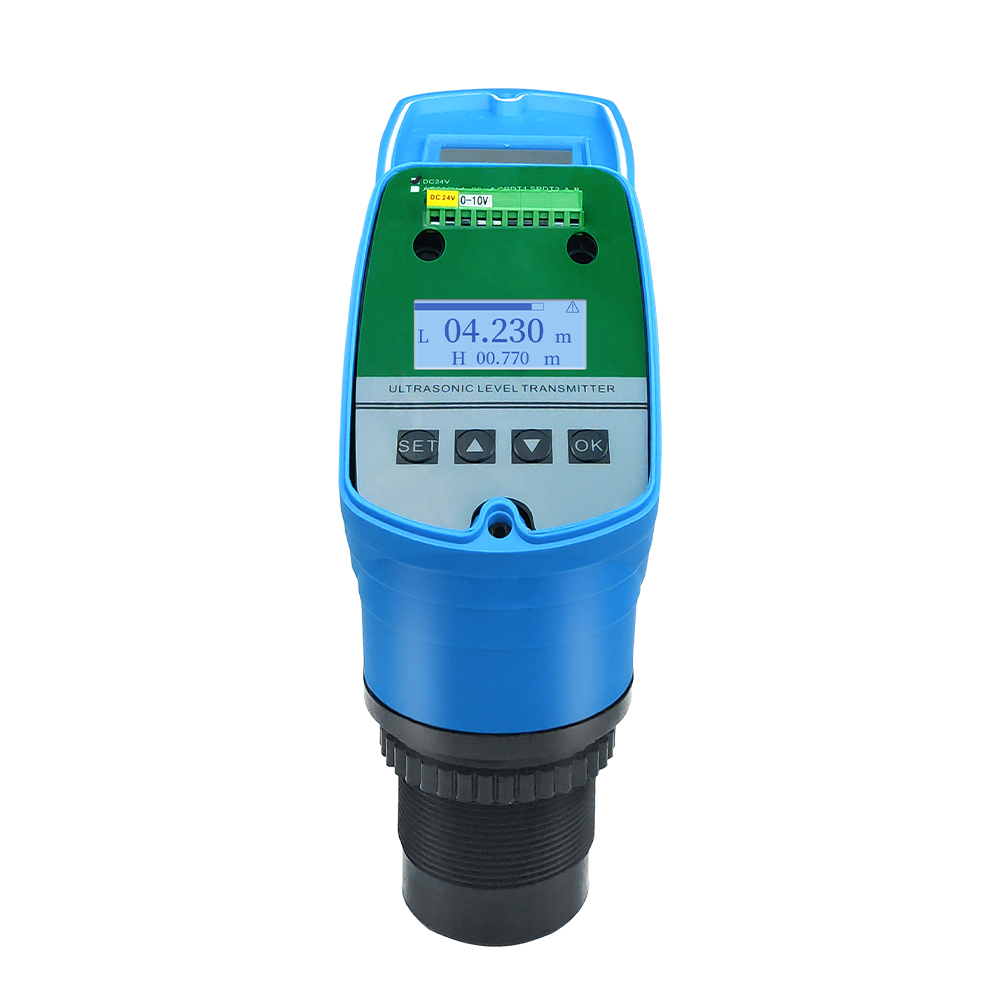

Ultrasonic level gauge

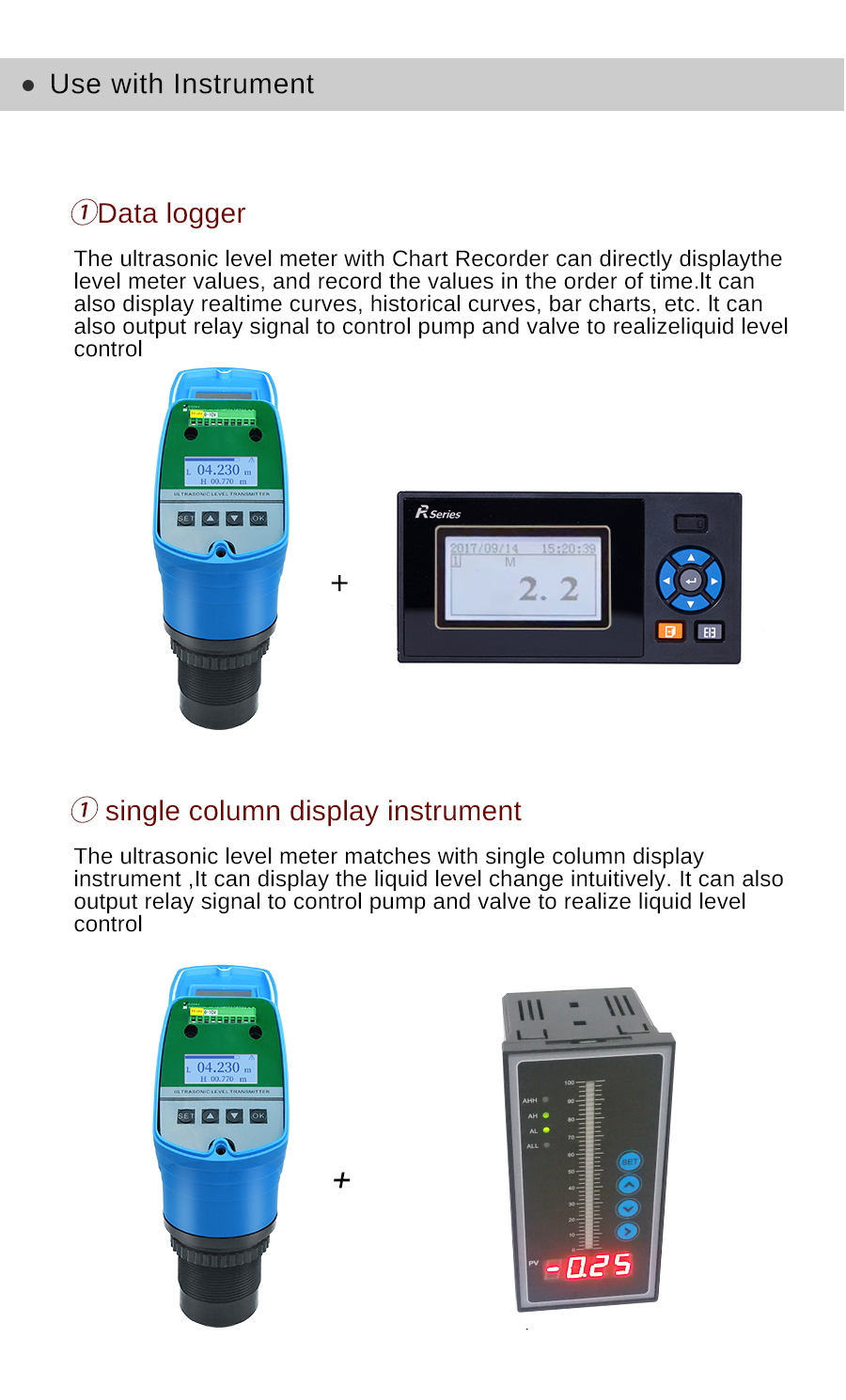

This meter contains many professional technologies, it is safe, clean, high precision, long life, stable and reliable, easy to install and maintain, suitable for acid, alkali, salt, corrosion protection, high temperature and other fields. This instrument can be connected to the display table or various DCS systems through 4-20mA or RS485(Modbus protocol or other customized protocols), providing real-time liquid level data for industrial automation.

Characteristics

● Non-contact measurement

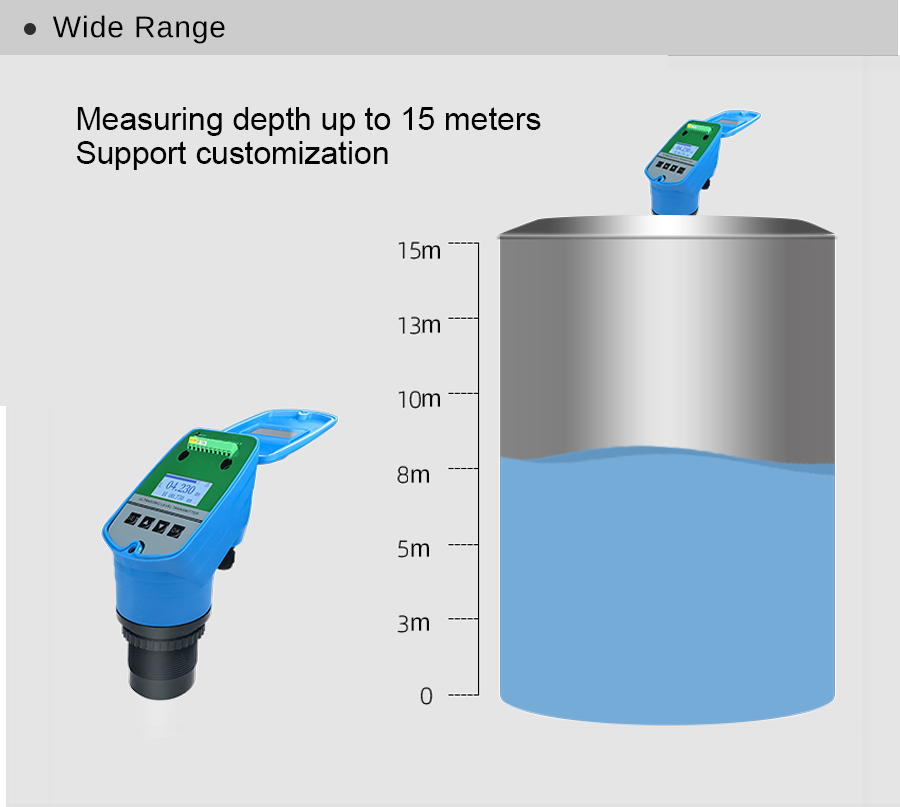

● 0-15m measurement range
● Shockproof protection, sealing protection
● Used in acid, alkali, salt, high temperature and other fields
Contact now
Technical support
Download

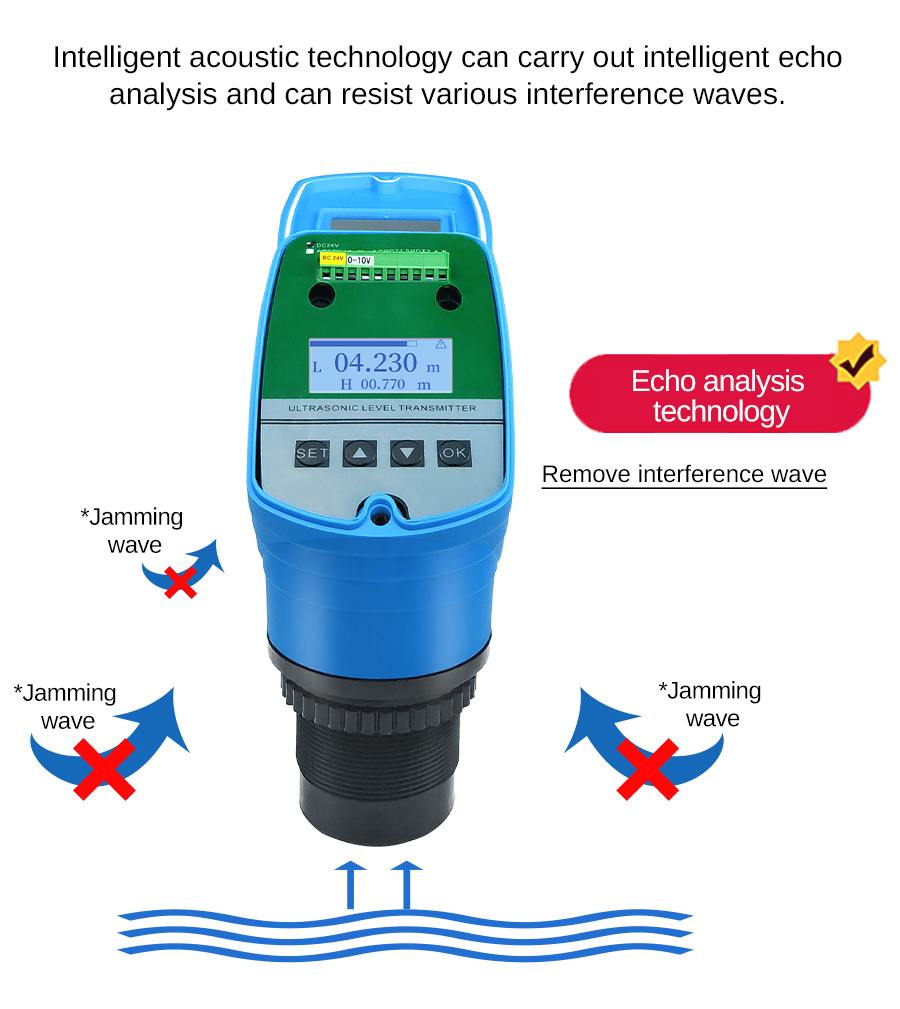

    Ultrasonic liquid level gauge has the characteristics of safety, cleanliness, high precision, long life,stability and reliability, easy installation and maintenance, etc. It is suitable for various fields such as acid.alkali, salt, anti-corrosion, high temperature, etc. lt can be connected to display meters, PLC and various DCS systems through 4-20mA. Sonic intelligent technology can perform intelligent echo analysis without any debugging or other special steps. This technology has the functions of dynamic thinking and dynamic analysis, which greatly improves the accuracy of the instrument. The liquid level accuracy reaches +0.25%, and it can withstand various lnterference waves. Non-contact instruments do not come into direct contact with liquid, so the failure rate is low. The instrument provides a variety of installation methods, and users can calibrate the instrument themselves. All input and output lines of the instrument are protected against lightning and short circuit.

    Range

    0-15m (20m can be customized)

    Blind area

    0.35m~0.6m

    Accuracy

    0.5%

    Resolution

    1mm

    Output

    4-wire 4~20mA/500Qload 2-wire 420mA/250Q

    Powered

    12124VDC optional 220V

    Output

    RS485(modbus protocol)

    Protection

    P65

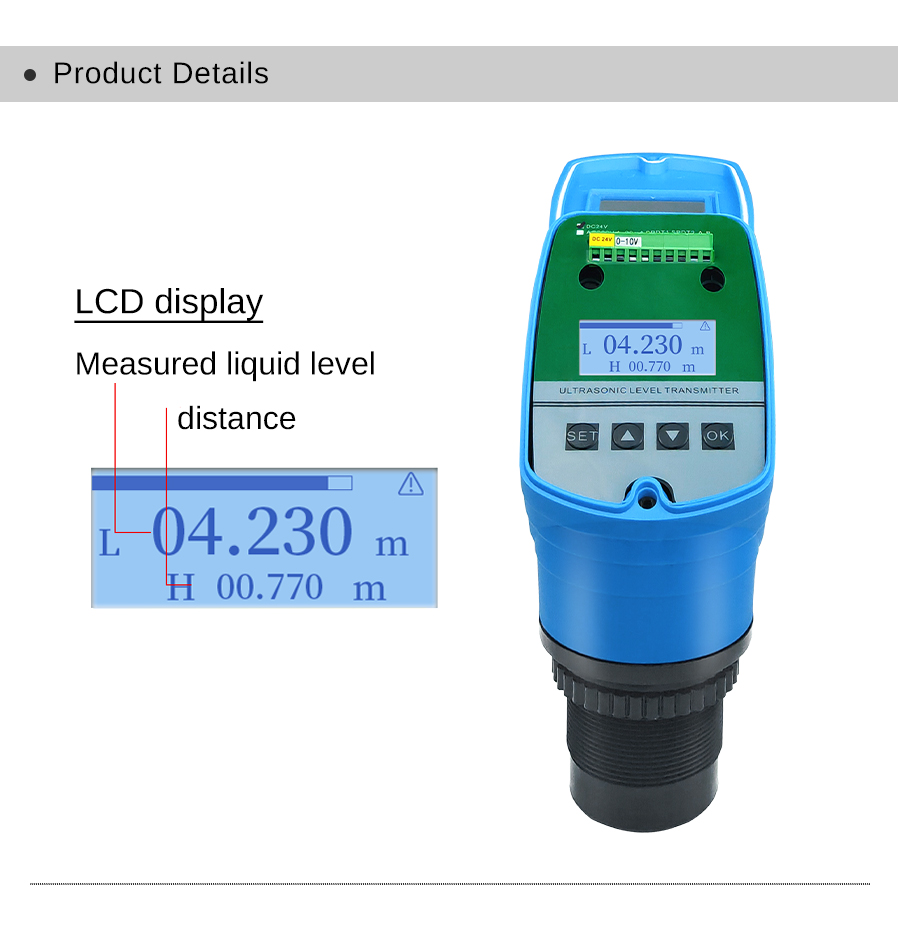

    Show

    LCD display

    Range

    0-15m (20m can be customized)
